H
-51-
ybrid Vehicle (HV) Battery Assembly (2012 Model)
The Prius Plug-in hybrid features a large capacity high voltage Hybrid
Vehicle (HV) battery assembly that contains newly developed sealed
Lithium-ion (Li-ion) battery cells.
HV Battery Assembly
• The HV battery assembly is enclosed in a metal case and is rigidly mounted
in the lower part of the cargo area behind the rear seat. The metal case is
isolated from high voltage and concealed by a carpeted panel in the cabin
area.
• The HV battery assembly consists of 3.7 Volt Li-ion battery cells connected
in series-parallel circuit to produce approximately 207.2 Volts. Each Li-ion
battery cell is non-spillable and contained in a sealed metal case.
• The electrolyte used in the Li-ion battery cells is a flammable organic
electrolyte. The electrolyte is absorbed into the battery cell separator and
will not normally leak, even in a collision.
Components Powered by the HV Battery Assembly
HV Battery Assembly Recovery
• If recovery of the HV battery assembly is necessary, please contact:
United States: (800) 331-4331
Canada: (888) TOYOTA 8 [(888) 869-6828]

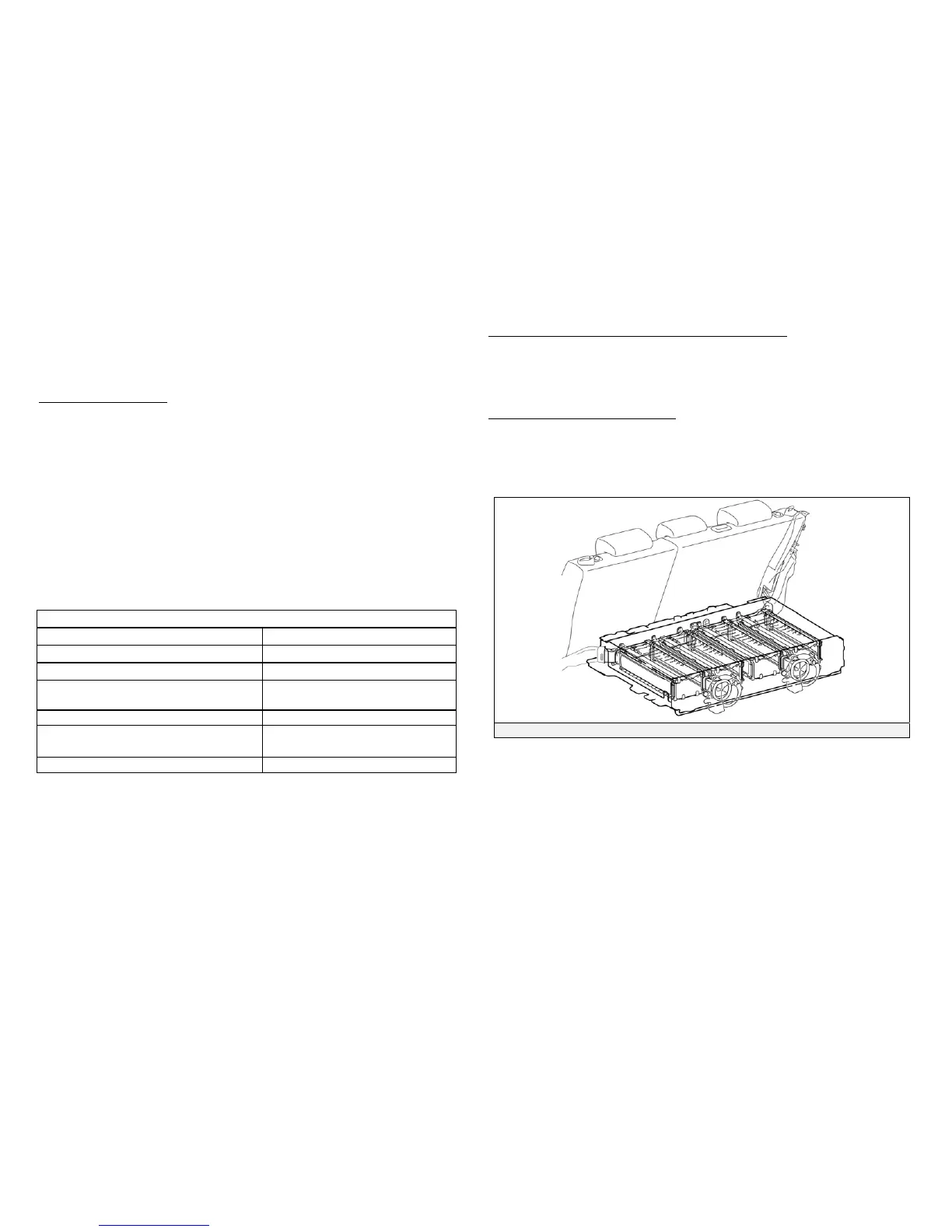

HV Battery Assembly
HV Battery Assembly
Battery assembly voltage
207.2 V
Number of Li-ion battery cells in the battery
56 cells
Li-ion battery cell voltage
3.7 V
Li-ion battery cell dimensions
4.13 x 5.83 x 1.04 in.
(105 x 148 x 27 mm)
Li-ion cell weight
1.60 lbs (726 g)
Li-ion battery assembly dimensions
29.4 x 37.3 x 6.9 in.
(747 x 948 x 176 mm)
Li-ion battery assembly weight
168 lbs (76 kg)
