-23-

RS Airbags & Seat Belt Pretensioners (2010 Model -

Continued)

NOTE:

The front seatback mounted side airbags and the side curtain airbags may

deploy independently of each other.

The knee airbag deploy simultaneously with the frontal airbags.

The Prius Plug-in hybrid is equipped with a standard front passenger

occupant classification system that may prohibit the deployment of the

front passenger frontal airbag and seat belt pretensioners. If the passenger

occupant classification system prohibits deployment during an SRS event,

the passenger SRS will not re-arm nor deploy.

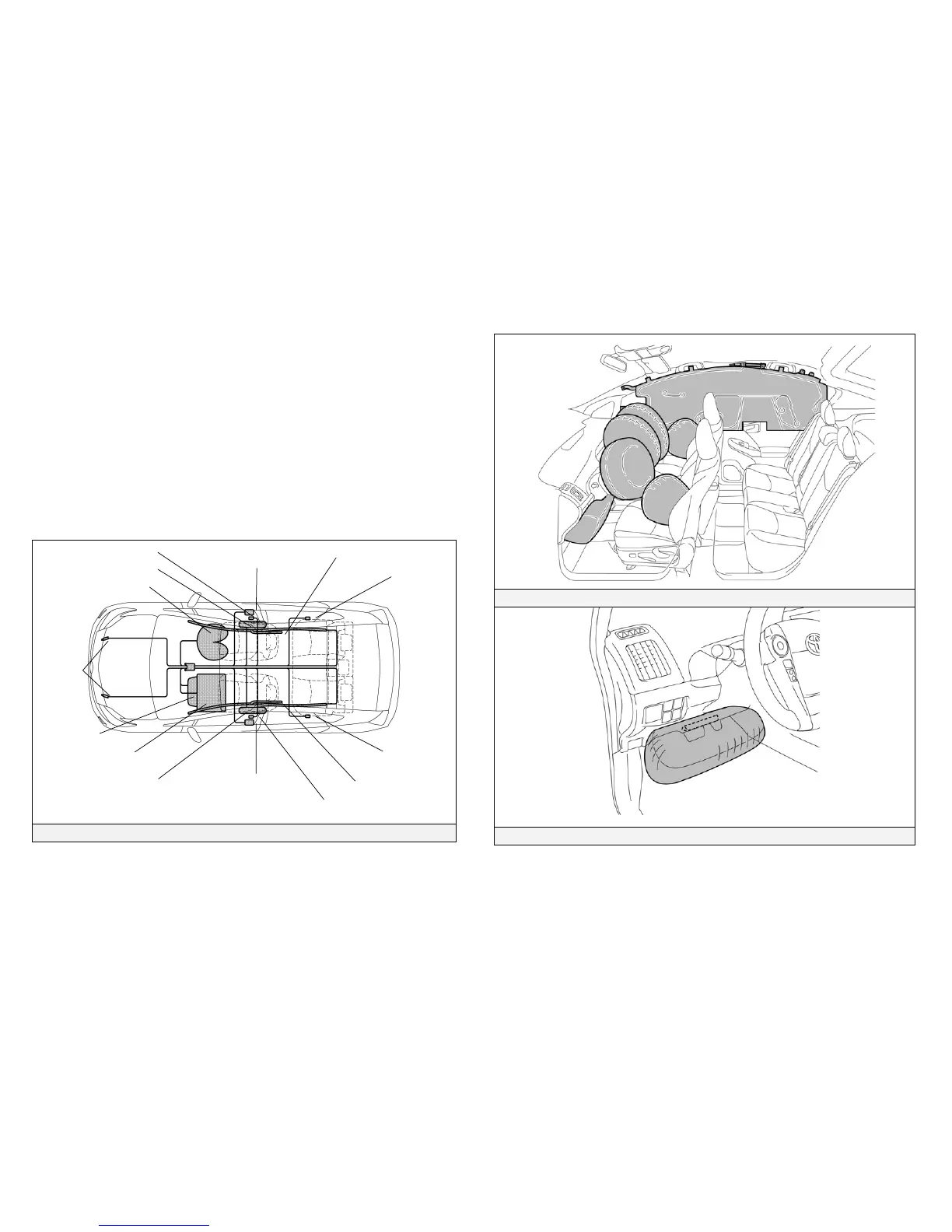

SRS System Diagram

Frontal, Knee, Front Seatback Mounted Side, Side Curtain Airbags

Driver Knee Airbag and Inflator

Front Airbag

Sensors

Knee Airbag

Passenger Frontal Airbag

Front Seat Side Airbag

Side Airbag Sensor

Front Seat Side Airbag

Driver Frontal Airbag

Front Seat Belt

Pretensioner

Side Curtain Airbag

Rear Side

Airbag Sensor
