TP-Link Archer AX73 User Manual

102
Chapter 15
Customize Your Network Settings

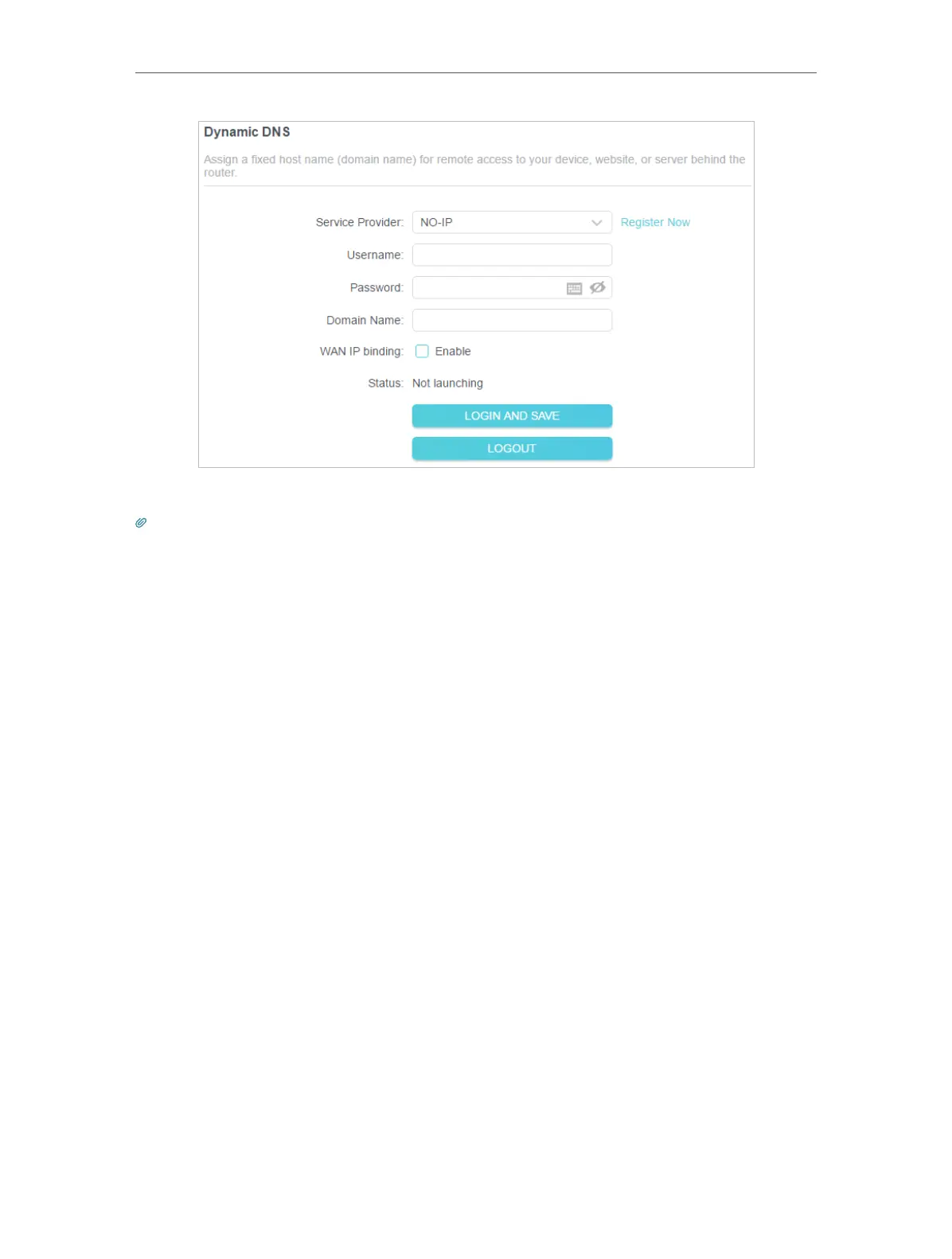

5. Click LOGIN AND SAVE.
Tips: If you want to use a new DDNS account, please click Logout first, and then log in with a new account.
15. 6. Create Static Routes
Static routing is a form of routing that is configured manually by a network administrator
or a user by adding entries into a routing table. The manually-configured routing
information guides the router in forwarding data packets to the specific destination.
I want to:
Visit multiple networks and servers at the same time.
For example, in a small office, my PC can surf the internet through Router A, but I also
want to visit my company’s network. Now I have a switch and Router B. I connect the
devices as shown in the following figure so that the physical connection between my
PC and my company’s server is established. To surf the internet and visit my company’s
network at the same time, I need to configure the static routing.

TP-Link Archer AX73 Specifications

General

Modulation	1024-QAM, OFDM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	5400 Mbit/s
WLAN data transfer rate (first band)	4804 Mbit/s
WLAN data transfer rate (second band)	574 Mbit/s
MU-MIMO technology	Yes
Memory card slot(s)	-
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	6
Processor cores	3
Processor frequency	1500 MHz
SIM card slot	No
WAN connection type	RJ-45
Product type	Portable router
Product color	Black
Output current	2.5 A
Output voltage	12 V
Power source type	DC
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Supported network protocols	IPv4, IPv6
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990
Sustainability certificates	RoHS, Federal Communications Commission (FCC), CE
Package depth	265 mm
Package width	415 mm
Package height	90 mm
Package weight	1490 g

Weight and Dimensions

Depth	147.2 mm
Width	272.5 mm
Height	49.2 mm
