TP-Link Archer AX73 User Manual

32
Chapter 7
Wireless Settings
7. 1. Specify Wireless Settings
The router’s wireless network name (SSID) and password, and security option are preset
in the factory. The preset SSID and password can be found on the label of the router.
You can customize the wireless settings according to your needs.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.

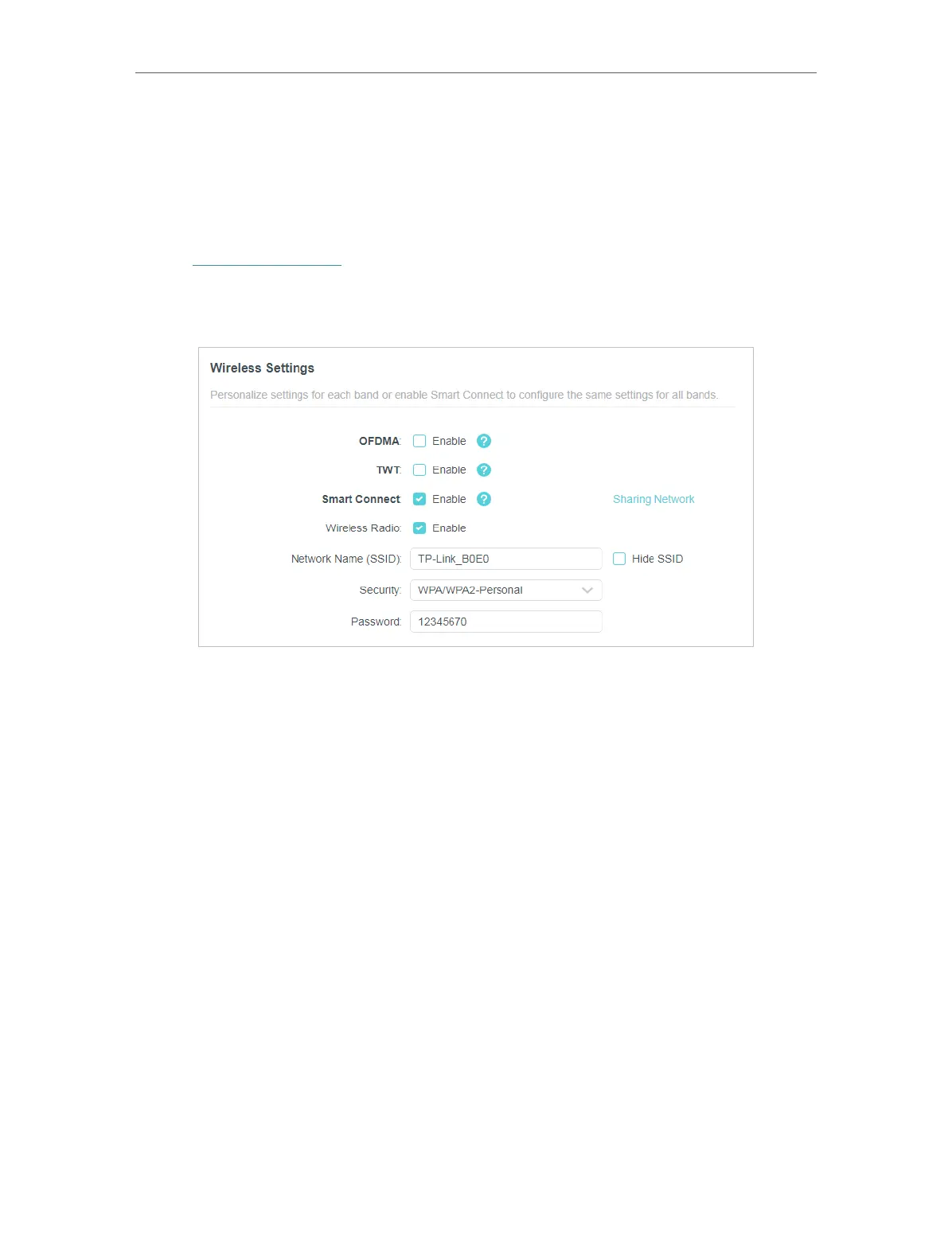

2. Go to Wireless or Advanced > Wireless > Wireless Settings.
• To enable or disable OFDMA:
OFDMA enables multiple users to transmit data simultaneously, and thus greatly
improves speed and efficiency. Noted that only when your clients also support OFDMA,
can you fully enjoy the benefits. It is disabled by default.
1. Go to Advanced > Wireless > Wireless Settings.
2. Enable OFDMA.
• To enable or disable TWT:
TWT (Target Wake Time) allows 802.11ax routers and clients to negotiate their periods
to transmit and receive data packets. Clients only wake up at TWT sessions and remain
in sleep mode for the rest of the time, which significantly extend their battery life. It is
disabled by default.
1. Go to Advanced > Wireless > Wireless Settings.
2. Enable TWT.
• To use the Smart Connect function:
The Smart Connect function lets you enjoy a more high-speed network by assigning
your devices to best wireless bands based on actual conditions to balance network
demands.

TP-Link Archer AX73 Specifications

General

Modulation	1024-QAM, OFDM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	5400 Mbit/s
WLAN data transfer rate (first band)	4804 Mbit/s
WLAN data transfer rate (second band)	574 Mbit/s
MU-MIMO technology	Yes
Memory card slot(s)	-
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	6
Processor cores	3
Processor frequency	1500 MHz
SIM card slot	No
WAN connection type	RJ-45
Product type	Portable router
Product color	Black
Output current	2.5 A
Output voltage	12 V
Power source type	DC
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Supported network protocols	IPv4, IPv6
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990
Sustainability certificates	RoHS, Federal Communications Commission (FCC), CE
Package depth	265 mm
Package width	415 mm
Package height	90 mm
Package weight	1490 g

Weight and Dimensions

Depth	147.2 mm
Width	272.5 mm
Height	49.2 mm
