40
Chapter 8
Guest Network

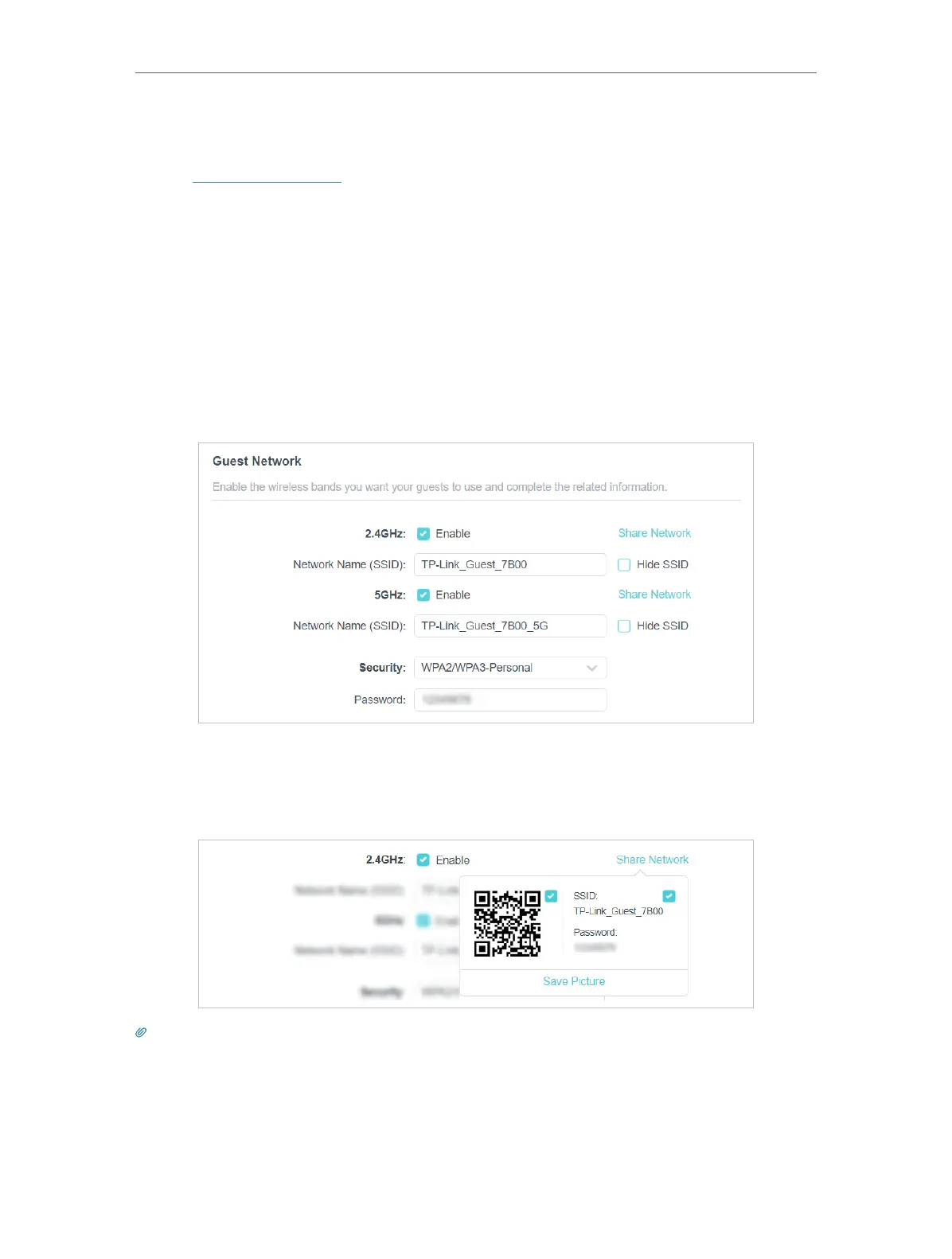

8. 1. Create a Network for Guests
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Wireless and locate the Guest Network section.
3. Create a guest network as needed.
1 ) Enable 2.4GHz and/or 5GHz.
2 ) Customize the SSID. Don‘t select Hide SSID unless you want your guests to
manually input the SSID for guest network access.
3 ) Select the Security type and customize your own password. If No security is
selected, no password is needed to access your guest network.
4. Click SAVE . Now your guests can access your guest network using the SSID and
password you set!
5. You can also click Share Network to share the SSID and password to your guests.
Tips:
To view guest network information, go to Network Map and locate the Guest Network section. You can turn on or off the
guest network function conveniently.

Table of Contents

Other manuals for TP-Link Archer AX73

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link Archer AX73 and is the answer not in the manual?

TP-Link Archer AX73 Specifications

General IconGeneral
Modulation1024-QAM, OFDM
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN data transfer rate (max)5400 Mbit/s
WLAN data transfer rate (first band)4804 Mbit/s
WLAN data transfer rate (second band)574 Mbit/s
MU-MIMO technologyYes
Memory card slot(s)-
Ethernet LAN (RJ-45) ports4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Antennas quantity6
Processor cores3
Processor frequency1500 MHz
SIM card slotNo
WAN connection typeRJ-45
Product typePortable router
Product colorBlack
Output current2.5 A
Output voltage12 V
Power source typeDC
Security algorithmsWPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Supported network protocolsIPv4, IPv6
Cables includedLAN (RJ-45)
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Harmonized System (HS) code85176990
Sustainability certificatesRoHS, Federal Communications Commission (FCC), CE
Package depth265 mm
Package width415 mm
Package height90 mm
Package weight1490 g
Weight and Dimensions IconWeight and Dimensions
Depth147.2 mm
Width272.5 mm
Height49.2 mm
