TP-Link SafeStream TL-ER6020 User Manual

-104-
The following items are displayed on this screen:
 Exceptional IP
IP Address Range:
Specify the start and the end IP address to make an exceptional IP address
range. This range should be in the same IP range with LAN port or DMZ
port of the Router. The start IP address should not exceed the end address
and the IP address ranges must not overlap.
Description:
Give a description to the exceptional IP address range for identification.
Status:
Activate or inactivate the entry.
 List of Account
In this table, you can view the information of Exceptional IPs and edit them by the Action buttons.
3.6.1.5 List of Account
On this page, you can view the detailed information of all accounts you have established.
Choose the menu Services→PPPoE Server→List of Account to load the following page.

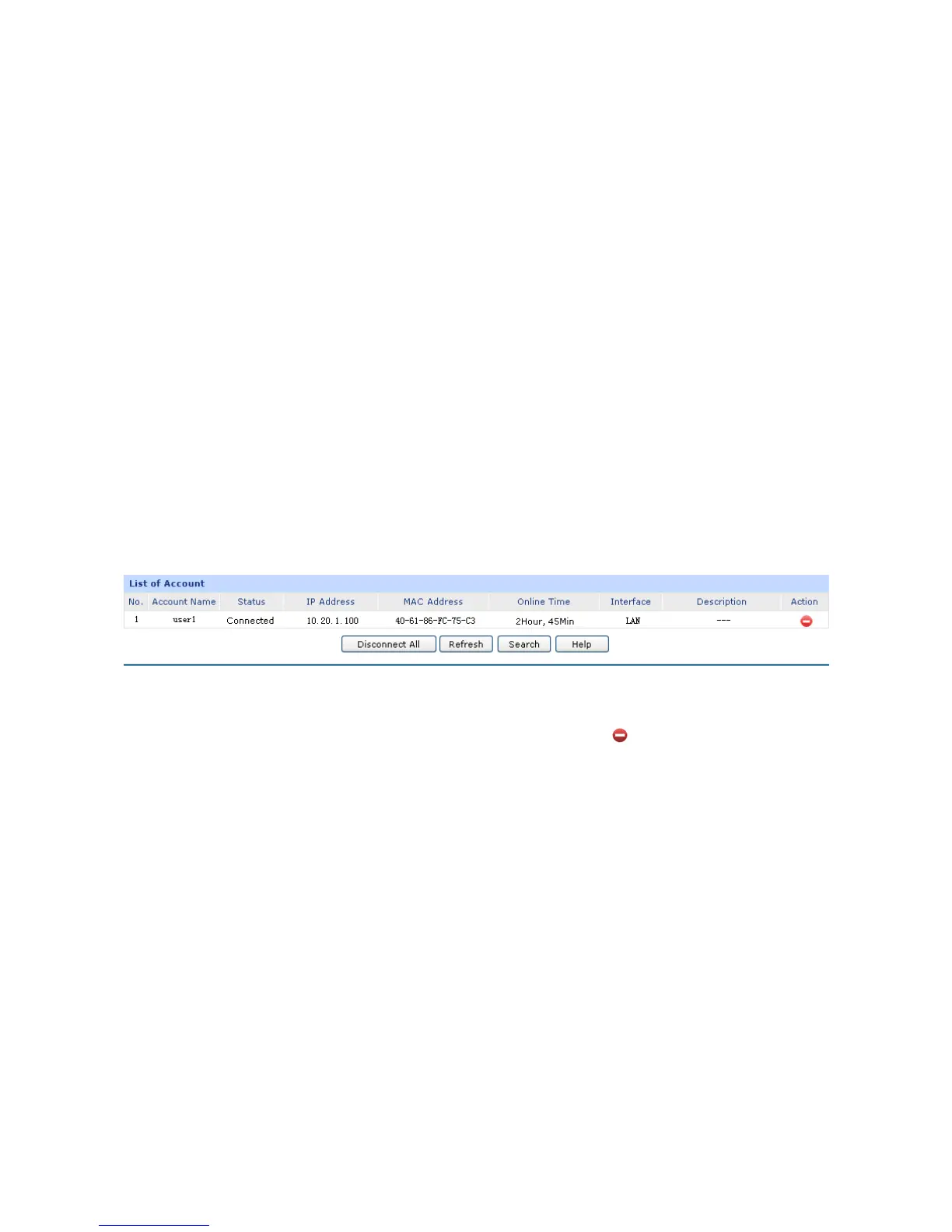

Figure 3-70 List of Account
Figure 3-70 displays the connection information of PPPoE use
rs. Click to disconnect the account.
Click the <Disconnect All> button to disconnect all accounts.
3.6.2 E-Bulletin
With E-Bulletin function, bulletin information can be released to the specified users. On this page you
can edit the bulletin content and specify the receiving user group.
Choose the menu Services→E-Bulletin to load the following page.

TP-Link SafeStream TL-ER6020 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	50
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Maximum indoor range	100 m
RS-232 ports	1
Ethernet LAN (RJ-45) ports	3
Form factor	1U
USB ports quantity	0
Management platform	Web/CLI/Telnet
Filtering description	MAC, URL/Keywords, WebContent
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare, UNIX, Linux
Routing protocols	RIP-1, RIP-2
Supported protocols	IPsec/PPTP/L2TP
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
VPN support	50 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) 16 PPTP VPN Tunnels PPTP VPN Server/Client PPTP with MPPE Encryption 16 L2TP VPN Tunnels L2TP VPN Server/Client L2TP over IPsec
NAT functionality	One-to-One NAT\\r Multi-nets NAT\\r Virtual Server, DMZ Host, Port_Triggering, UPnP\\r FTP/H.323/SIP/IPsec/PPTP ALG
Security algorithms	128-bit AES, 256-bit AES, 3DES, DES
Authentication method	MD5, SHA-1
Network Address Translation (NAT) sessions (max)	30000
Flash memory	16 MB
Certification	CE, FCC, RoHS
Internal memory	128 MB
Internal memory type	DDR2
Mac operating systems supported	macOS
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	No
Power consumption (typical)	- W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Sustainability certificates	RoHS
Package depth	250 mm
Package width	400 mm
Package height	80 mm
Package weight	1810 g

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
Weight	- g
