TP-Link SafeStream TL-ER6020 User Manual

-52-
Note:
● The External port and Internal Port should be set in the range of 1-65535.
● The external ports of different entries should be different, whereas the internal ports can be the
same.
 List of Rules
In this table, you can view the information of the entries and edit them by the Action buttons.
The first entry in Figure 3-32 indicates: This is a Virtual Server
entry named host, all the TCP data
packets from WAN1 to port 65534-65535 of the Router will be redirected to the port 65534-65535 of
the LAN host with IP address of 192.168.0.103, and this entry is activated.
3.3.1.5 Port Triggering
Some applications require multiple connections, such as Internet games, video conferencing, Internet
calling, P2P download and so on. Port Triggering is used for those applications requiring multiple
connections.
When an application initiates a connection to the trigger port, all the ports corresponding to the
incoming port will open for follow-up c
ring to load the following page.
onnections.
Choose the menu Advanced→NAT→Port Trigge

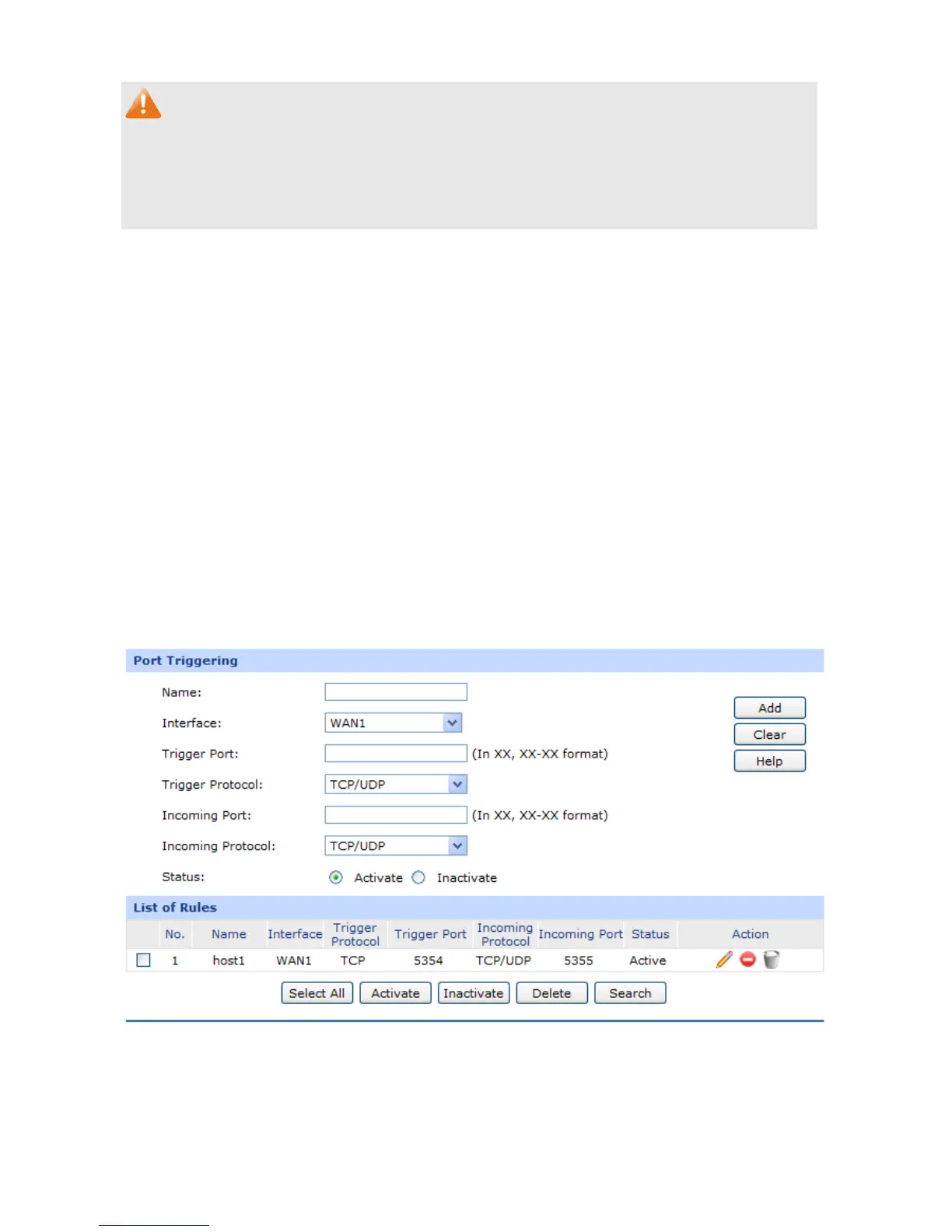

Figure 3-33 Port Triggering
d on this screen: The following items are displaye
 Port Triggering

TP-Link SafeStream TL-ER6020 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	50
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Maximum indoor range	100 m
RS-232 ports	1
Ethernet LAN (RJ-45) ports	3
Form factor	1U
USB ports quantity	0
Management platform	Web/CLI/Telnet
Filtering description	MAC, URL/Keywords, WebContent
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare, UNIX, Linux
Routing protocols	RIP-1, RIP-2
Supported protocols	IPsec/PPTP/L2TP
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
VPN support	50 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) 16 PPTP VPN Tunnels PPTP VPN Server/Client PPTP with MPPE Encryption 16 L2TP VPN Tunnels L2TP VPN Server/Client L2TP over IPsec
NAT functionality	One-to-One NAT\\r Multi-nets NAT\\r Virtual Server, DMZ Host, Port_Triggering, UPnP\\r FTP/H.323/SIP/IPsec/PPTP ALG
Security algorithms	128-bit AES, 256-bit AES, 3DES, DES
Authentication method	MD5, SHA-1
Network Address Translation (NAT) sessions (max)	30000
Flash memory	16 MB
Certification	CE, FCC, RoHS
Internal memory	128 MB
Internal memory type	DDR2
Mac operating systems supported	macOS
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	No
Power consumption (typical)	- W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Sustainability certificates	RoHS
Package depth	250 mm
Package width	400 mm
Package height	80 mm
Package weight	1810 g

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
Weight	- g
