TP-Link TL-MR3220 User Manual

TL-MR3220 3G/3.75G Wireless Lite N Router
-23-
The QSS Configuration Screen of Wireless Adapter
II. By PIN
If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the
network by PIN with the following two methods.
Method One: Enter the PIN into my Router
Step 1: Keep the default QSS Status as Enabled and click the Add device button in
Figure 4-2,
then the following screen will appear.

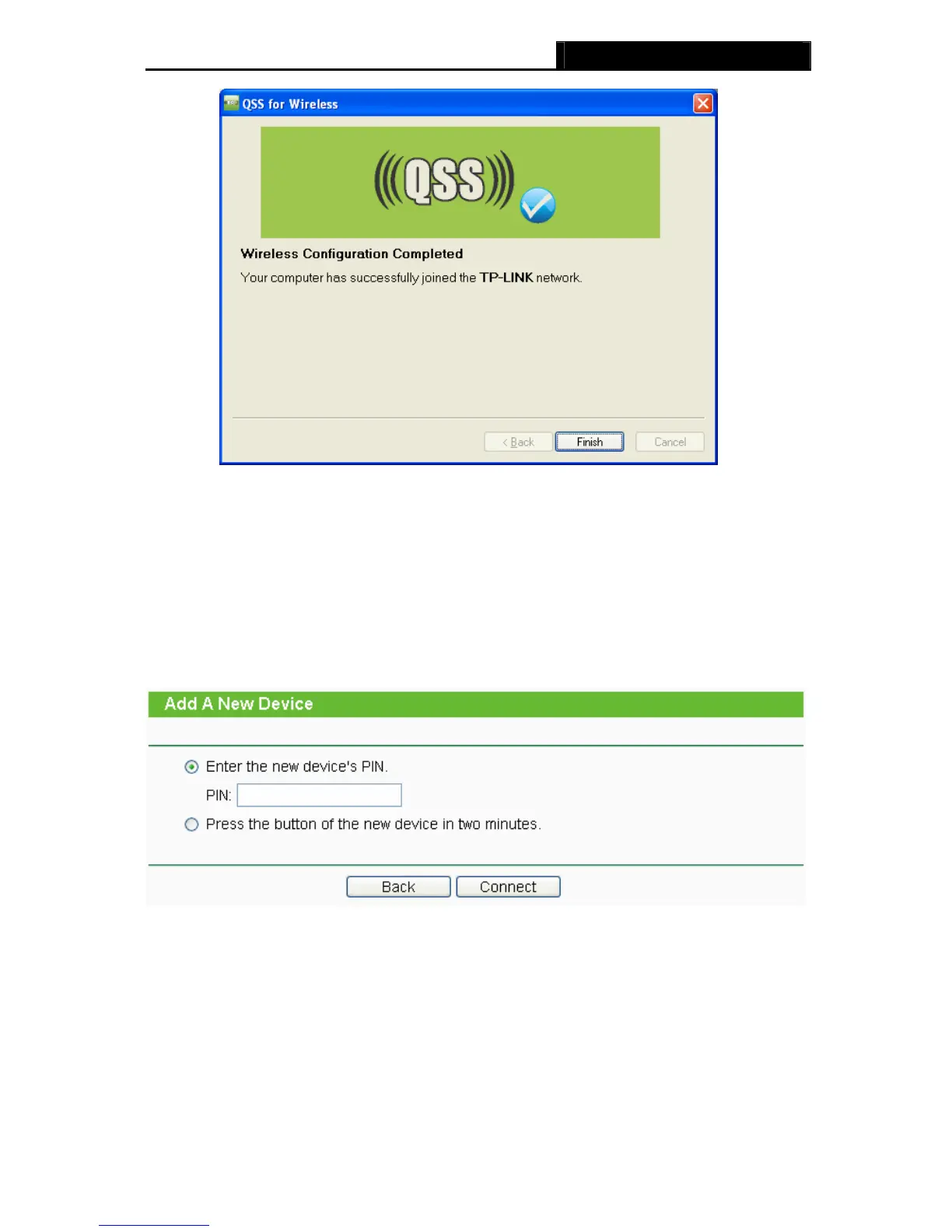

Step 2: Choose Enter the new device's PIN and enter the PIN code of the wireless adapter in
the field behind PIN in the above figure. Then click Connect.
)
Note:
The PIN code of the adapter is always displayed on the QSS configuration screen
Step 3: For the configuration of the wireless adapter, please choose Enter a PIN into my
access point or a registrar in the configuration utility of the QSS as below, and click
Next.

TP-Link TL-MR3220 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
DHCP client	-
Antennas quantity	1
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
Security algorithms	128-bit WEP, 64-bit WEP, WEP, WPA-PSK, WPA2-PSK
Product color	Gray
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, FCC, RoHS
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	138 mm
Width	204 mm
Height	44 mm
Weight	- g
