TP-Link TL-MR3220 User Manual

TL-MR3220 3G/3.75G Wireless Lite N Router
-88-

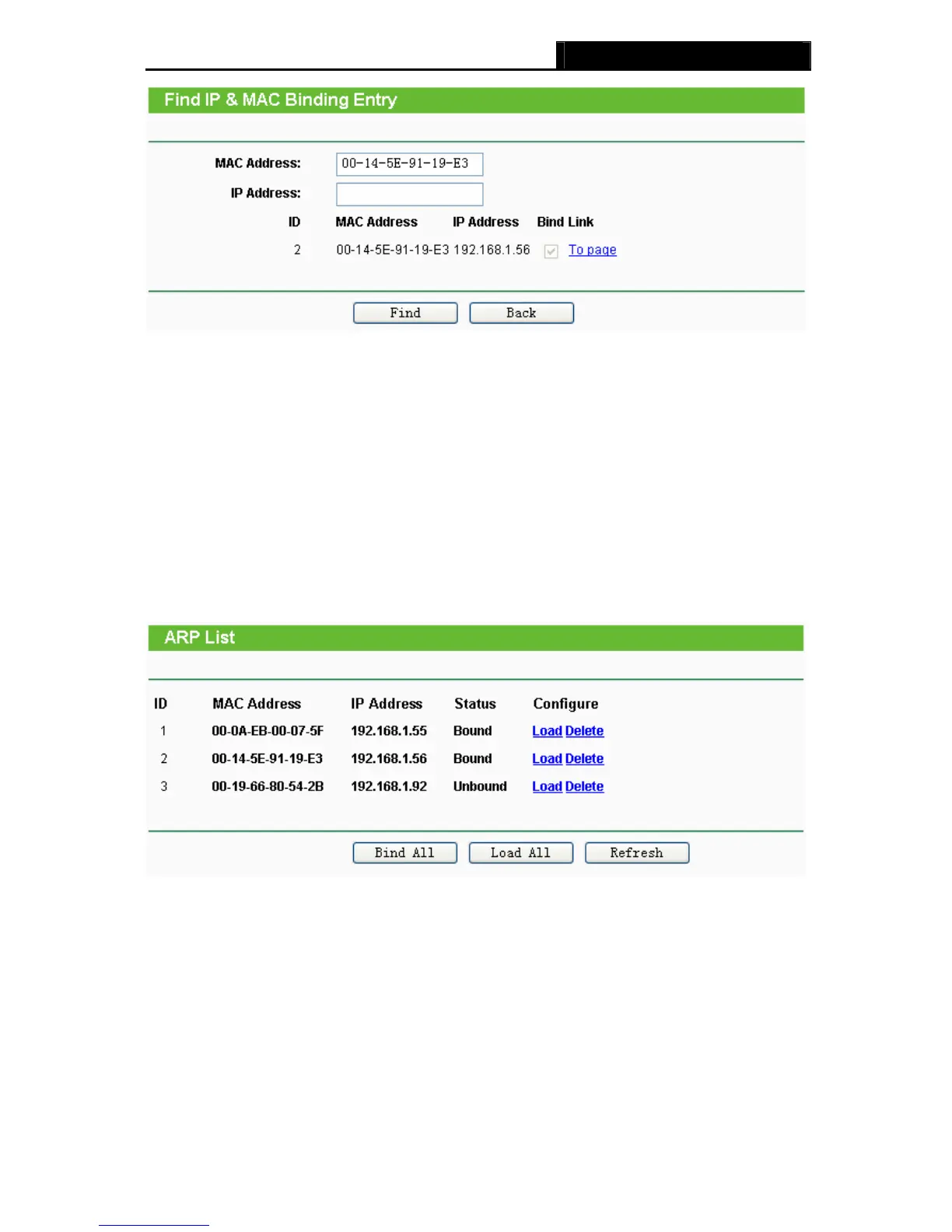

Figure 4-71 Find IP & MAC Binding Entry
Click the Enable All button to make all entries enabled.
Click the Delete All button to delete all entries.
4.14.2 ARP List
To manage the computer, you could observe the computers in the LAN by checking the
relationship of MAC address and IP address on the ARP list, and you could configure the items
on the ARP list also. This page displays the ARP List; it shows all the existing IP & MAC Binding
entries (shown in Figure 4-72).
Figure 4-72 ARP List
¾ MAC Address - The MAC address of the controlled computer in the LAN.
¾ IP Address - The assigned IP address of the controlled computer in the LAN.
¾ Status - Indicates whether or not the MAC and IP addresses are bound.
¾ Configure - Load or delete an item.
z Load - Load the item to the IP & MAC Binding list.
z Delete - Delete the item.

TP-Link TL-MR3220 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
DHCP client	-
Antennas quantity	1
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
Security algorithms	128-bit WEP, 64-bit WEP, WEP, WPA-PSK, WPA2-PSK
Product color	Gray
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, FCC, RoHS
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	138 mm
Width	204 mm
Height	44 mm
Weight	- g
