TL-MR3220 3G/3.75G Wireless Lite N Router
-82-
Click the Next button to go to the next page, or click the Previous button return to the previous
page.

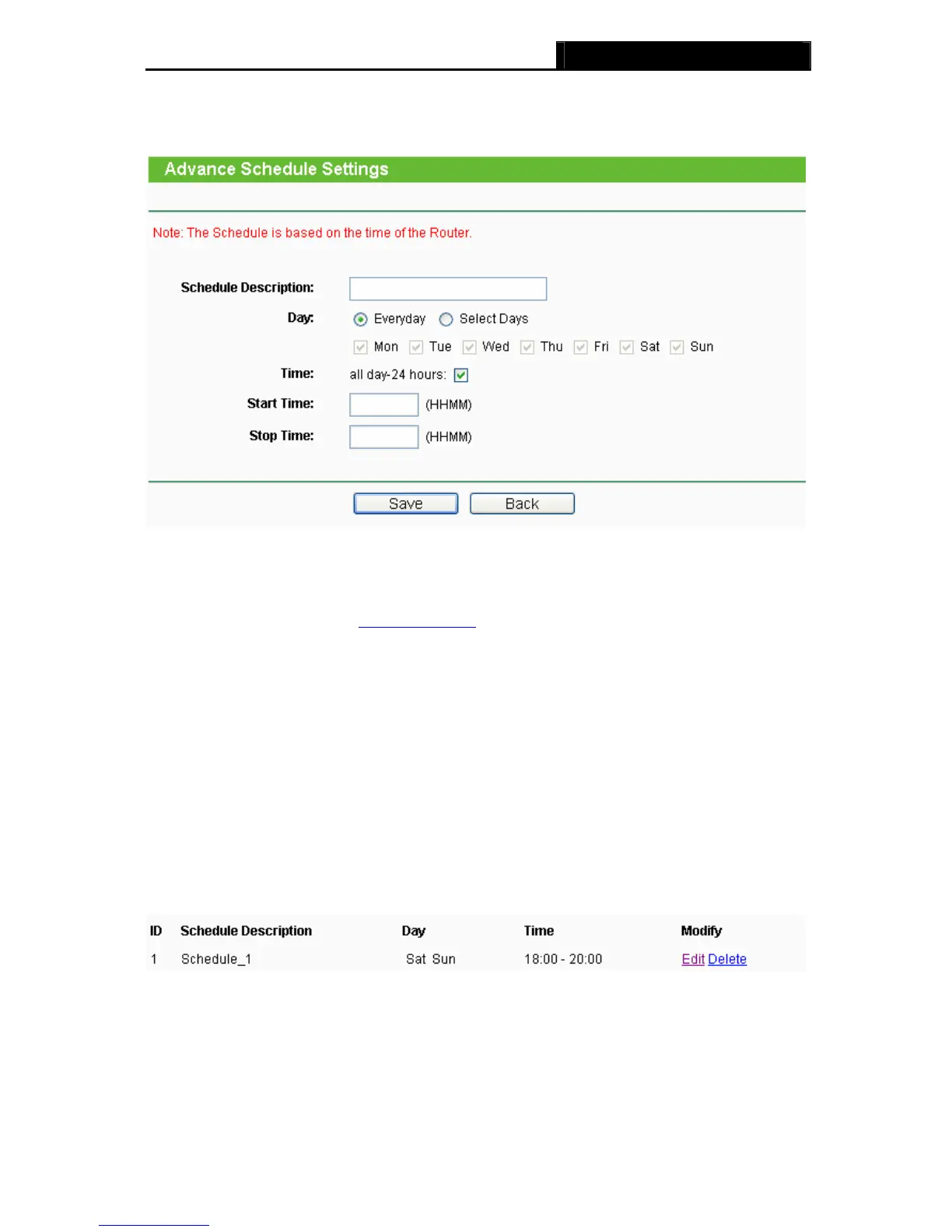

Figure 4-61 Advanced Schedule Settings
For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA to access www.google.com
only from 18:00 to 20:00 on Saturday and
Sunday, you should first follow the settings below:
1. Click Add New... button shown in Figure 4-60 to enter the Advanced Schedule Settings
page.
2. In Schedule Descripti
on field, create a unique description for the schedule (e.g.
Schedule_1).
3. In Day field, check the Select Days radio button and then select Sat and Sun.
4. In Time field, enter 1800 in Start Time field and 2000 in Stop Time field.
5. Click Save to complete the settings.
Then you will go back to the Schedule Settings page and see the following list.
4.12 Static Routing
Choose menu “static routing”, you can configure the static route in the next screen (shown in
Figure 4-62). A static route is a pre-determined
path that network information must travel to
reach a specific host or network.
