TP-Link TL-WA901ND User Manual

TL-WA901ND
450Mbps Wireless N Access Point User Guide
4.5.1 LAN
The Network option allows you to customize your local network manually by changing the default
settings of the AP.
Selecting Network will enable you to configure the IP parameters of Network on this page.

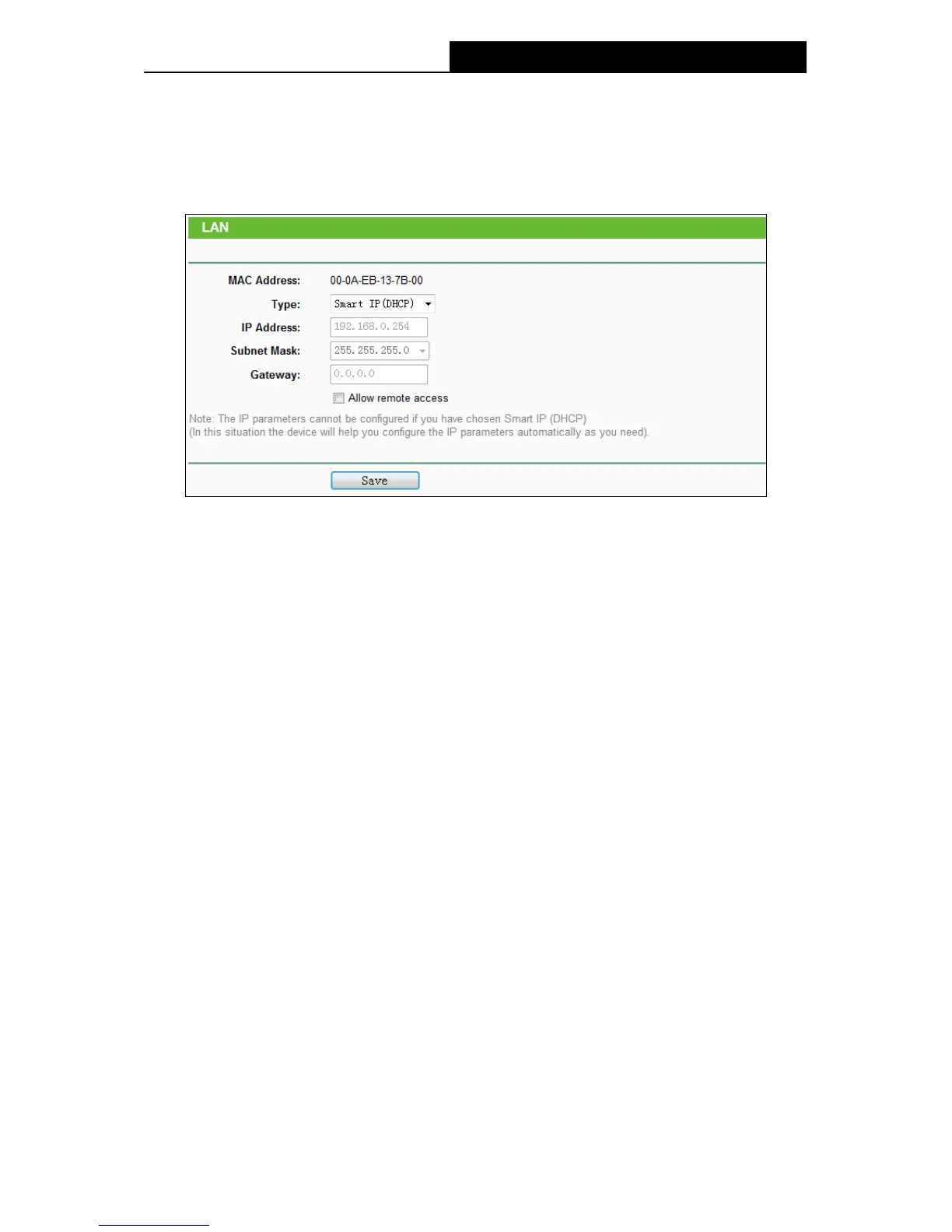

Figure 4-8 Network
 MAC Address - The physical address of the AP. The value can't be changed.
 Type - Select Dynamic IP(DHCP) to get IP address from DHCP server or select Static IP to
configure IP address manually from the drop-down list.
 IP Address - Enter the IP address of your AP in dotted-decimal notation (factory default
setting is 192.168.0.254).
 Subnet Mask - An address code that determines the size of the network. Normally use
255.255.255.0 as the subnet mask.
 Gateway - The gateway should be in the same subnet as your IP address.

Note:
1. If you change the IP Address, you must use the new IP Address to log in the AP.
2. If the new LAN IP Address you set is not in the same subnet with the IP Address pool of DHCP
sever, the IP Address pool will not take effect until it is re-configured accordingly.
4.5.2 DHCP Settings
Selecting DHCP > DHCP Settings will enable you to set up the AP as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PCs that are
connected to the system on the LAN. The DHCP Server can be configured on the page (shown as
Figure 4-9):
26

TP-Link TL-WA901ND Specifications

General

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna features	Detachable antenna
Antennas quantity	3
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
5 GHz	No
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wi-Fi data rate (max)	450 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Input current	1 A
AC input voltage	12 V
Power consumption (typical)	5.8 W
Placement	Table, Wall
Certification	CE, FCC, RoHS
Product color	White
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Cables included	LAN (RJ-45)
Compatible operating systems	Windows XP / Vista / 7 / 8
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	129.9 mm
Width	194.8 mm
Height	36.2 mm
