TP-Link TL-WA901ND User Manual

TL-WA901ND
450Mbps Wireless N Access Point User Guide
4.7.5 Factory Defaults
Selecting System Tools > Factory Defaults allows you to restore the factory default settings for
the device on the screen shown in Figure 4-35.

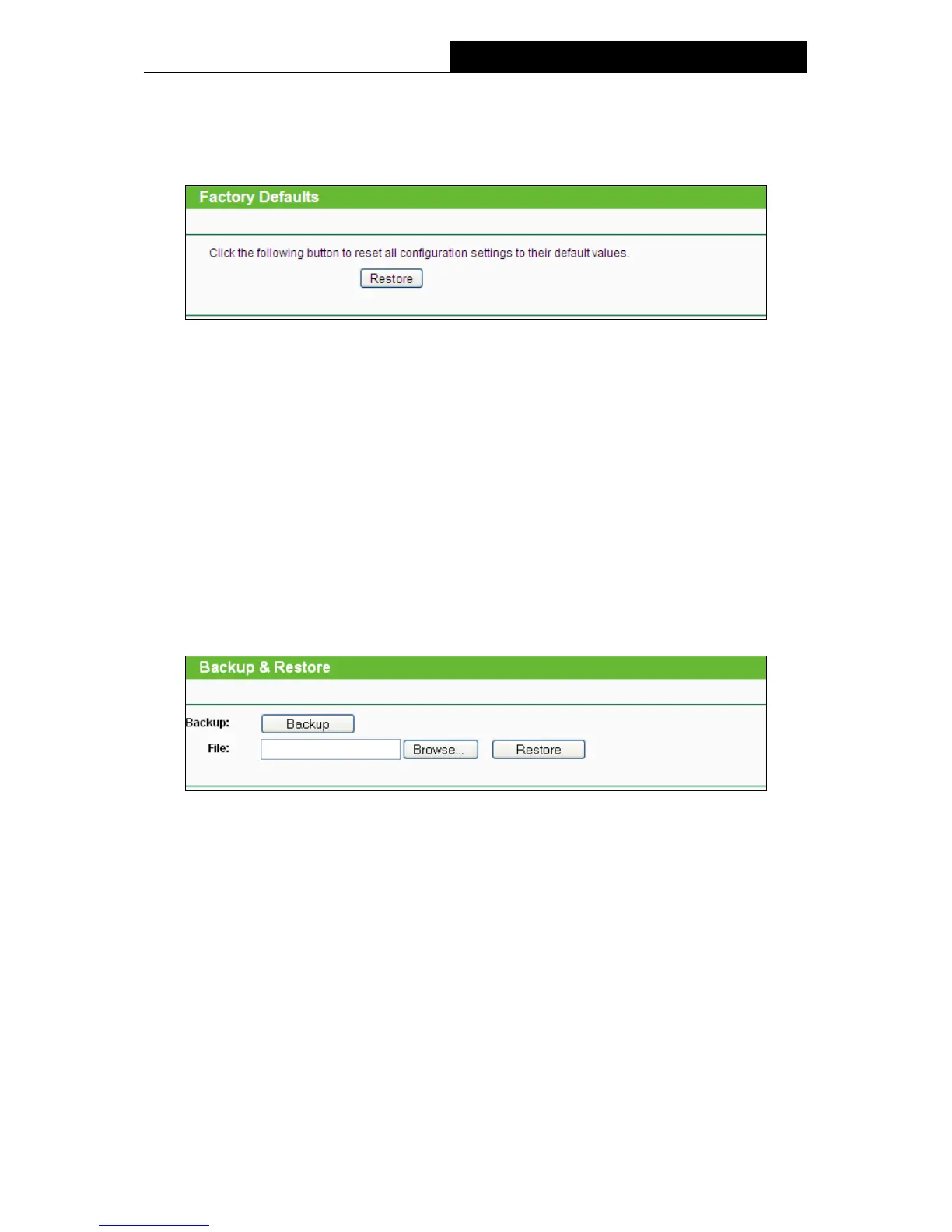

Figure 4-35 Restore Factory Defaults
Click Restore to reset all configuration settings to their default values.
• Default User Name: admin
• Default Password: admin
• Default IP Address: 192.168.0.254
• Default Subnet Mask: 255.255.255.0

Note:
Any settings you have saved will be lost when the default settings are restored.
4.7.6 Backup & Restore
Selecting System Tools > Backup & Restore allows you to save all configuration settings to your
local computer as a file or restore the device's configuration on the screen shown in Figure 4-36.
Figure 4-36 Save or Restore the Configuration
Click Backup to save all configuration settings to your local computer as a file.
To restore the device's configuration, follow these instructions:
• Click Browse… to find the configuration file which you want to restore.
• Click Restore to update the configuration with the file whose path is the one you have
input or selected in the blank.

Note:
1. The current configuration will be covered with the uploading configuration file.
2. Wrong process will lead the device unmanaged.
3. The restoring process lasts for 20 seconds and restart automatically. Do not power off the
device during the process to avoid any damage.
62

TP-Link TL-WA901ND Specifications

General

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna features	Detachable antenna
Antennas quantity	3
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
5 GHz	No
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wi-Fi data rate (max)	450 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Input current	1 A
AC input voltage	12 V
Power consumption (typical)	5.8 W
Placement	Table, Wall
Certification	CE, FCC, RoHS
Product color	White
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Cables included	LAN (RJ-45)
Compatible operating systems	Windows XP / Vista / 7 / 8
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	129.9 mm
Width	194.8 mm
Height	36.2 mm
