TP-Link TL-WA901ND User Manual

TL-WA901ND
450Mbps Wireless N Access Point User Guide
IP Address - Enter the IP Address (such as 202.108.22.5) of the PC whose connection you wish
to diagnose.
Ping Count - Specifies the number of Echo Request messages sent. The default is 4.
Ping Packet Size - Specifies the number of data bytes to be sent. The default is 64.
Ping Timeout - Specifies the time to wait for a response in milliseconds. The default is 800.
Traceroute Max TTL - Set the maximum number of hops (max TTL to be reached) in the path to
Survey for the target (destination). The default is 20.
Click the Start button to start the diagnostic procedure.
The Diagnostic Results page displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.

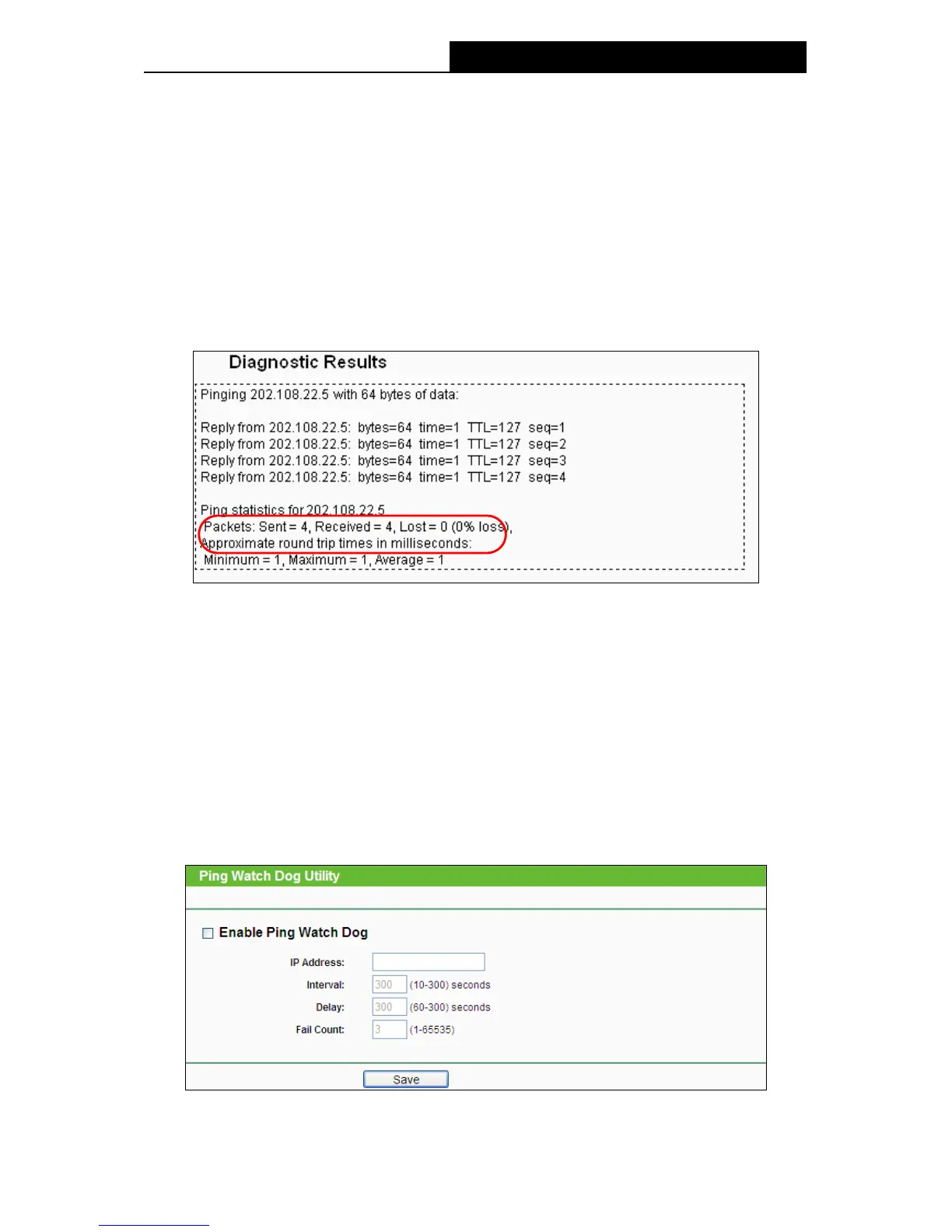

Figure 4-32 Diagnostic Results

Note:
1. Only one user can use this tool at one time.
2. Options “Number of Pings”, “Ping Size” and “Ping Timeout” are only available for Ping function.
Option “Tracert Hops” is available only for Tracert function.
4.7.3 Ping Watch Dog
Selecting System Tools > Ping Watch Dog allows you to continuously monitor the particular
connection between the device to a remote host. It makes this device continuously ping a user
defined IP address (it can be the internet gateway for example). If it is unable to ping under the
user defined constraints, this device will automatically reboot.
Figure 4-33 Ping Watch Dog Utility
60

TP-Link TL-WA901ND Specifications

General

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna features	Detachable antenna
Antennas quantity	3
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
5 GHz	No
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wi-Fi data rate (max)	450 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Input current	1 A
AC input voltage	12 V
Power consumption (typical)	5.8 W
Placement	Table, Wall
Certification	CE, FCC, RoHS
Product color	White
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Cables included	LAN (RJ-45)
Compatible operating systems	Windows XP / Vista / 7 / 8
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	129.9 mm
Width	194.8 mm
Height	36.2 mm
