TP-Link TL-WA901ND User Manual

TL-WA901ND
450Mbps Wireless N Access Point User Guide
4.7.7 Reboot

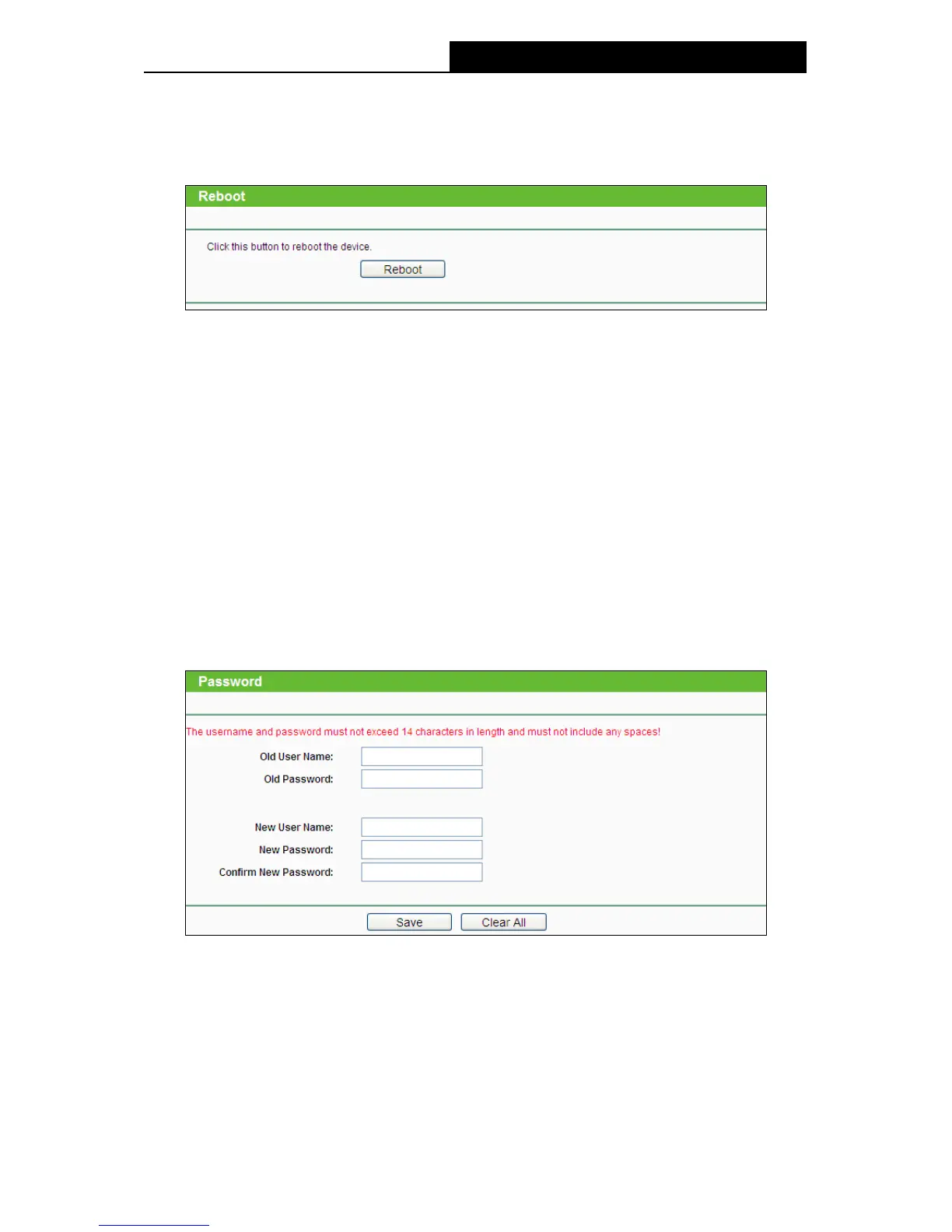

Selecting System Tools > Reboot allows you to reboot the device on the screen shown in Figure
4-37.
Figure 4-37 Reboot the device
Click the Reboot button to reboot the device.
Some settings of the device will take effect only after rebooting, which include:
• Change LAN IP Address (System will reboot automatically).
• Change the Wireless configurations.
• Change the Web Management Port.
• Upgrade the firmware of the device (system will reboot automatically).
• Restore the device's settings to factory defaults (system will reboot automatically).
• Update the configuration with a file (system will reboot automatically).
4.7.8 Password
Selecting System Tools > Password allows you to change the factory default user name and
password of the device on the screen shown in Figure 4-38.
Figure 4-38 Password
It is strongly recommended that you change the factory default user name and password of the
device. All users who try to access the device's web-based management page or Quick Setup will
be prompted for the device's user name and password.

Note:
The new user name and password must not exceed 14 characters in length and must not include
any spaces. Enter the new Password twice to confirm it.
63

TP-Link TL-WA901ND Specifications

General

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna features	Detachable antenna
Antennas quantity	3
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
5 GHz	No
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wi-Fi data rate (max)	450 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Input current	1 A
AC input voltage	12 V
Power consumption (typical)	5.8 W
Placement	Table, Wall
Certification	CE, FCC, RoHS
Product color	White
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Cables included	LAN (RJ-45)
Compatible operating systems	Windows XP / Vista / 7 / 8
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	129.9 mm
Width	194.8 mm
Height	36.2 mm
