Trane CenTraVac User Manual

11
CVHE-SVN01C-EN
General Information

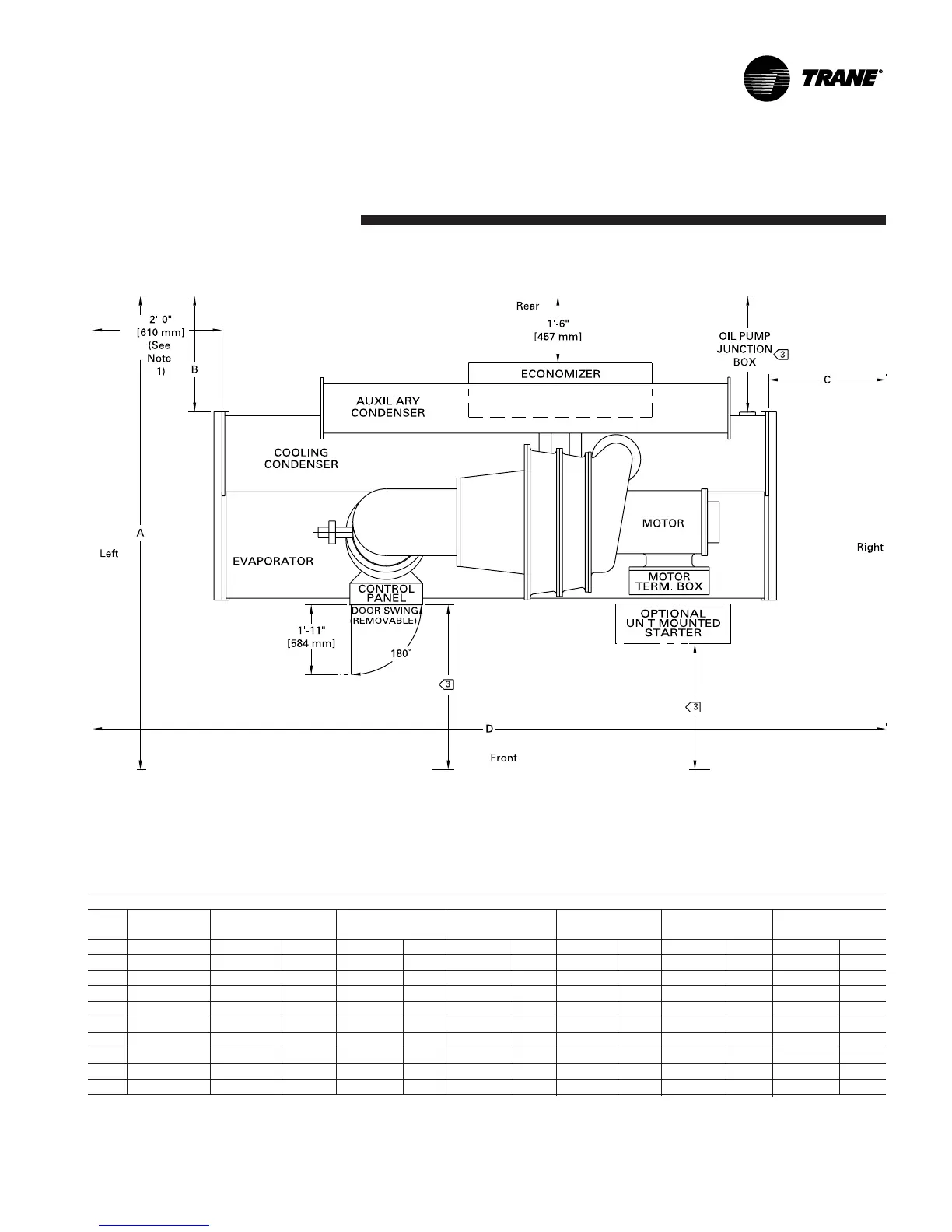

Figure 2. Clearance requirements for cooling and auxiliary units
Table with Figure 2
CVHE, F, G Cooling and Auxiliary Units (Clearance)
DIM SHELL EVSZ EVSZ EVSZ EVSZ EVSZ EVSZ
COMB 032S/L 050S/L 080S/L 142M/L/E 210L 250E
(Inch) [mm] (Inch) [mm] (Inch) [mm] (Inch) [mm] (Inch) [mm] (Inch) [mm]
A1 ALL 10'-3-1/4" 3131 11'-1-5/8" 3393 12'-5-1/4" 3790 14'-5-3/4" 4413 15'-3-3/4" 4667 16'-5-1/2" 5017
A2 ALL 11'-4-1/2" 3466 12'-5-1/2" 3797 13'-1-5/8" 4003 15'-1" 4597 15'-7" 4750 16'-6-1/2" 5042
B ALL 2'-6-5/8" 777 2'-10" 864 2'-6-3/8" 772 2'-11-3/8" 899 3'-0-1/8" 918 2'-11-1/8" 893
S/S 11'-9" 3581 11'-9" 3581 11'-9" 3581 N/A N/A N/A N/A N/A N/A
C S/L, M/L, LL 15'-6" 4724 15'-6" 4724 15'-6" 4724 15'-6" 4724 15'-6" 4724 N/A N/A
E/L N/A N/A N/A N/A N/A N/A 17'-5" 5309 N/A N/A 17'-5" 5309
S/S 26'-5" 8052 26'-6-3/8" 8087 27'-4-1/4" 8338 N/A N/A N/A N/A N/A N/A
D S/L, M/L, L/L 33'-11-1/4" 10343 34' 10363 34'-10-1/2" 10640 35'-5-1/4" 10801 35'-5-1/4" 10801 N/A N/A
E/L N/A N/A N/A N/A N/A N/A 39'-3" 11963 N/A N/A 39'-6" 12039
Notes:
1. Does not include water box. Add wate box dimension to this figure.
2. Minimum vertical clearance over chiller is 3 feet.
3. Minimum work space clearance per national and local electrical codes.
Do not install piping or conduit above compressor
motor assembly or behind suction elbow.
Notes:
1. EVSZ = Evaporator Size, L = Long Shell; S = Short Shell; E = Extended Shell, M = Medium Shell
2. Clearance requirement to evaporator tube removal does not includ water box. Add water box dimension to this figure.
A1 = Without Unit Mounted Starter
A2 = With Unit Mounted Starter
Top View

Trane CenTraVac Specifications

General

Compressor Type	Centrifugal
Dimensions	Varies by model
Frequency	50/60 Hz
Refrigerant	R-123 or R-134a
Operating Range	40°F to 65°F (Leaving Chilled Water Temperature)
