General Information

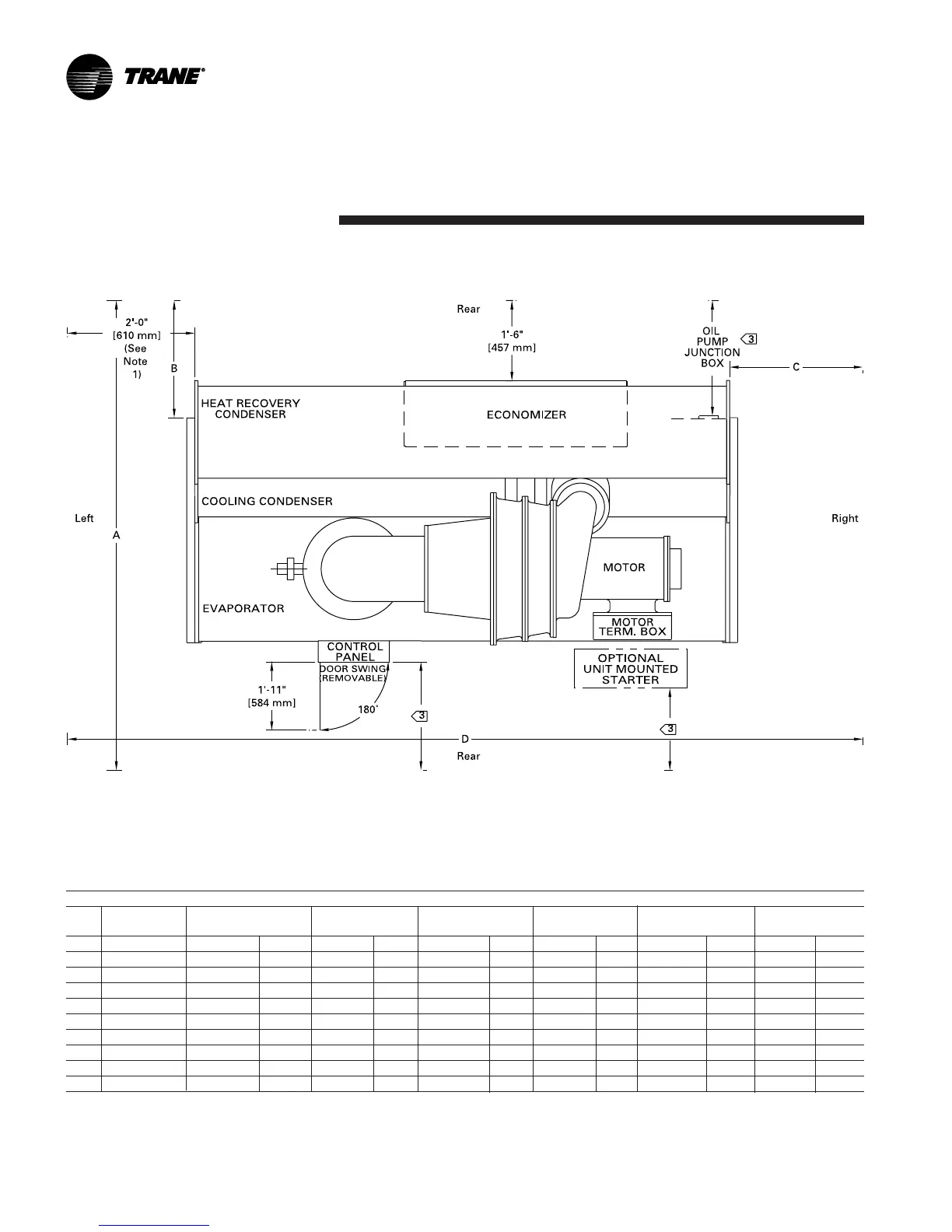

Figure 3. Clearance requirements for heat recovery units
Table with Figure 3
CVHE, F, G Cooling and Auxiliary Units (Clearance)
DIM SHELL EVSZ EVSZ EVSZ EVSZ EVSZ EVSZ
COMB 032S/L 050S/L 080S/L 142M/L/E 210L 250E
(Inch) [mm] (Inch) [mm] (Inch) [mm] (Inch) [mm] (Inch) [mm] (Inch) [mm]
A1 All 10'-6-5/8" 3216 11'-2-3/4" 3422 12'-5-3/8" 3794 14'-10" 4521 15'-8-1/2" 4788 N/A N/A
A2 All 11'-8" 3555 12'-6-5/8" 3825 13'-1-3/4" 4006 15'-5-1/4" 4705 15'-11-3/4" 4870 N/A N/A
B All 2'-10" 864 2'-11-1 /8" 893 2'-6-1 /2" 775 3'-3-5/8" 1006 3'-10-1 /4" 1174 N/A N/A
S/S 11'-9" 3581 11'-9" 3581 11'-9" 3581 N/A N/A N/A N/A N/A N/A
C S/L, M/L, L/L 15'-6" 4724 15'-6" 4724 15'-6" 4724 15'-6" 4724 15'-6" 4724 N/A N/A
E/L N/A N/A N/A N/A N/A N/A 17'-5" 5309 N/A N/A N/A N/A
S/S 26'-5" 8052 26'-6-3/8" 8087 27'-4-1/4" 8338 N/A N/A N/A N/A N/A N/A
D S/L, M/L, L/L 33'-11-1 /4" 10343 34' 10363 34'-10-1 /2" 10630 35'-5-1 /4" 10801 35'-5-1 /4" 10801 N/A N/A
E/L N/A N/A N/A N/A N/A N/A 39'-3" 11963 N/A N/A N/A N/A
A1 = Without Unit Mounted Starter
A2 = With Unit Mounted Starter
Notes:
1. EVSZ = Evaporator Size, L = Long Shell; S = Short Shell; E = Extended Shell
2. Clearance requirement to evaporator tube removal does not include water box. Add water box dimension in this figure.
3. Does not include water box. Add water box dimension to this figure.
Notes:
1. Does not include water box.
2. Minimum vertical clearance over chiller is 3 feet.
3. Minimum work space clearance per national and local electrical codes.
Do not install piping or conduit above compressor
motor assembly or behind suction elbow.
Top View

Trane CenTraVac Specifications

General

Compressor Type	Centrifugal
Dimensions	Varies by model
Frequency	50/60 Hz
Refrigerant	R-123 or R-134a
Operating Range	40°F to 65°F (Leaving Chilled Water Temperature)
