Trane RTAF SE Series User Manual

RLC-SVX19A-E4
27
Integrated Pump Package (Optional)
Available Pressure Head

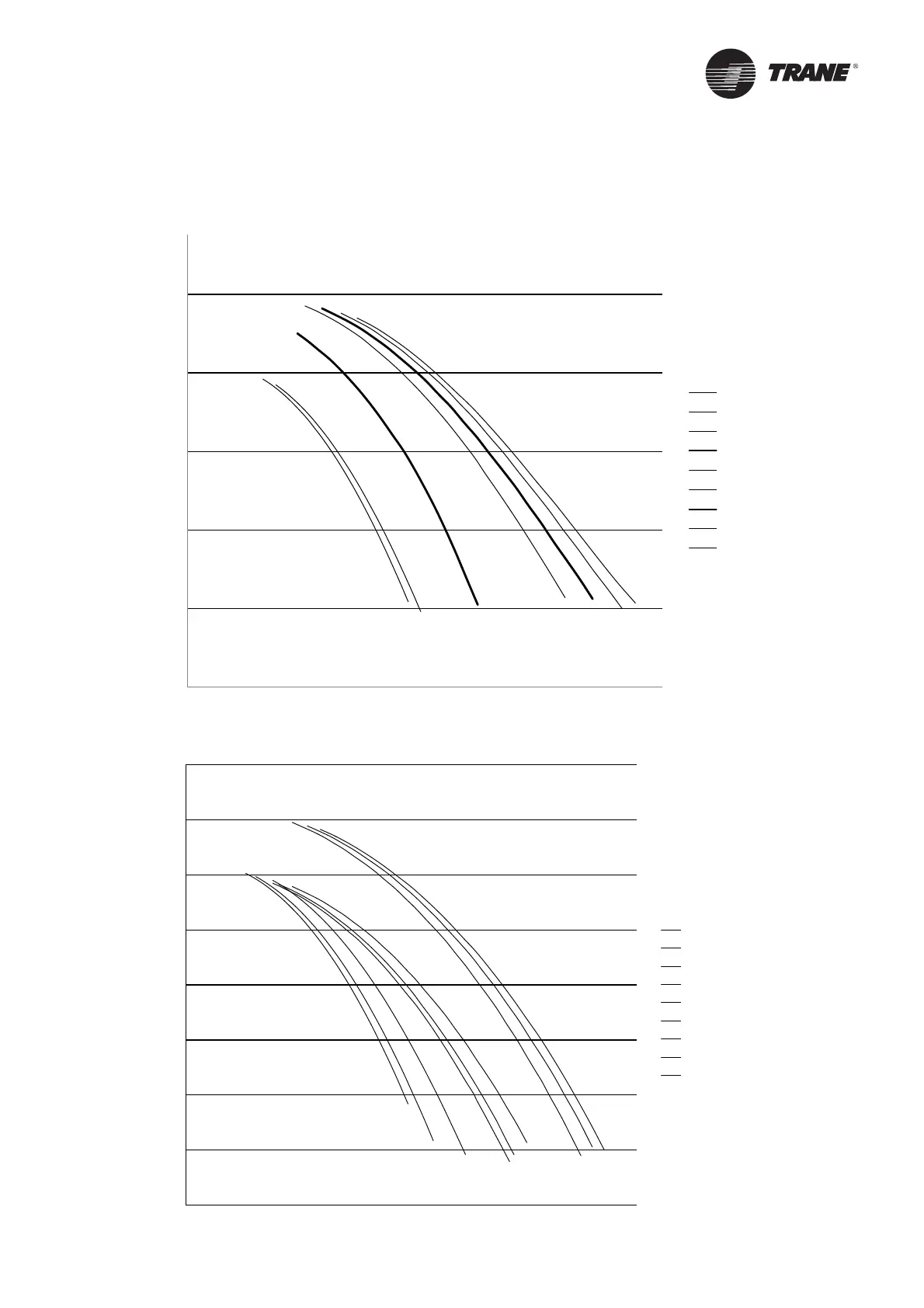

Figure 11 – Standard Head Available Pressure Pump package (Evaporator without Turbulators)
Figure 12 – High Head Available Pressure Pump package (Evaporator Without Turbulators)
0.0
50.0
100.0
150.0
200.0
250.0
0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0
(kPa)
(l/s)
1. RTAF 090 SE-HE-XE-HSE
2. RTAF 105 SE-HE-XE-HSE
3. RTAF 125 SE-HE-XE-HSE
4. RTAF 145 SE-HE-XE-HSE
5. RTAF 155 SE-HE-XE-HSE
6. RTAF 175 SE-HE-XE-HSE
7. RTAF 190 SE-HE-XE-HSE
8. RTAF 205 SE
9. RTAF 205 HE-XE-HSE
1
2
3
-
4
5
6-7
9
8
0.0
50.0
100.0
150.0
200.0
250.0
300.0
350.0
400.0
0.0 10.0 20.0 30.0 40.0 50.0 60.0
(kPa)
(l/s)
1. RTAF 090 SE-HE-XE-HSE
2. RTAF 105 SE-HE-XE-HSE
3. RTAF 125 SE-HE-XE-HSE
4. RTAF 145 SE-HE-XE-HSE
5. RTAF 155 SE-HE-XE-HSE
6. RTAF 175 SE-HE-XE-HSE
7. RTAF 190 SE-HE-XE-HSE
8. RTAF 205 SE
9. RTAF 205 HE-XE-HSE
2
3
4
5
6
7
8
9
1
Available
Pressure
(kPa)
Water fl ow rates (l/s)
Available
Pressure
(kPa)
Water fl ow rates (l/s)
