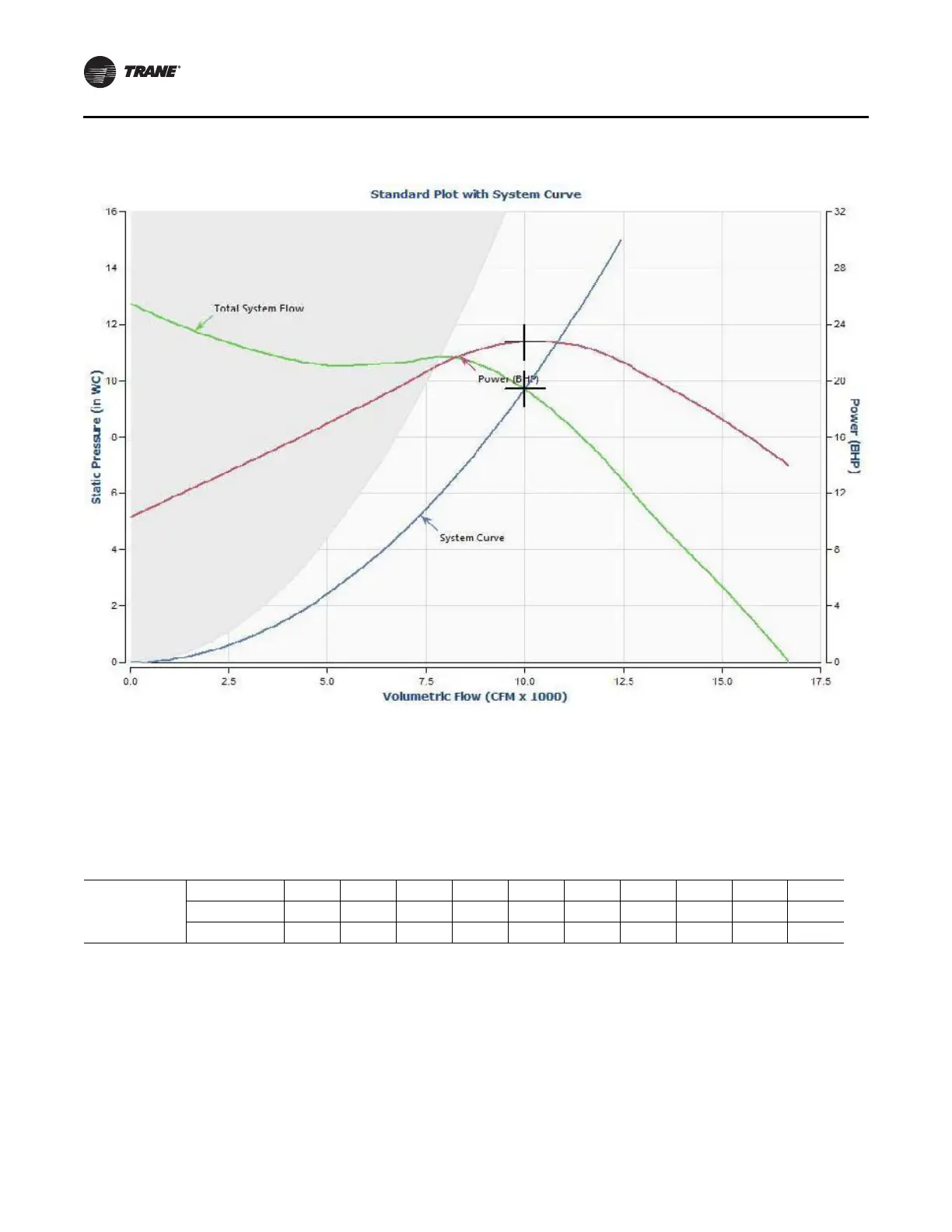

Figure 5. RSAU0025F2 Fan Information
RSAU0025F2 AHU
14 CHS-SVX02C-EN
Size/Model ................................................ 165MK2/EPLFN
Volumetric Flow (CFM) ............................................ 10000
SP (i
n WC)...................................................................... 9.7
Class................................................................................. III
Speed (RPM)...............................................................
3560
Max Speed...........................................4,000 RPM @ 7
0°F
Power (BHP)...............................................................22.76
Outlet Vel (FPM) .........................................................2456
Density (lb/ft3) ...........................................................0.075
Adjusted for (2) fans operating in parallel
Sound Power
Octave Bands
1 2 3 4 5 6 7 8 LwA dBA
Inlet dB
91 91 93 101 95 88 87 89 101 86
Outlet dB
92 92 96 102 98 93 88 84 103 88
LwA: The overall (single value) fan sound power level in dB re. 10
-12
Watts, ‘A’ weighted
dBA: Estimated sound pressure level (re:0.0002 microbar) based on a single ducted installation at 5 ft, using a directivity factor of 1.
