28 CHS-SVX02C-EN

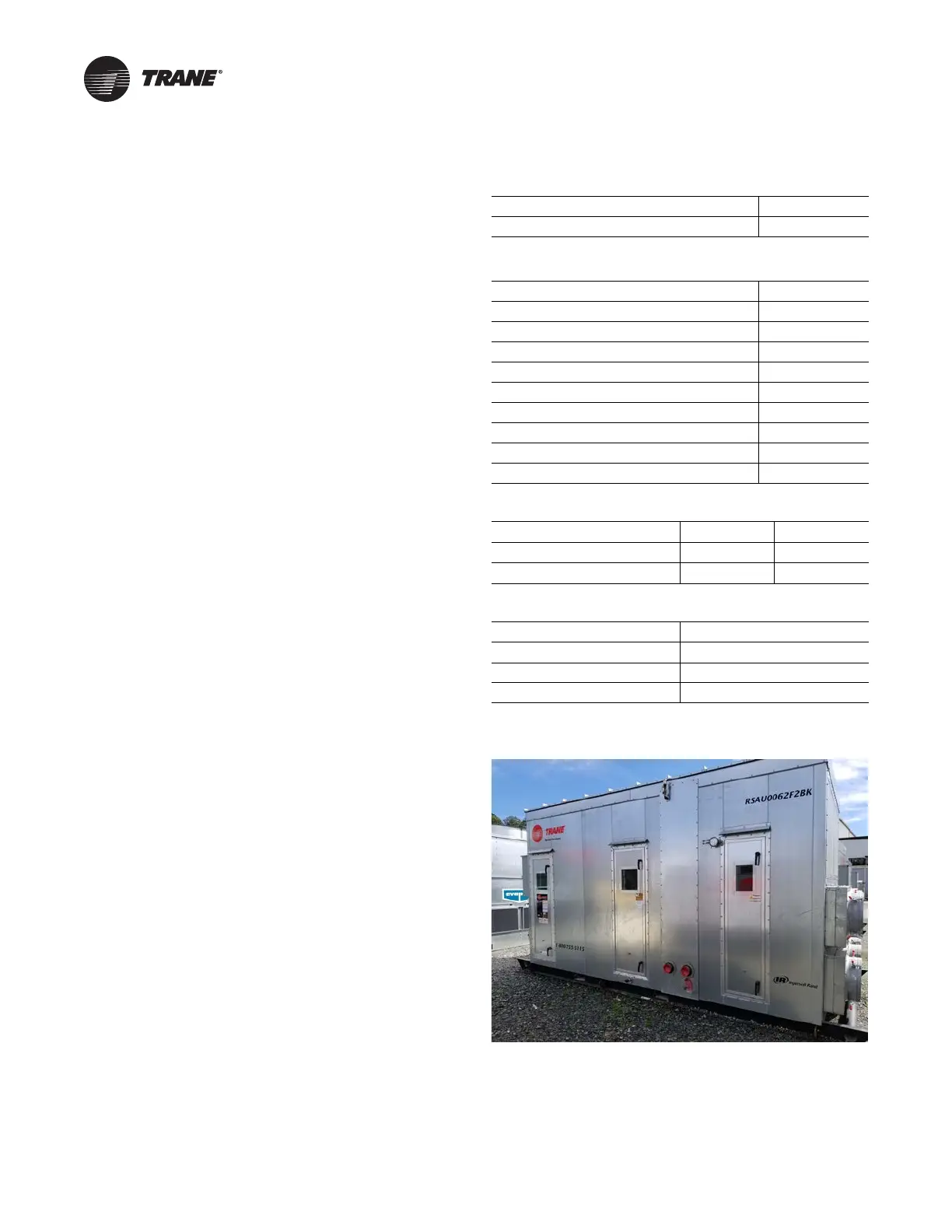

RSAU0062F2 AHU
Model Number ..........................................................TCPA
Water Connection Size ................................ 4 in Victaulic
Ambient Operating Conditions
1
........................14–104°F
Supply Motor(s) ..................................................(2) 30 hp
OCP Device ................................................Circuit Breaker
Number of Electrical Circuits ..........................................1
Discharge Configuration.................................. Horizontal
Flex Duct Connection Size............................. 19 in round
Number of Discharge Air Connections ..........................6
Max Discharge Static Pressure ........................6.0 in ESP
Number of Return Air Connectors..................................6
Filter Rack (Qty. and size)
2
...(12) 24 in x 24 in, (4) 24 in x 12 in
Nominal Air Flow (cfm) ..........................................25,000
Min/Max Air Flow (cfm)
3
..............................5,600/26,000
Selection is required for actual AHU performance.
1
For ambient conditions below 40°F, glycol is recommended.
2
Unit provided with standard 2 in filters. Filter rack will accept up to 95% efficient
MERV 14 filters.
3
Min/Max airflow is dependent upon external static pressure requirement. Con-
tact Rental Services for specific airflow and static pressure information.
Electrical Data
Voltage ........................................................ 460V 3-phase
Frequency ..................................................................60 Hz
Electrical Connection Type......................Cam Type Only
SCCR .............................................................................
65K
Minimum Circuit Ampacity (MCA) ............ 101.25 a
mps
Maximum Overcurrent Protection (MOP)....... 125 amps
For additional electrical information, contact Trane Rental Services.
Performance Data
CFM 25,000
Air Pressure Drop through Unit (in H
2
0) 3.28
Cooling Coil
Entering Air DB/WB Temp (°F) 84/77
Leaving Air DB/WB Temp (°F) 49.6/49.6
GPM 374.92
Entering Water Temp (°F) 44
Leaving Water Temp (°F) 56
Coil Water Pressure Drop (ft H
2
0) 24.56
Sensible Capacity (MBH) 931.3
Total Capacity (MBH) 2254.7
Coil Face Area (sq ft) 49.6
Coil Rows 10
Water Flow Rates
Minimum Maximum
CW Coil Flow (GPM) 60 555
CW Coil Pressure Drop (ft H
2
0) 0.86 50.97
Dimensions and Weights
Length 19 ft 0 in
Width 8 ft 6 in
Height 9 ft 9 in
Weight 12,100 lbs
Lifting Device: Fork Lift or Crane
