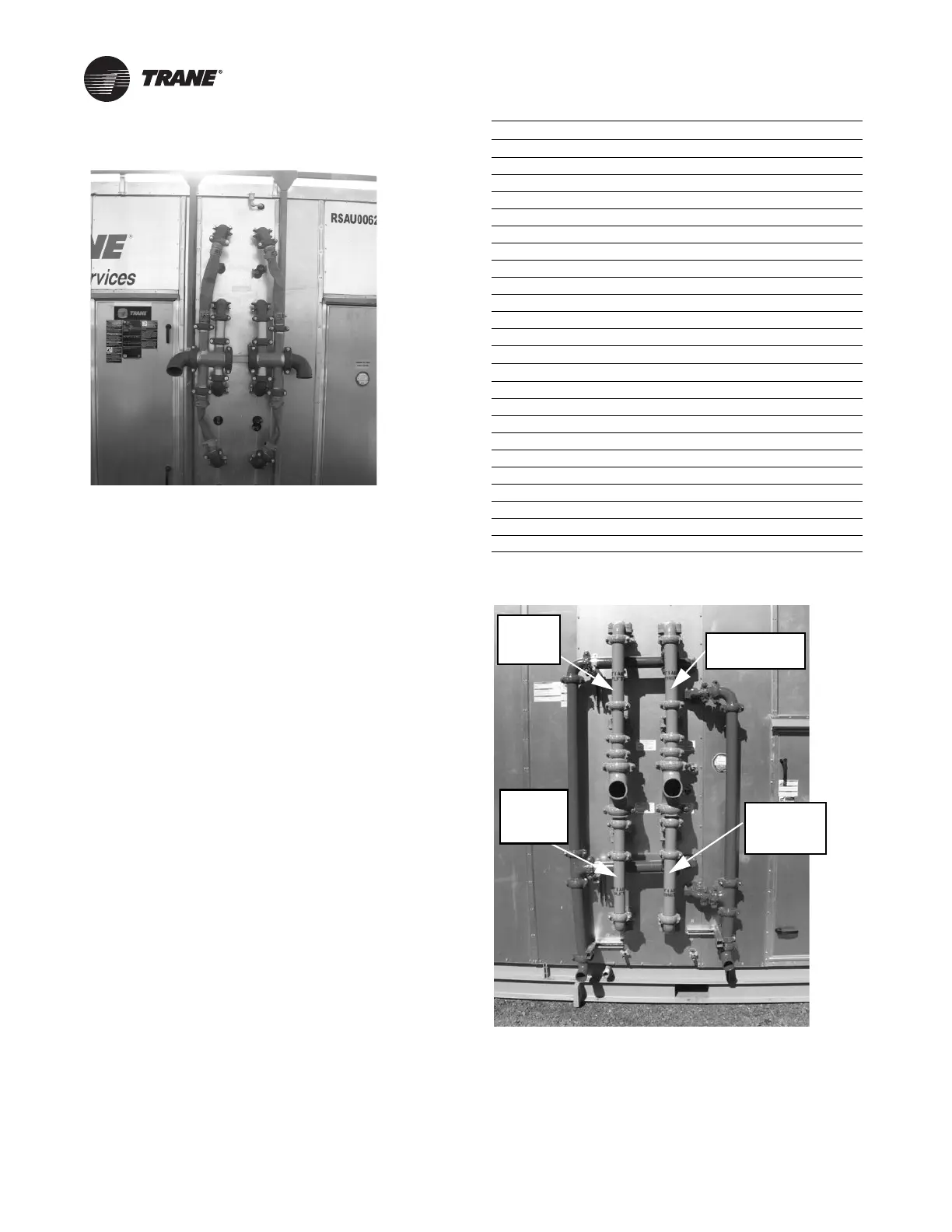

Figure 24. RSAU0062F0 piping manifold
34 CHS-SVX02C-EN
Reference the Rental Services flexible water hose IOM,
CHS-SVX01A-EN, for further in
formation.
RSAU0062F1
Multiple coils need to be manifolded together in order to
connect with a single water connection. The unit is
supplied with manifolds for both the hot and cold water
coils. Due to shipping restrictions, these manifolds ship
loose in the discharge section of the unit and must be field
installed. Due to variances in header locations, the cooling
coil manifolds are not interchangeable. Each is labeled
with (2) four letter codes. The first four letters (F1AO, for
example) correspond to the last four letter of the AHU's
identifying stencil. The second set of four letters
designates where the piece should be installed on that unit
(i.e. TLFT indicates it should be installed in the upper left
position). The labels are painted onto each pipe in the
cooling coil manifolds. See Figure 25.
Quantity Description of items
30 2.5 in Coupling
4 2.5 in Elbow
4 2.5 in Tee
4 2.5 in x 4 in Reducer
2 4 in Tee
4 4 in Couplings
8 2.5 in pipes of 3.25 in nominal length
2 2.5 in pipes of 16 in nominal length
2 2.5 in pipes of 15 in nominal length
2 2.5 in pipes of 3.5 in nominal length
Hot Water Manifolds
Quantity Description of items
4 1.5 in Elbow
8 1.5 in Coupling
4 1.5 in x 2.5 in Reducer
4 2.5 in Elbow
2 2.5 in Tee
14 2.5 in Coupling
2 2.5 in pipes of 19 in nominal length
2 2.5 in pipes of 43 in nominal length
1 2.5 in pipe of 20 in nominal length
1 2.5 in pipe of 9 in nominal length
Figure 25. New 25k Manifold Callout
RSAU0025F2, RSAU0050F2,
RSAU0062F2
All F2 Style AHU cooling coils are configured with a single
inlet and single outlet Victaulic water connection, please
reference Figure 26.
Chilled Water Manifolds
BRGT:
Bottom
Right Piece
TRGT:
Top Right Piece
TLFT:
Top Left
Piece
BLFT:
Bottom
Left Piece
