BAS-S
VX04C-EN •
Wireles
s S
ens
ors
21
Installation
Mounting the Sensor Bac
k Plate
T
o mount the sensor bac
k plate:
1
.
Hold the
bac
k plate ag
ainst the mounti
ng surface and mark th
e screw locations.
2.
Secure
the bac
k plate again
st the mounting surf
ace using included hardw
are.

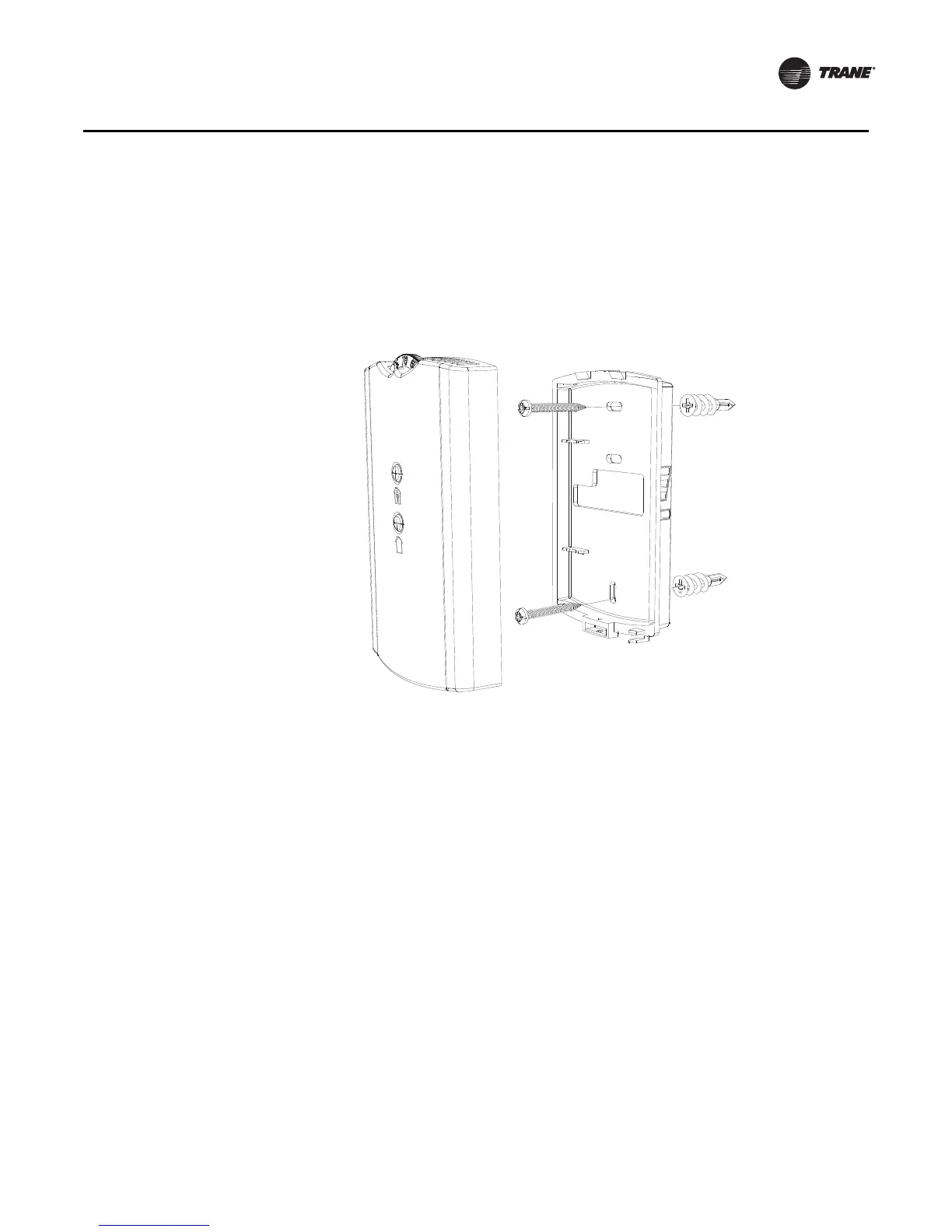

The figure shows an example of moun
ting the bac
k plate of the sensor into sheetroc
k
or plaster
.
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
7
Product Description
7
Part Numbers
8
Dimensions
9
Pre-Installation
10
Location Considerations
10
Receiver
10
Sensor
10
Height Requirements
11
Mounting Surfaces
11
Address Setting
11
Installation
13
Mounting the Receiver Back Plate
13
Wiring the Receiver to the Unit Controller
14
Power Requirements
14
Wiring Procedure
14
Replacing the Receiver Cover
17
Applying Power to the Receiver
17
Observing the Receiver for Readiness to Associate
18
Associating the Sensor to the Receiver
19
Testing Signal Strength and Battery Status
20
Mounting the Sensor Back Plate
21
Configuring the Wireless Sensor (Model WDS Only)
22
Configuration Procedure
22
Optional Features
26
Replacing the Sensor Cover
27
Operation
28
Temporary Occupancy (Timed Override)
28
Model WZS Sensor
28
Model WDS Sensor
28
Service Pin Request
29
Model WZS Sensor
29
Model WDS Sensor
29
Star(*)/Double Star(**) Function
30
End-Of-Range Temperature Values
30
Receiver Power-Up Sequence
31
Sensor Transmission Time and Temperature Variables
32
Operating Mode (Model WDS)
32
Changing Room Temperature
33
Changing Heating and Cooling Room Temperature Settings (Applies to some Systems)
33
Changing the System Setting
33
Changing the Fan Setting
33
Requesting Temporary Occupancy
34
Error Codes
34
Lock Symbol
34
Testing Signal Strength
34
Testing Battery Status
34
Maintenance and Troubleshooting
35
Locations of Leds, Test Button, Test Symbols, and Error Codes
35
Diagnostics
36
Testing Signal Strength
37
Testing Battery Status
38
24 V Power Status Indicator
39
Using the Wireless Sensor System to Check Signal Strength on a Site
39
Replacing Sensor Batteries
40
Battery Type
40
Battery Life
40
Battery Installation
40
Manual Association
41
Disassociation
41
Sensor/Receiver Compatibility
42
Replacing a Failed Sensor or Receiver
42
Servicing and Testing
42
Servicing and Testing Tools
42
Procedure for Testing the Wireless Sensor System
43
Procedure for Testing the Receiver
43
Forcing a Sensor to Transmit
43
Output Power Level
43
Output Values-Failure and Default Modes of Operation
44
Measuring Output Resistance
44
Cleaning the Sensor
46
Specifications
47
Appendix A: Wiring Diagrams
48
Single Transformer Wiring
48
Multiple Transformer Wiring
49
