Triumph Spitfire MK3 User Manual

LOCKS AND KEYS
16
This permits the bonnet to pivot on its anchorage to a vertical
position where it is held by a folding strut.

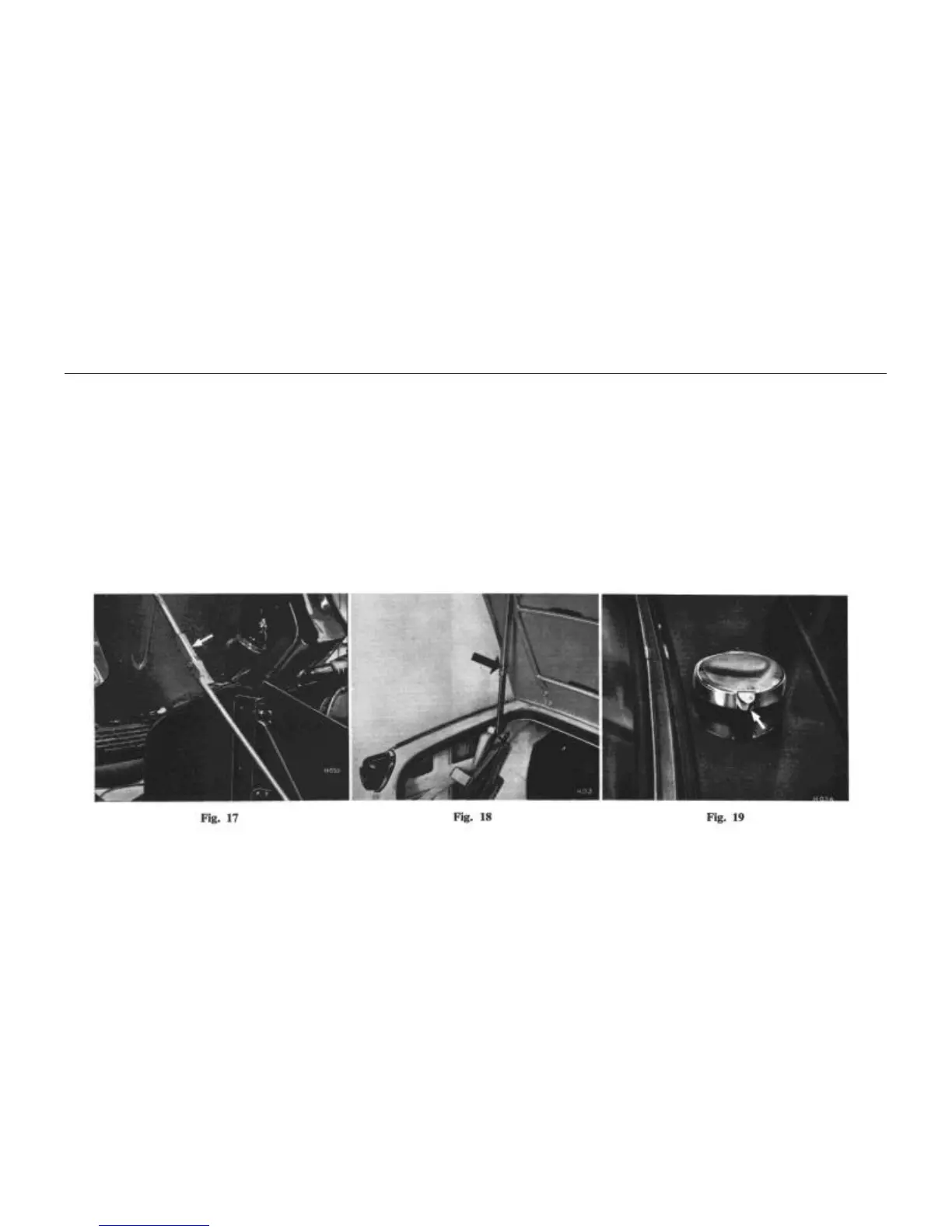

To close the bonnet, pull the centre of the strut (arrowed Fig. 17)
simultaneously supporting and lowering the bonnet. Press each lever
flush with the side of the bonnet to lock.
Luggage Compartment Lid (Fig. 18)
To open the luggage compartment lid, turn the unlocked
handle counter-clockwise to a vertical position and raise the lid to its
limit before lowering it on to the telescopic support.
Close the lid by raising it slightly to release the catch in the
telescopic support, lower, and turn the handle which may be locked
by turning the key a half turn counter-clockwise.
Fuel Filler Cap (Fig. 19)
The fuel filler cap, located forward of the luggage locker lid, is
opened by depressing a small lever at the side of the cap. Press the
cap to close.
