ELECTRICAL SYSTEM
39

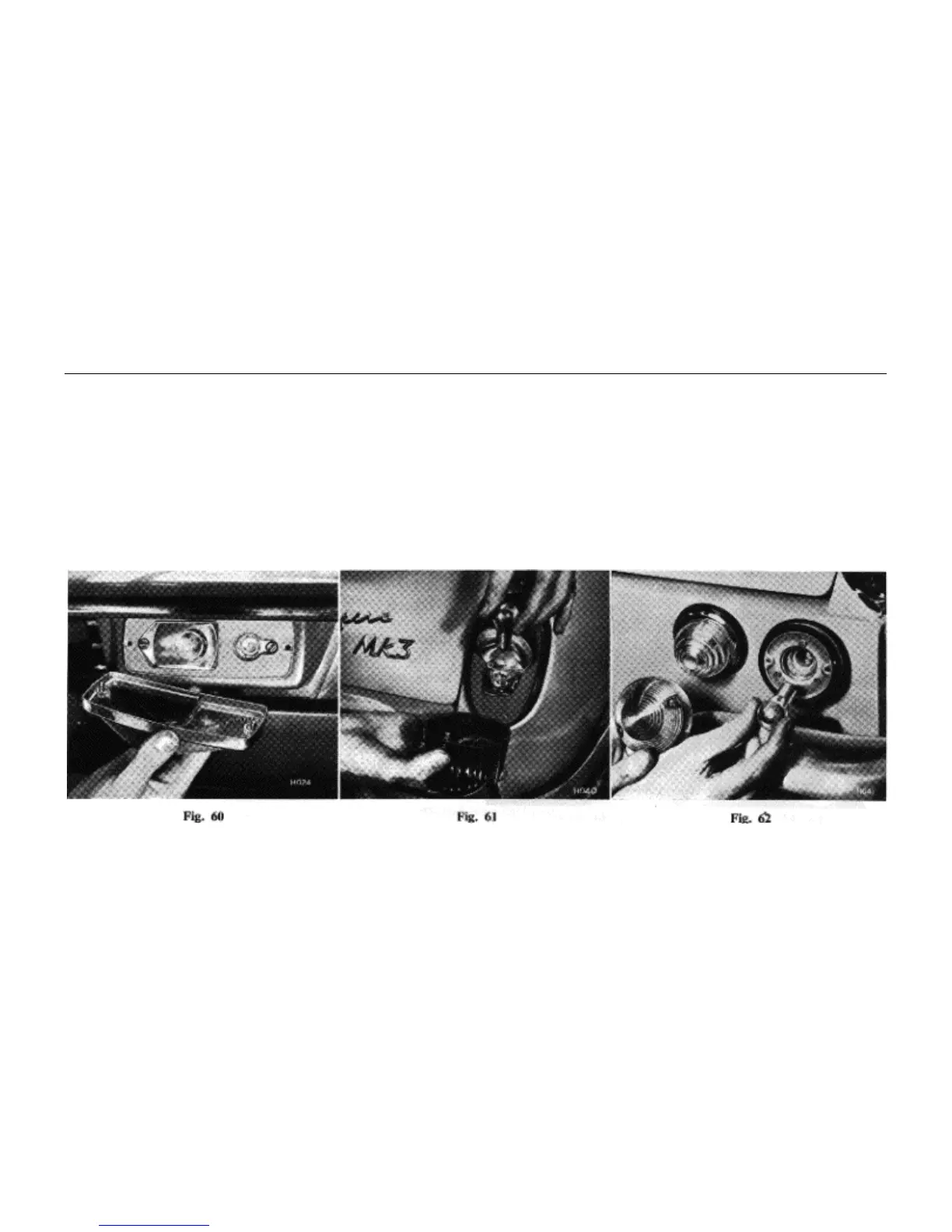

Side (Parking) and Direction Indicator Lamps (Front) (Fig. 60)
The side and flasher lamp has two bulbs incorporated in the
same housing. The parking bulb is accessible after two screws
have been removed from the rim, and the rim and lens lifted
away.
Tail Brake/Stop Lamp (Fig. 61)
Take out the screw and lift the lens away to gain access to the
bulb.
Rear Direction Indicator (Fig. 62)
Take out both screws and withdraw the lens to gain
access to the bulb.
Reversing Lamps (Fig. 63)
With the aid of a thin screwdriver turn back the rubber
and remove the rim. This then permits the glass lens to be
similarly removed. When re-assembling the components
fit the glass lens first.
