MAINTENANCE
159
To adjust the brake fluid level:
▼ Loosen the reservoir cap retaining
screws and remove the reservoir cap
and the diaphragm seal.
▼ Fill the reservoir to the upper level
line using new DOT 4 from a sealed
container.
▼ Reinstall the reservoir cap making
sure that the diaphragm seal is
correctly positioned between the
reservoir cap and the reservoir body.
▼ Tighten the reservoir cap retaining
screws to 9lbfin (1Nm).
Rear Brake Fluid Level Inspection
and Adjustment
Warning
If there has been an appreciable drop
in the level of the fluid in either fluid
reservoir, consult your authorized
Triumph dealer for advice before
riding.
Riding with depleted brake fluid levels,
or with a brake fluid leak is dangerous
and will cause reduced brake
performance potentially leading to loss
of motorcycle control and an accident.
The reservoir is visible from the right
hand side of the motorcycle, forward of
the muffler, below the rider’s seat.

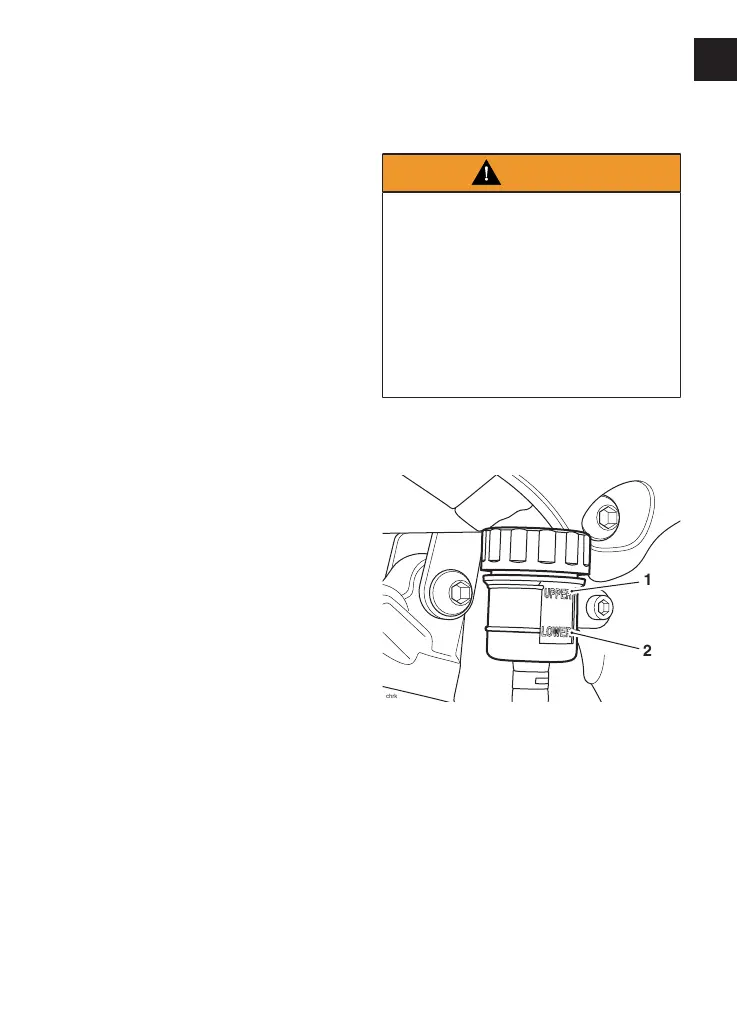

1. Upper level line
2. Lower level line
To inspect the rear brake fluid level:
▼ Check the level of brake fluid visible
in the reservoir.
▼ The brake fluid level must be kept
between the upper and lower level
lines (reservoir held horizontal).
