MAINTENANCE
186
Headlight Adjustment
The vertical beams of the left and right
hand headlights can only be adjusted
together. Independent adjustment is
not possible.

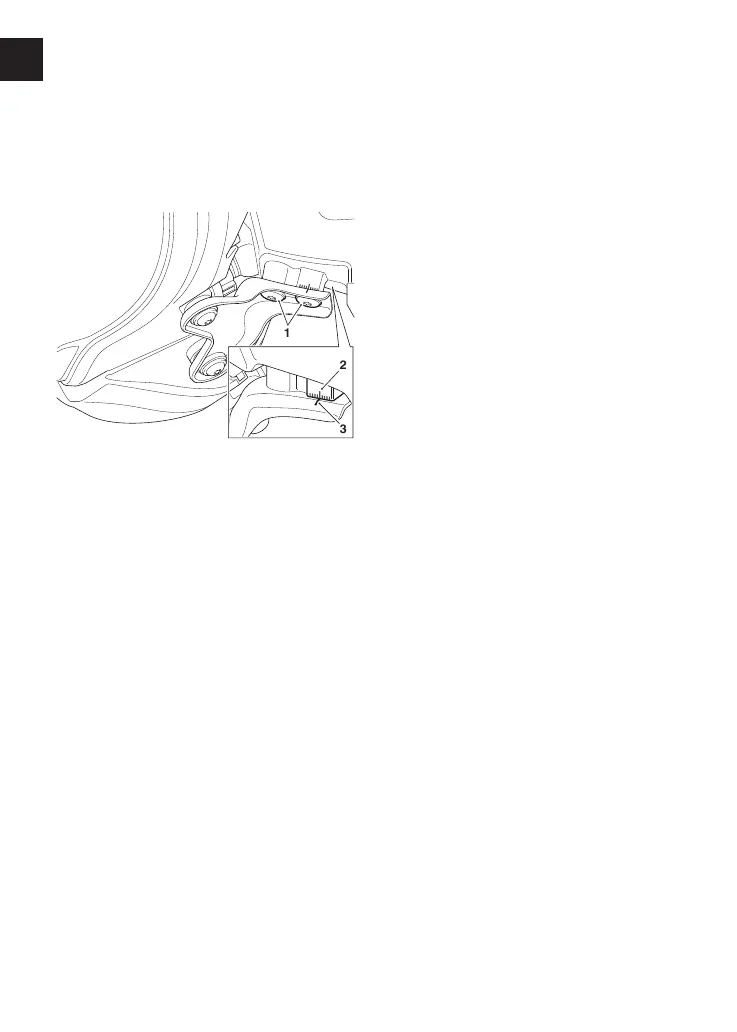

1. Headlight bracket bolts
2. Front subframe alignment marks
3. Headlight bracket mark
To vertically adjust the headlights:
▼ Switch the ignition on. The engine
does not need to be running.
▼ Switch the headlight dipped beam on.
▼ Loosen the two headlight bracket
bolts securing the headlight bracket
to the front subframe sufficiently to
allow restricted movement of the
headlights.
▼ Using the headlight bracket mark
and the alignment markings on the
front subframe, adjust the position of
the headlights to give the required
beam setting. Each alignment mark
on the subframe represents 1°.
▼ Moving the headlight bracket
forwards moves the headlight
upwards. Moving the headlight
bracket rearwards moves the
headlights downwards.
▼ Tighten the headlight bracket bolts
to 62 lbf in (7Nm).
▼ Recheck the headlight beam settings.
▼ Switch the headlights off when the
beam settings are satisfactorily set.
Headlight Replacement
The headlight unit is a sealed,
maintenance free LED unit. The
headlight unit must be replaced in the
event of the failure of the headlight.
