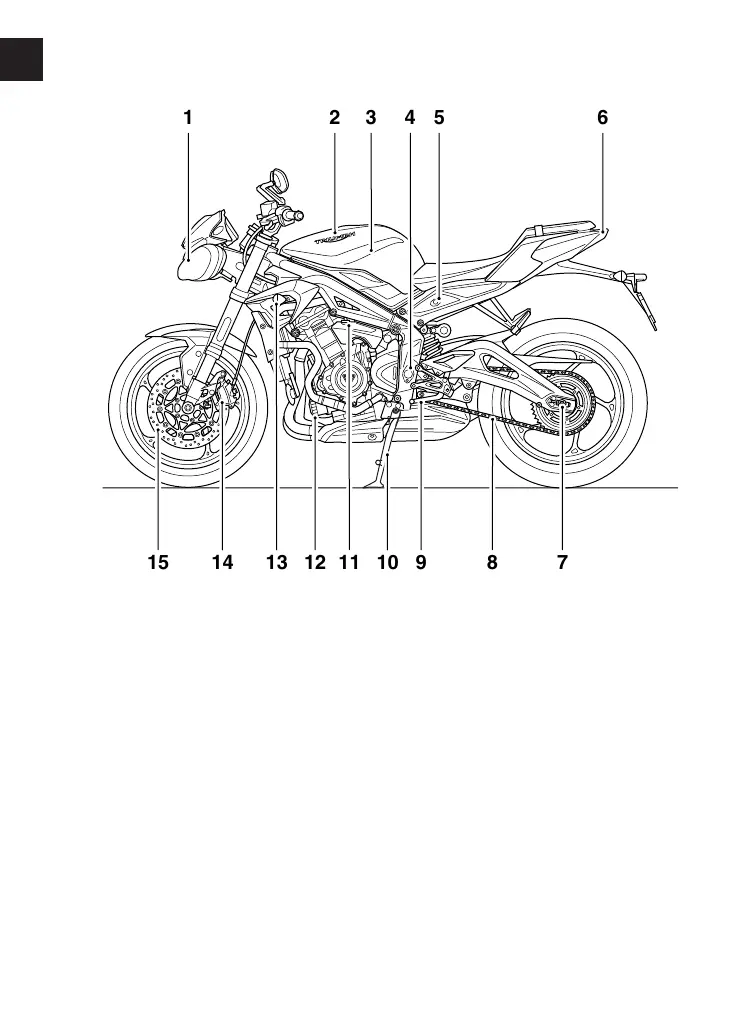

PARTS IDENTIFICATION
16
2 3 4 5 6
12
11 9 8
7
14 13
1
1015
1. Headlight
2. Fuel filler cap
3. Fuel tank
4. Rear suspension unit
5. Seat lock
6. Tail light
7. Drive chain adjuster
8. Drive chain
9. Gear shift pedal
10. Side stand
11. Coolant expansion tank
12. Oil filter
13. Front turn signal
14. Front brake caliper
15. Front brake disc
