Maintenance and Adjustment
143
To allow access to the fuse box, the seat
must be removed (see page 72).
9
12
3
45
6
7
8

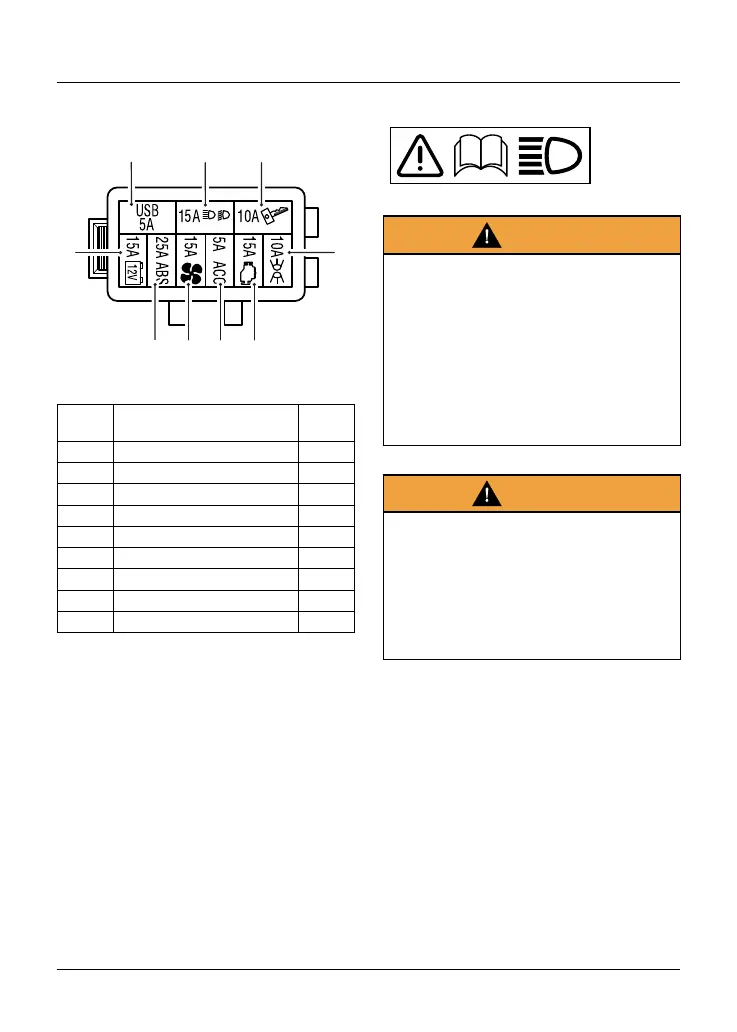

Fuse Box
Position Circuit Protected
Rating
(Amps)
1 Dip and high headlight beams 15
2 Ignition switch, starter circuit 10
3 Auxiliary lights 10
4 Engine management system 15
5 Accessory socket 5
6 Cooling fan 15
7 ABS 25
8 Instruments and alarm 15
9 USB port socket 5
Headlights
Warning
Adjust road speed to suit the visibility
and weather conditions in which the
motorcycle is being operated.
Make sure that the head light beam is
adjusted to illuminate the road surface
sufficiently far ahead without blinding
oncoming traffic.
An incorrectly adjusted headlight may
impair visibility causing an accident.
Warning
Never attempt to adjust a headlight
beam when the motorcycle is in
motion.
Any attempt to adjust a headlight
beam when the motorcycle is in
motion may result in loss of control
and an accident.
