• Gently push the luggage rack
forward until the locating lugs are
secure.
3
1
5
42

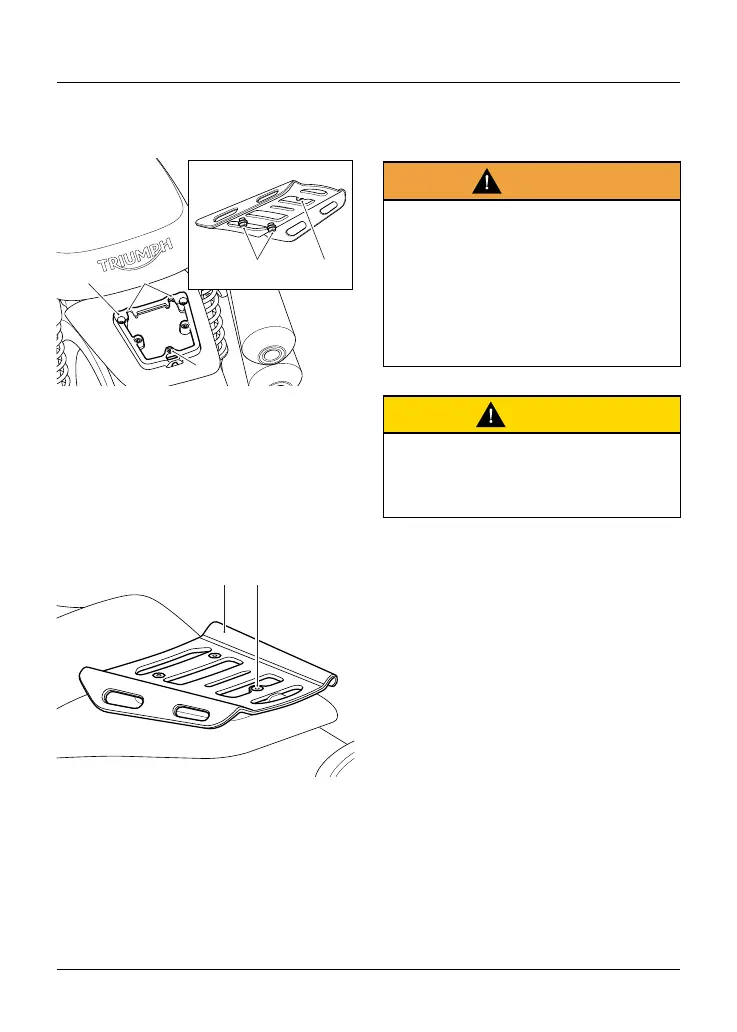

1. Luggage rack subframe
2. Locating lugs
3. Locating lug slots
4. Locating screw position
5. Locating screw hole
• Secure the luggage rack with its
screw in the locating screw hole and
tighten to 71 lbf in (8 Nm).
21
1. Luggage rack
2. Screw
• Grasp the luggage rack and make
sure that it is securely retained.
Universal Serial Bus (USB)
Socket
Warning
The USB socket is not waterproof
unless the waterproof cap is installed.
Do not connect electronic devices
while it is raining.
Water in the USB socket could lead
to an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
Caution
Do not leave the ignition switch in
the ON position unless the engine
is running as this will discharge the
battery.
