Union Community AC-7000 User Manual

AC-7000 User guide 42
㈜Union Community / Hyundai Topics building 5
th
floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@unioncomm.co.kr
http://www.unioncomm.co.kr

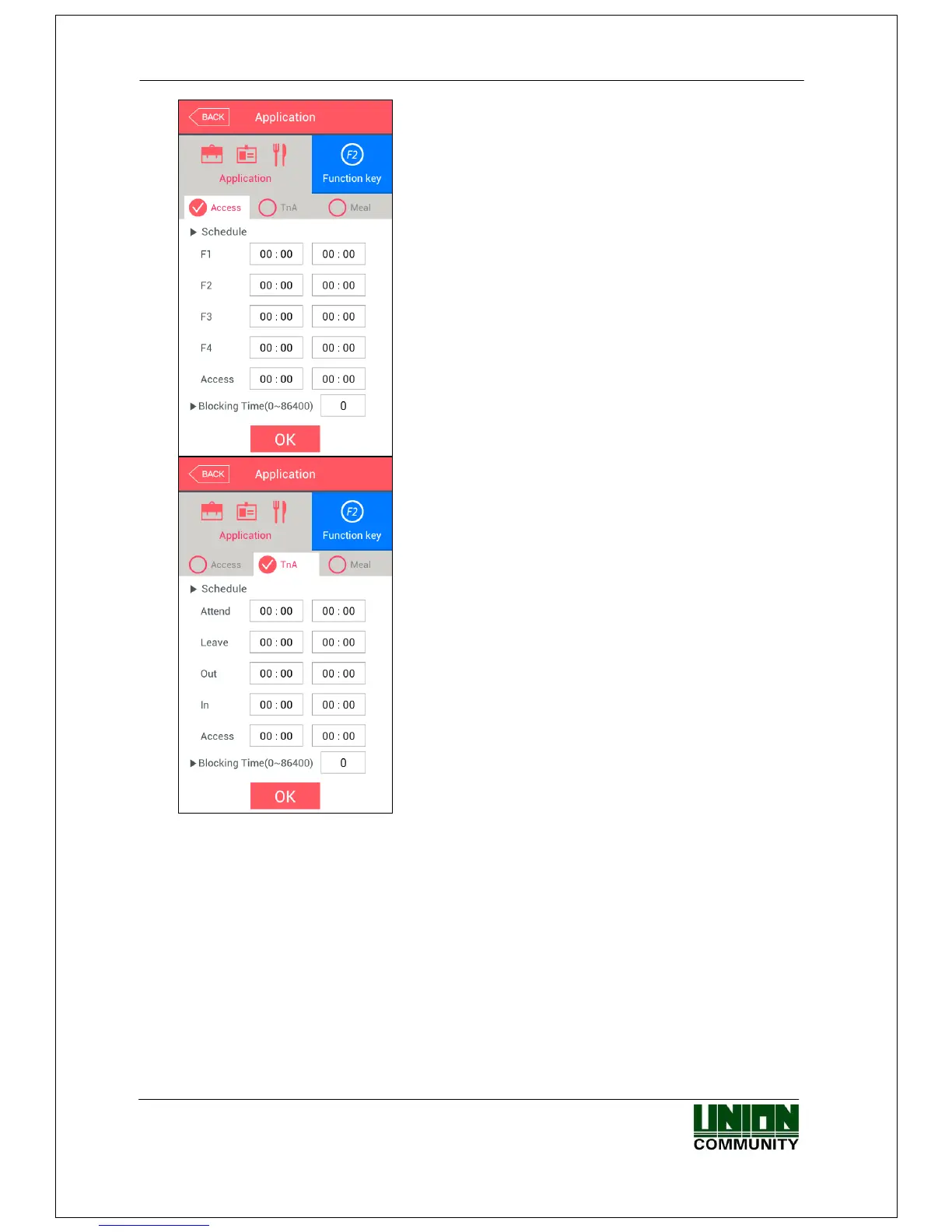

It is the screen appearing when you select the Access.
Click [OK] button to apply the changes, and click
[BACK] button to cancel and return.
▶ Basic setting : Same with the window at the left side
It is the screen appearing when you select the [TnA].
Click the [OK] button to apply the changes, and click
[BACK] button to cancel and return.
▶Schedule setting (00:00~23:59): You can set the time for each authorization mode and
if you do not need the function, set ‟00:00-00:00‟.
During the set time, the set mode is always shown unless clicking another function button,
and it is convenient for the TnA management because the indication mode is changed to
the set authorization mode automatically though another mode was authorized by
clicking another function key. The time periods should not be overlapped, but if they are
overlapped, the application order is Attend->Leave->Out->In->Access. If the time is set
between 23:00~01:00, it means from 23:00 to the 01:00 the following day.
▶Blocking time: This function prevents the same user to authorize again in the set time.
There is no restriction if it is set 0, but if it is set bigger than 0, the user can authorize

Union Community AC-7000 Specifications

General

Brand	Union Community
Model	AC-7000
Category	IP Access Controllers
Language	English
