Click the [Close] or [BACK] button to finish the inquiry and move to the upper menu.

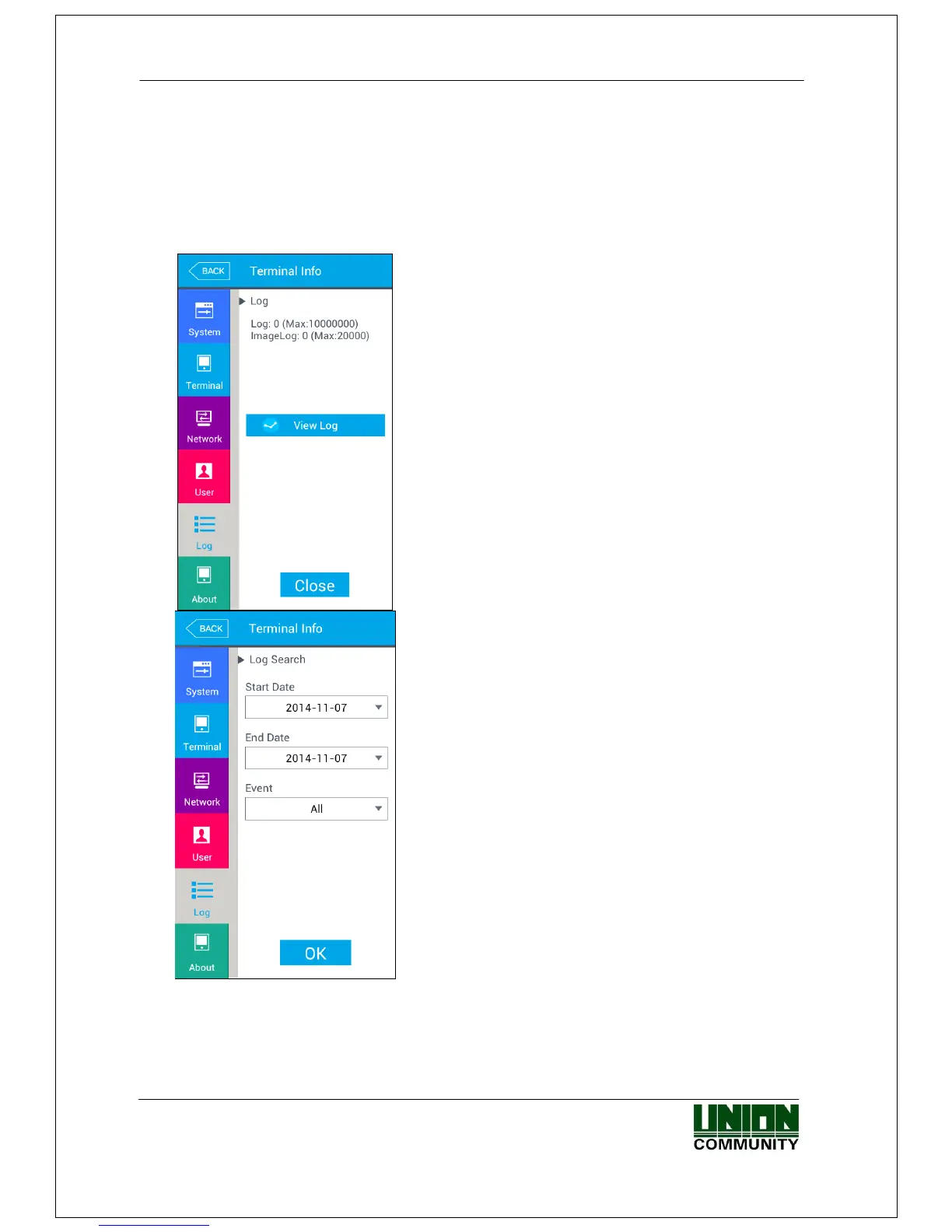

3.9.5. Log information
If you select the [Terminal information] -> [Log] in the main menu, the following
window appears.
▶Log
Log: The number of logs saved in the terminal
Image Log: The number of image logs saved in the
terminal.
(Max means the maximum number of items which
can be saved in each item.
▶View Log
Displays log time and authentication result
▶ Log Search
To search log, follow the following steps,
[info] Æ [Log] Æ [View Log] Æ [Log Search]
and set the start date, end date and event
criteria and click [OK].

Union Community AC-7000 Specifications

General

Brand	Union Community
Model	AC-7000
Category	IP Access Controllers
Language	English
