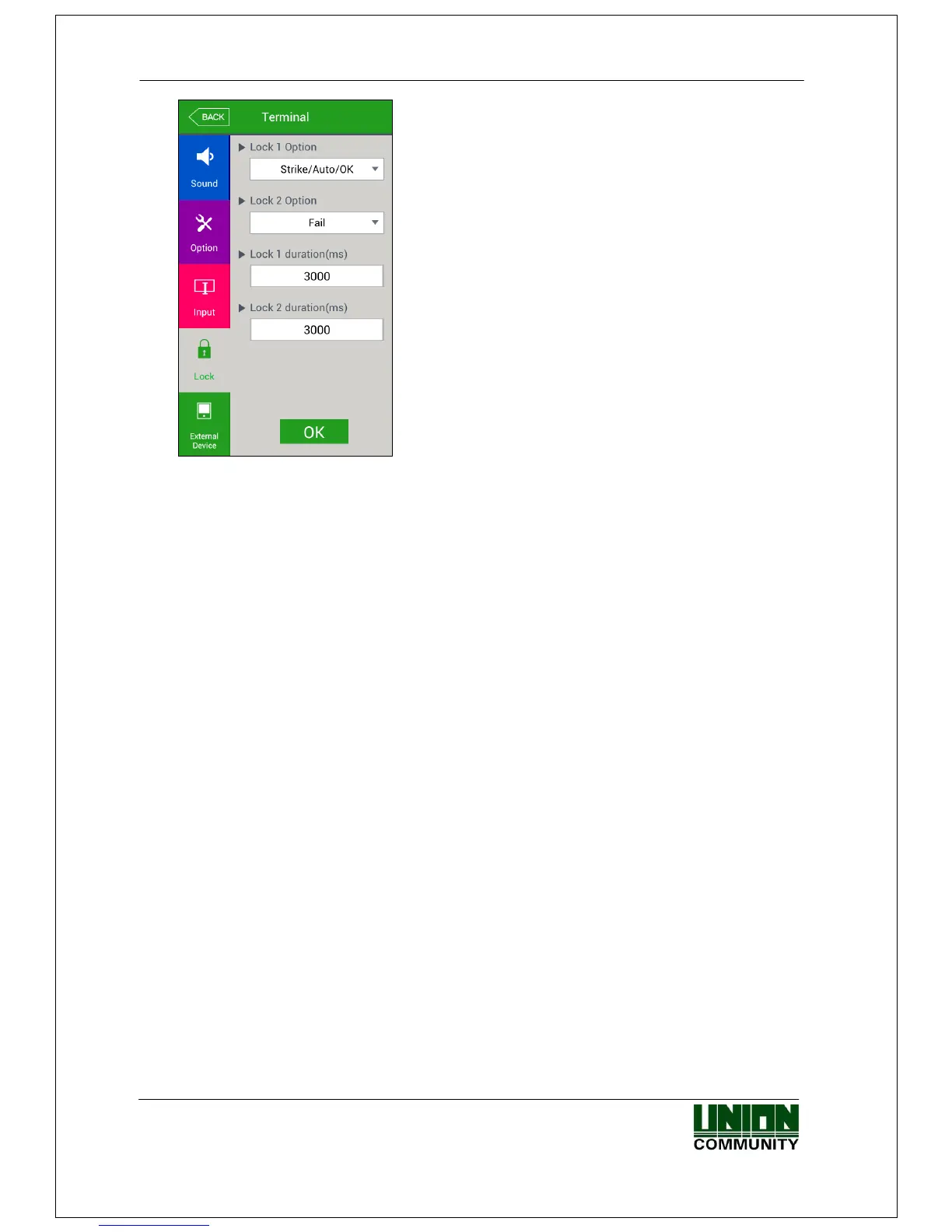

▶ Basic setting : Same with the window at the left
side.
▶Lock1 option
- None: When it is not used
- Strike/Auto/OK: When the warning light is connected to indicate the strike type,
auto door, or authorization success/failure on Lock1.
- Motor lock 1: When the motor lock is connected.
- Regular notification: When the siren setting of the terminal option was sent to the
terminal, it sends the operating signal about it.
▶Lock2 option
- None: When it is not used
- Authorization fail notification: When the warning light was connected to indicate the
authorization failure on Lock2.
- Motor lock 2: When the motor lock is connected
- Regular notification: When the siren setting of the terminal option was sent to the
terminal, it sends the operating signal about it.
▶Lock 1 time (ms unit)
When Lock 1 is set „Strike/Auto/OK‟, it determines the signaling time. Because it is set
in ms unit, if you want to set 3 seconds, you should set 3000. The strike type means
the time until the door is locked again when opening the door after authorization.
▶Lock 2 time (ms unit)
It sets the signaling time when Lock 2 is set „Authorization failure notification‟.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
Because it is set in ms unit, if you want to set 3 seconds, you should set 3000.
3.7.5. External terminal setup
If you select the [Terminal]->[External device] in the main menu, the following
