▶Lock 2 duration (ms)
It sets the signaling time when Lock 2 is set ‘Authentication failure notification’.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
Because it is set in ms unit, if you want to set 3 seconds, you should set 3000.
3.7.5. External Device

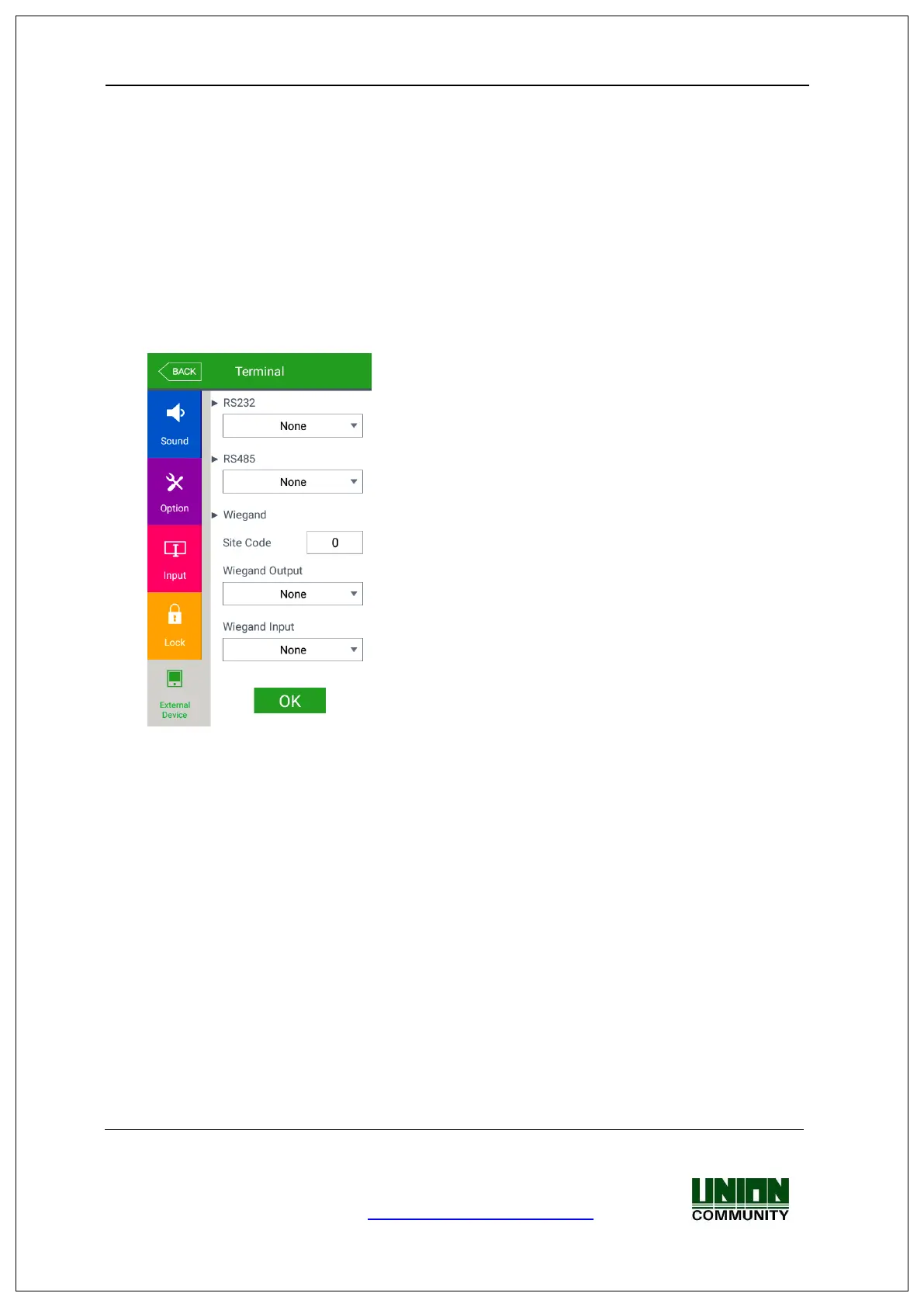

If you select the [Terminal]  [External device] in the main menu, the following
window appears.
▶Basic setting : Same with the window at the left
side
▶RS232: It sets the device connected to RS232 port
-None: When there is no device connected to the RS232 port
-Ticket Format1/ Ticket Format2: The authentication result is printed when the
authentication is successful. The terminal ID, user ID, authentication time, and
authentication mode are printed by the printer connected to the RS232 port.
The printing format differs as per the setting, and when setting as [Ticket
Format2] the “text for meal printer” which was set from the terminal option,
becomes the title on the top side. The printer used to print ticket is “SRP-350” serial
type model.
▶RS485: It sets the connecting device to RS485 port.
- None: When there is no device connected to RS485.
- LC010: When LC010 is connected.
- LC015: When LC015 is connected
- Reference: If you set DM0: [Door Open NO] or [Door Open NC], when using
LC010, LC015, it gets the status of door open via DM0. If you want to get the status of
door open from the controller, you shouldn’t set DM0.
