Unitech HT682 User Manual

WiFi Connection
Unitech PDA Scanners come with built-in RF facility, Summit or Marvel. A wireless network can
be added either when the network access point is detected or by manually entering setting
data. Before following these instructions, make sure if authentication information is needed.
Here, you can use, for example, the Summit Client Utility tool to do or change the WiFi
settings.

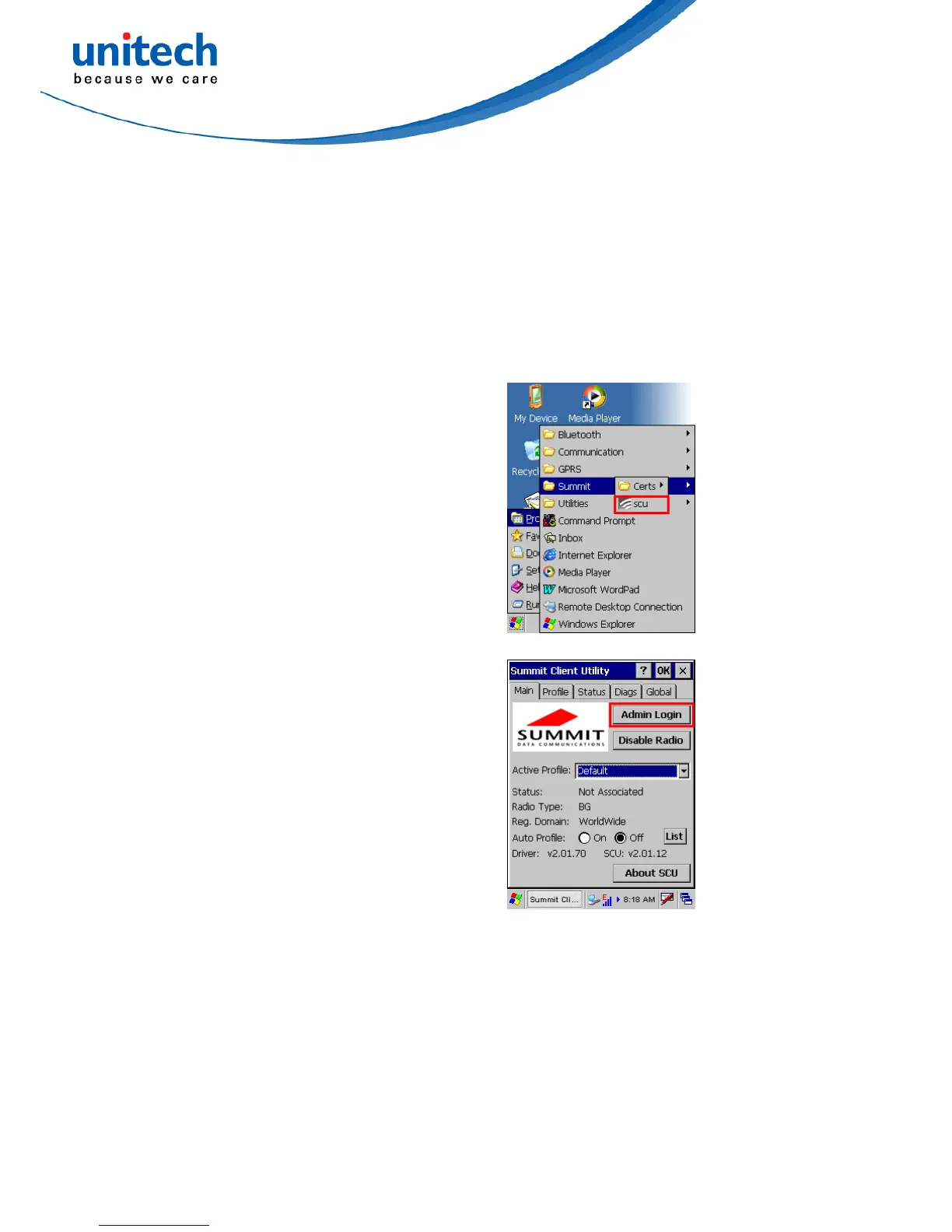

Admin Login
1. Tap Start → Programs → SUMMIT →
scu.
2. To login as an administrator, tap
A
dmin
Login.
28

Unitech HT682 Specifications

General

Certification	CE, FCC, BSMI, VCCI, CCC, SRRC, RoHS
Product color	Black
LED indicators	Yes
Phone function	-
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI, PLANET, POSTNET, U.P.C.
International Protection (IP) code	IP65
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Code 49, Composite Codes, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Display diagonal	2.8 \
Display resolution	- pixels
Speakers	Mono
ROM capacity	512 MB
Internal memory	0.512 GB
Internal memory type	SDRAM
Compatible memory cards	SDHC
Maximum memory card size	32 GB
Processor family	OMAP AM3703
Processor frequency	0.8 GHz
USB 2.0 ports quantity	1
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	- mAh
Data network	EDGE, GPRS, GSM, HSDPA, UMTS
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.1+EDR
GSM bands supported	850, 900, 1900, 2100 MHz
Security algorithms	AES, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP, WEP, WPA, WPA2
Operating system installed	Windows Embedded Compact Professional 6.0 R3

Weight and Dimensions

Depth	30 mm
Width	55 mm
Height	170 mm
Weight	- g
