Unitech MS100 User Manual

35MS100 Manual

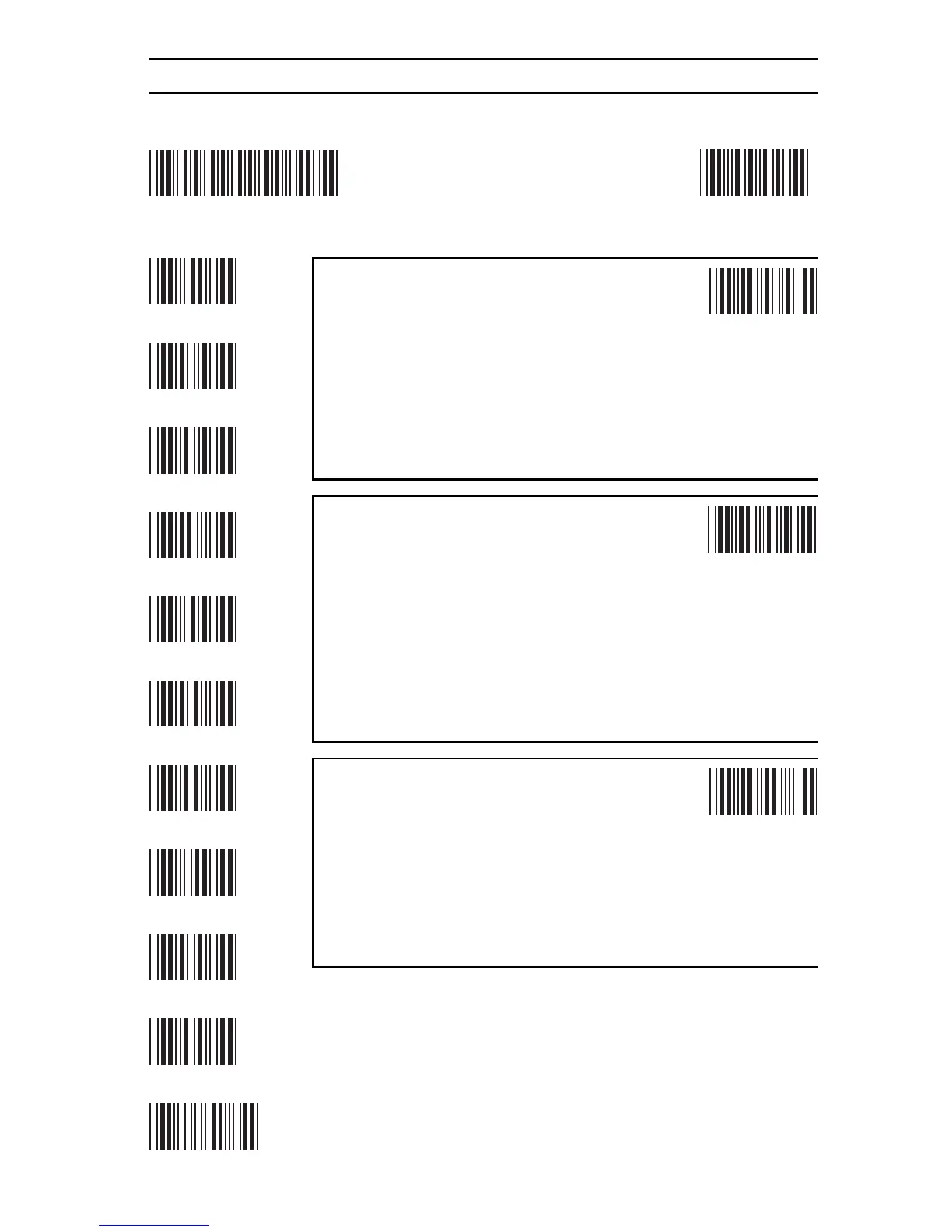

Symbologies:
Code 39 / I 2 of 5 / S 2 of 5 / Code 32 / Telpen / UCC/EAN128
Group Default Enter Group 6
0
1
2
3
4
5
6
7
8
9
:
Standard 2 of 5
China Postal Code (Toshiba Code):
1 ~ 48 - Min. Length 4 / Max. Length 48
6 - Check Digit not Calculate
5 - Check Digit Calculate, not send
4 - Check Digit Calculate & Send
2/3 - Fix Length On / Off ( by first three reads)
0/1 - Disable/Enable
(See next page for Min./Max. Length procedure)
F3
F2
2 ~ 64 - Min. Length 10 / Max. Length 64
Interleaved 2 of 5 (ITF):
0/1 - Disable / Enable
2/3 - Fix Length On / Off (by first three reads)
4 - Check Digit Calculate & Send
5 - Calculate Check Digit, Not Send
6 - Check Digit Not Calculate
7 - Suppress First Digit
8 - Suppress Last Digit
9 - Last Digit Not Suppressed
(See next page for Min./Max. Length procedure)
F1
0 ~ 48 - Min. Length 0 / Max. Length 48
Code 39:
0/1 - Disable / Enable
2/3 - Full ASCII / Standard
4 - Check Digit Calculate & Send
5 - Check Digit Calculate, Not Send
6 - Check Digit Not Calculate
7/8 - Send / No Send Start/Stop
9/: - Double Labels Decoding Off / On
(See next page for Min./Max. Length procedure)

Unitech MS100 Specifications

General

Wavelength	660 nm
Sensor type	Photo diode
Tilt reading angle	45 - 90 °
Dimensions (WxDxH)	140 x 30 x 23 mm
Cable length	1.80 m
Standard interfaces	RS-232
Power consumption	800 mA
Power requirements	5V DC
Product color	Black, Blue
Housing material	Plastic
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	76.5 g
