2/5
C
ONTENT OF
C
HANGES
:

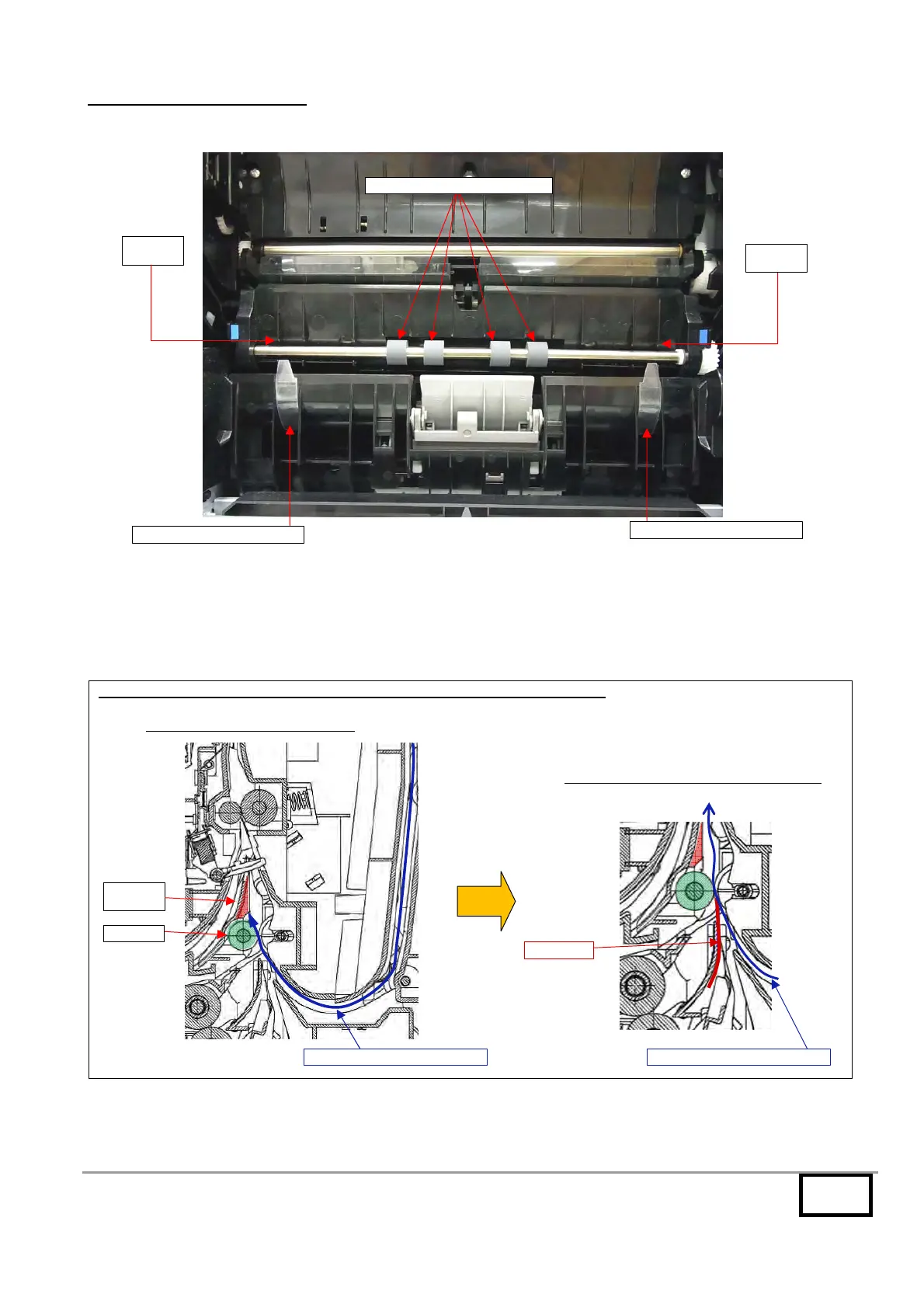

(Machine rear side without the rear cover unit and the paper conveying unit.)
Affix the above duplex sheets to the lower parts than where the paper's corners at the machine left and right sides pass
through the middle roller.
Accordingly, the paper convey can be assisted by the duplex sheets so that the leading edge's corner of the second side of
duplex print does not bump to the chamfer of the rib (X) even if it bends extremely downward (in the chamfer direction).
Chamfer of
the rib (X)
Chamfer of
the rib (X)
Middle roller (pulleys pressing paper)
Right duplex sheet (Bundled in No.1)
Left duplex sheet (Bundled in No.1)
Cross-section view (The middle roller section's view from the machine right side)
Before: When the dog-year arises
After: When the duplex sheets are affixed
Chamfer of
the rib (X)
Middle roller
Paper path of the leading edge's corner Paper path of the leading edge's corner
Duplex sheets
NEW
To Next Page
