ISD Reports Viewing ISD Reports via RS-232 Connection
40
.

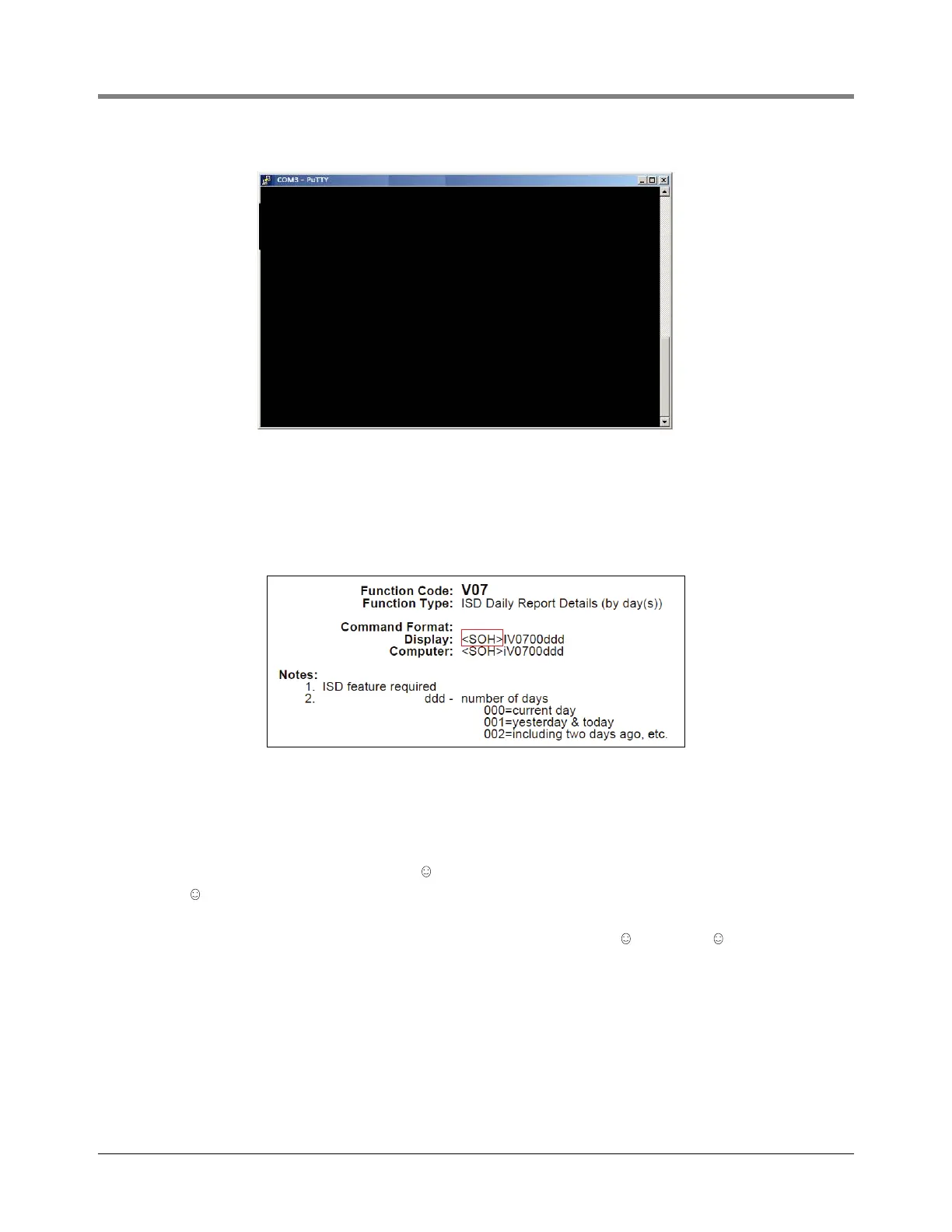

Figure 4. PuTTY Terminal Window
SENDING CONSOLE COMMANDS
Figure 5 shows Display Command Format for the ISD console command: IV0700. ISD Daily Report Details. The
<SOH> circled in the figure means that you must press and hold the Ctrl key while you press the A key.
Figure 5. Example Serial Command for IV0700
For example, let’s say you want to see the Daily Report Details for the last 10 days.
If the RS-232 Security Code is disabled - press and hold the Ctrl key while you press the A key, then type in
IV0700010. If the RS-232 Security Code is enabled (e.g., 000016) you must enter the security code before the
command - press and hold the Ctrl key while you press the A key, then type in 000016IV0500010.
You will see the typed command on the screen: followed by the response (report) from the
console. The symbol indicates Crtl A and the symbol indicates the end of the response.
If the console recognizes the command the response displays as soon as the command is typed in.
If the console does not recognize the command you would see something like
which indicates the console did not recognize the command.
All responses (Reports) can be printed or saved to a file. See the terminal program’s help file for instructions.
IV0700010
