Vertiv | eSure™ Rectifier Module User Manual (UM1R483500e3) | Rev. H

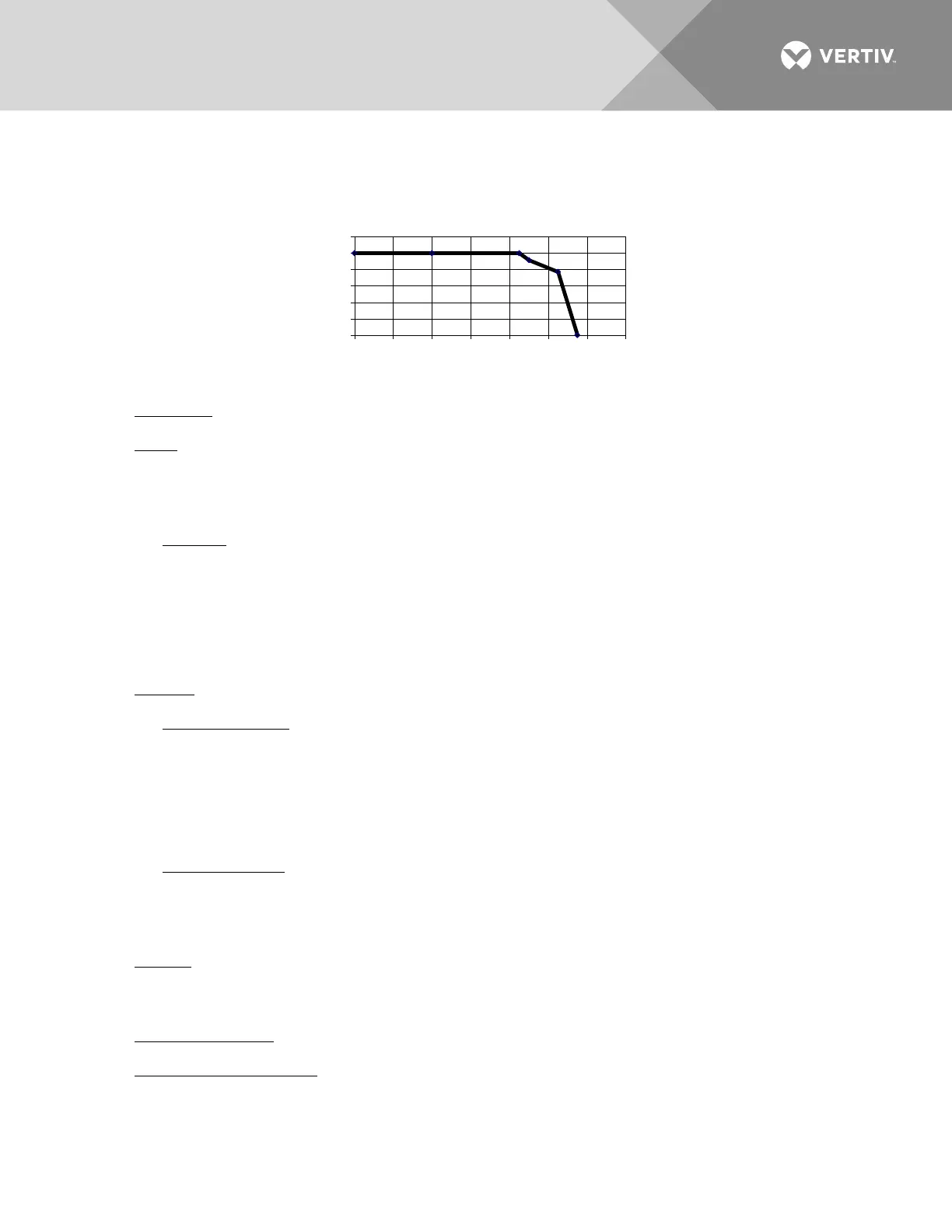

Figure 3:
Power Derating Based on Temperature
• Regulation:
a) Static: Steady state regulation is ±0.6% as controlled within the rectifier for any and all combinations of
load from no load to full load, input voltage, and input frequency at a constant ambient temperature.
With controller, the output voltage shall remain within ±0.5% of the set point over the specified ranges of
input line voltage, output load current and ambient temperature.
b) Dynamic: Response time ≤200 microseconds and overshot ≤5% for load changes at 50% - 25% -
50% and 50% - 75% - 50% at rated output voltage and current.
For any step load change within the range of 10% to 90% of full load within 1 milliseconds, per
Telcordia GR-947-CORE, the maximum voltage transient will not exceed 5% of the initial steady
state voltage within 250±10 microseconds. Recovery to within 1% of the initial steady state voltage
does not exceed 4 milliseconds.
• Filtering:
a) Voice Band Noise: Complies with YD/T-731-2008.
1. Peak-peak voltage is ≤200 mV at 0 MHz - 20 MHz and normal output voltage. (YD/T-731-
2008)
2. Psophometric noise is ≤2 mV typical at 220 VAC input, 53.5 VDC output and 20% to 70% of
rated load for more than one rectifier.
b) Wide Band Noise: Complies with YD/T-731-2008.
1. Wideband noise emission is < 20 mV between 25 Hz - 20 kHz according to ETS 300132-2.
AC Input Ratings
• Voltage: Nominal 208 VAC / 220 VAC / 230 VAC / 240 VAC / 277 VAC, single phase, 3-wire, 50 Hz / 60
Hz, with an operating range of 200 VAC to 305 VAC. Acceptable input frequency range is 45 Hz to 65
Hz.
Permitted Variation: 85 VAC to 305 VAC.
Harmonic Content (THD): Meets EN61000-3-2.
≤5% from 50% to 100% of rated output current at 208 VAC, 220 VAC, 230 VAC, 240 VAC, 277 VAC for
50 Hz, 60 Hz, 53.5 VDC and 25 °C;
≤10% for 30% rated output current at 220 VAC, 50Hz, 53.5 VDC and 25 °C.
0
20
40
60
80
100
120
-40 -20 0 20 40 60 80 100
% of output power
Temperature (
)
Output power vs. Temperature at 290 Vac ≥ Vin ≥
176Vac and 58V ≥ Vout ≥ 48V
