37
4.8 Installing a Front Door Kit
Perform the following procedure to install a front door kit P/N 10010293, 10010294, 10010295, or 10010296.
Procedure
1. Refer to Figure 4.27 or Figure 4.28 to install the front door kit. After securing the door grounding cable, ensure that when the
door is closed the ground cable is not pinched.

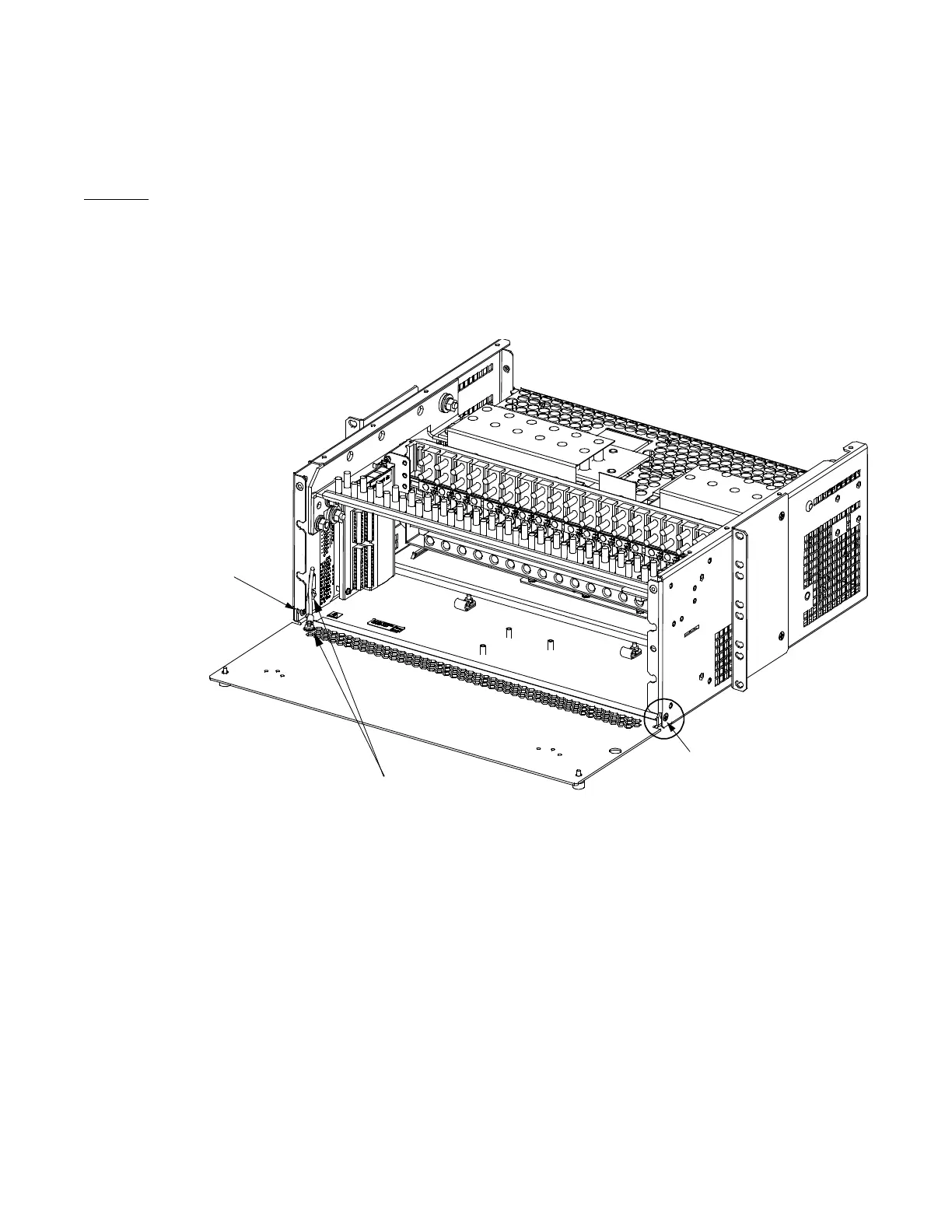

Figure 4.27 Installing Door Kit P/N 10010292 or 10010294
M3 Screw
Torque to 5.2 in-lbs.
1. Secure bottom of door
to cabinet with provided
sc
rew.
2. Secure door grounding
strap to door and cabinet.
6-32 Nut with Washer
Torque to 9.6 in-lbs.
List 20 shown, List 25 and 27 similar.
Components removed in
illustration for clarity only.
Remove the protective covering
from the door painted area.
Apply electrical anti-oxidizing
compound to mating surfaces.
M3 Screw
Torque to 5.2 in-lbs.
1. Secure bottom of door
to cabinet with provided
screw.
