Vespa LX Series User Manual

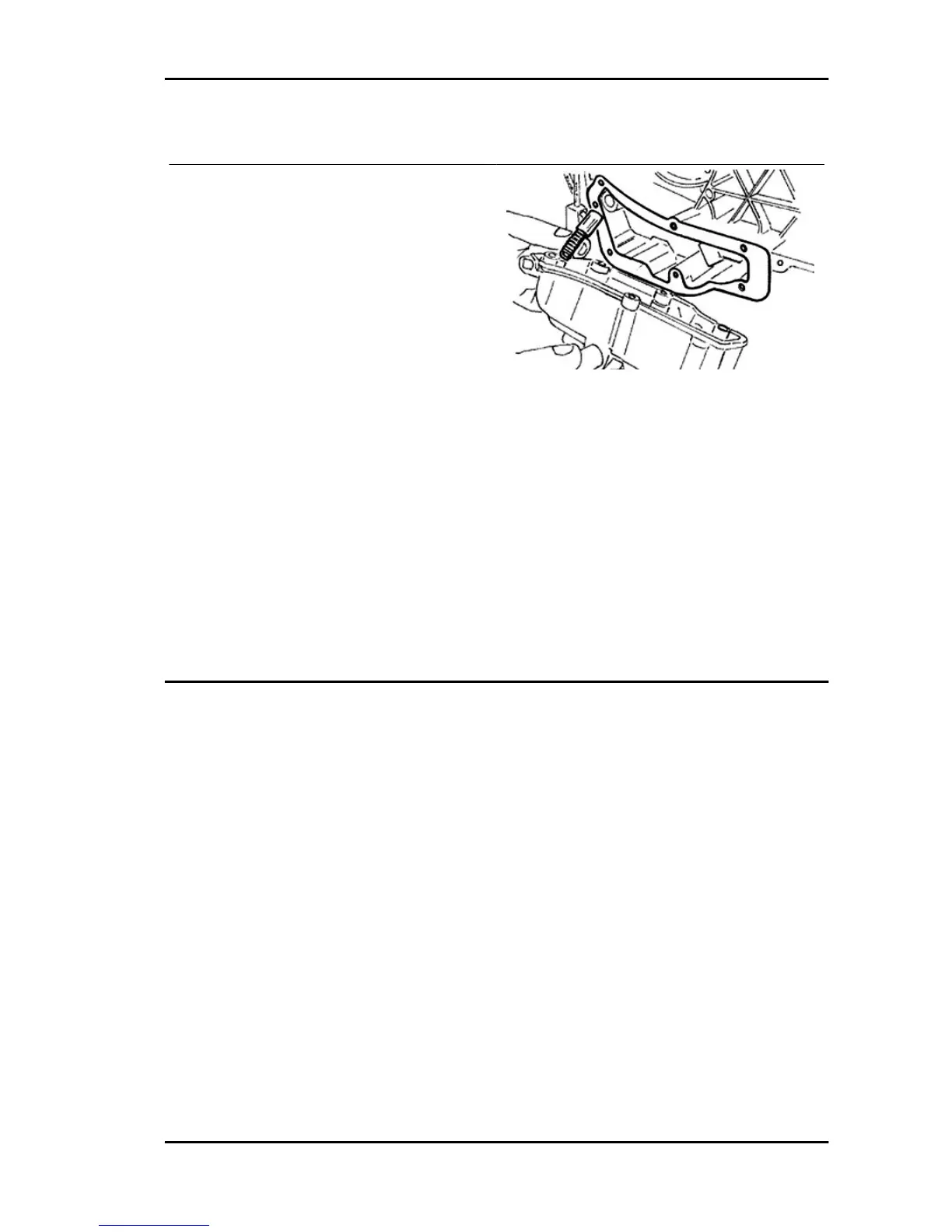

Refitting the oil sump
- Refit the by-pass piston in its housing.
- Insert the pressure-regulating spring.
- Fit a new sump seal.
- Refit the sump, taking care to locate the spring in
the appropriate recess machined into the inside of
the sump.
- Refit the rear brake transmission mounting brack-
ets and the screws in the reverse order from which
they were removed.
- Tighten the screws to the prescribed torque.
- Refit the driving pulley assembly, the drive belt,
the sprocket wheel and the transmission cover, as
described in the "Transmissions" chapter.
- When testing the lubrication system, refer to
the "Crankcase and Crankshaft" chapter, re-
garding lubrication of the crankshaft and con-
necting rod
Locking torques (N*m)
Locking torque 11 to 13
Vespa LX 125 - 150 i.e. Engine
ENG - 145

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
