9. Engine temperature sensor
10.incomplete
11.(+) lambda probe
12.Engine stop switch
13.(+) engine speed sensor
14.(-) fuel injector
15.(-) engine speed sensor
16.Diagnostics output
17.Immobilizer LED
18.Pin short-circuited with pin 26
19.(-) low-beam automatic ignition
20.(-) injection load remote control
21.Lambda probe
22.(-) HV coil
23.incomplete
24.Start up enabling
25.incomplete
26.Ground lead

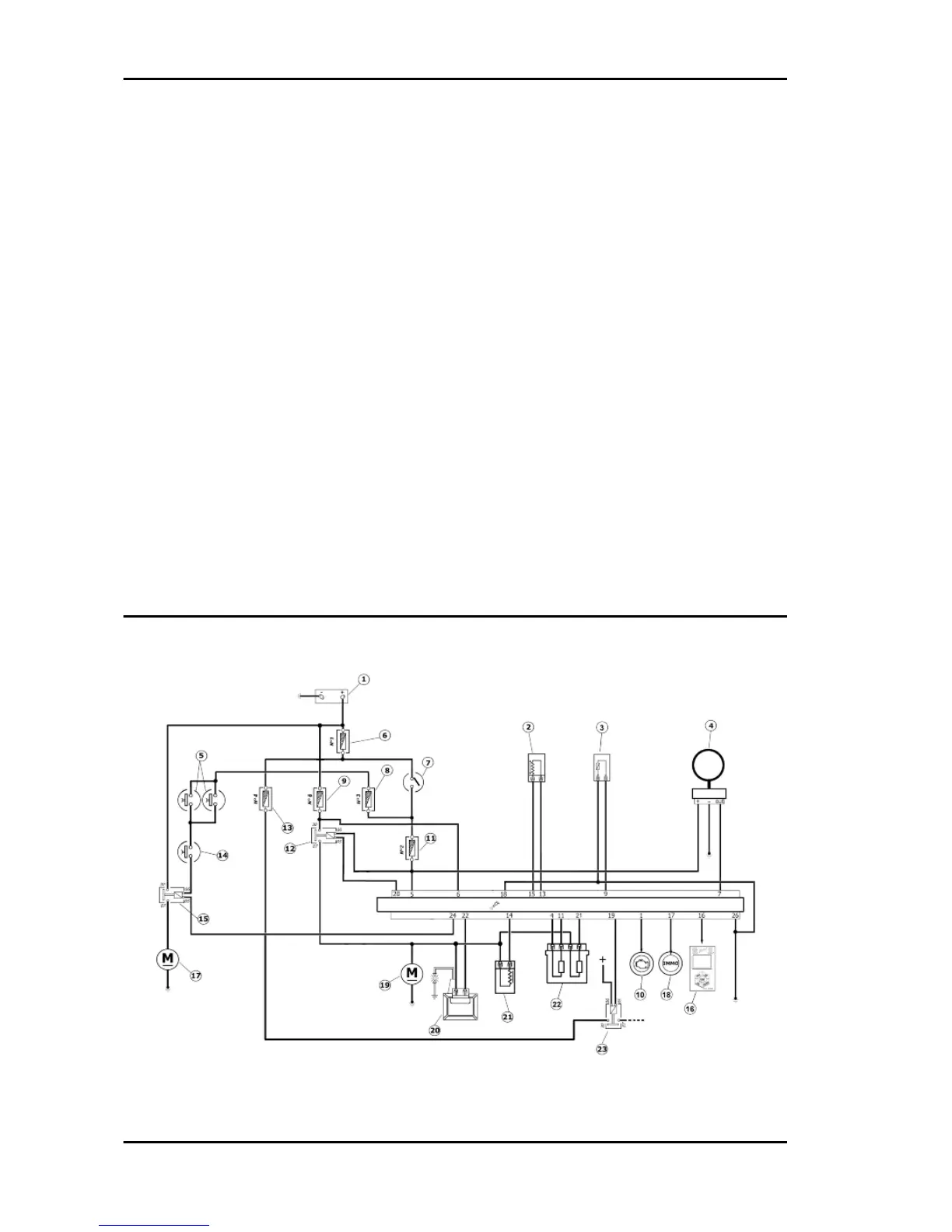

EMS circuit diagram
1. 12V - 10Ah Battery
Injection Vespa LX 125 - 150 i.e.
INJEC - 152

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
