Vogt VT40 Service Manual

5-8 Vogt
®
VT Service Manual
Electrical Controls
Lowside Control Panel Parts
BC 12A2117G09 Ice Bin Control
CB3/CB4 12A7515E21 Control Circuit Breaker – 2 pole (3 Amp)
CSR 12A7507S07 Current Sensing Relay (cutter/chopper motor)
CU 12A7516E23 Cutter Motor Contactor
E-STOP 12A7500E75 Contact Block/Mounting Latch, 1NC (CE Machine only)
12A7500E130 Push Button, Push-Pull
P 12A7516E23 Pump Motor Contactor
PB1 12A7500E56 Manual Harvest (Start) Button
12A7500E75 Contact Block, 1 N.O. (for Manual Harvest Button)
PLC 12A7536M01 Programmable Logic Controller
HH 12A2117B03 Harvest Hold Pressure Switch – Open on Rise
SS 12A7500E61 3 Position Selector Switch
12A7500E73 Contact Block, 2 N.O. (for Selector Switch)
TB N/A Terminal Block
1LT 12A7520E33 Machine Fault Indicator Light, 250V, Red
2LT 12A7520E34 Control Power Indicator Light, 250V, Amber

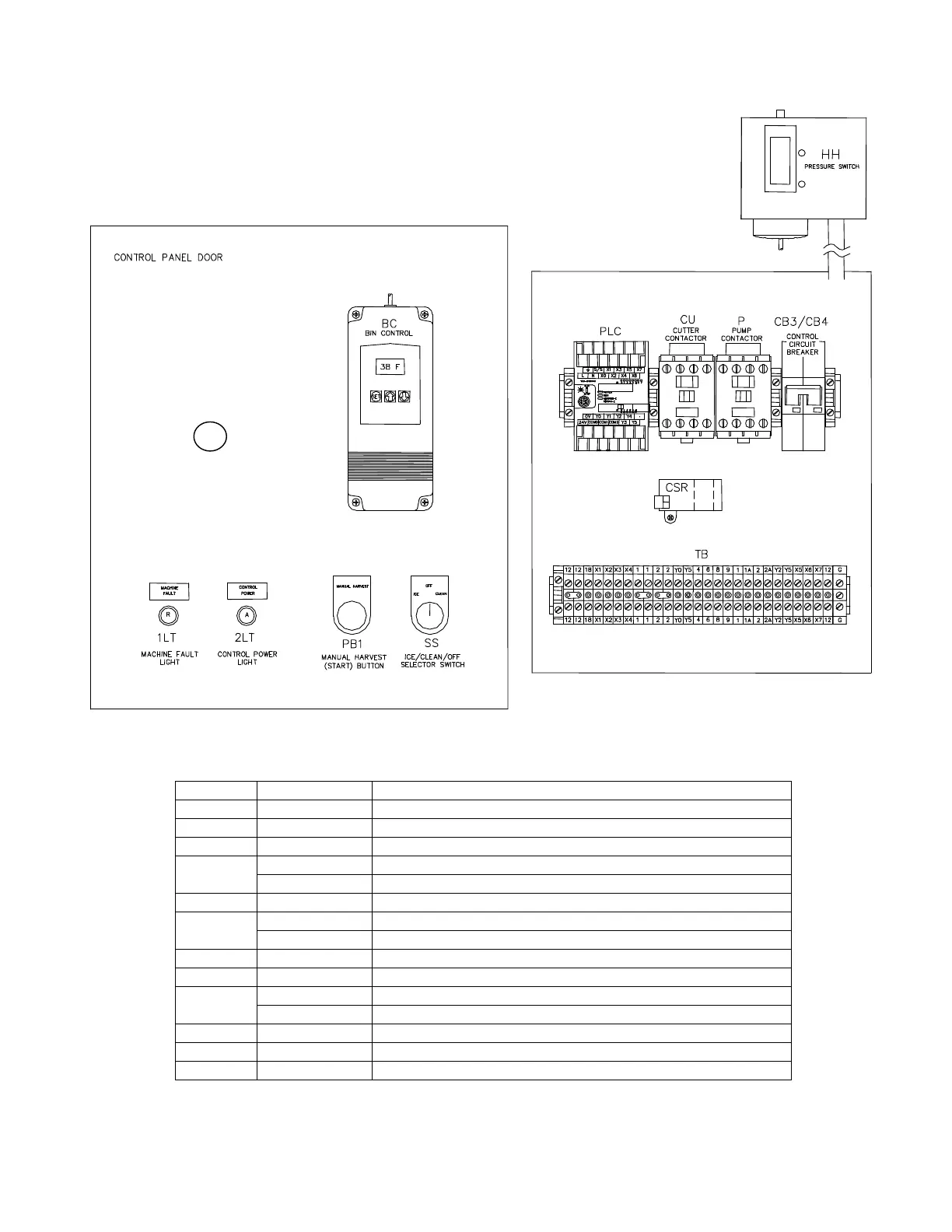

FIGURE 5-7
Lowside Control Panel Layout
MELSEC FX
OS
-
14MR
-
ES
MITSUBISHI
E-STOP
