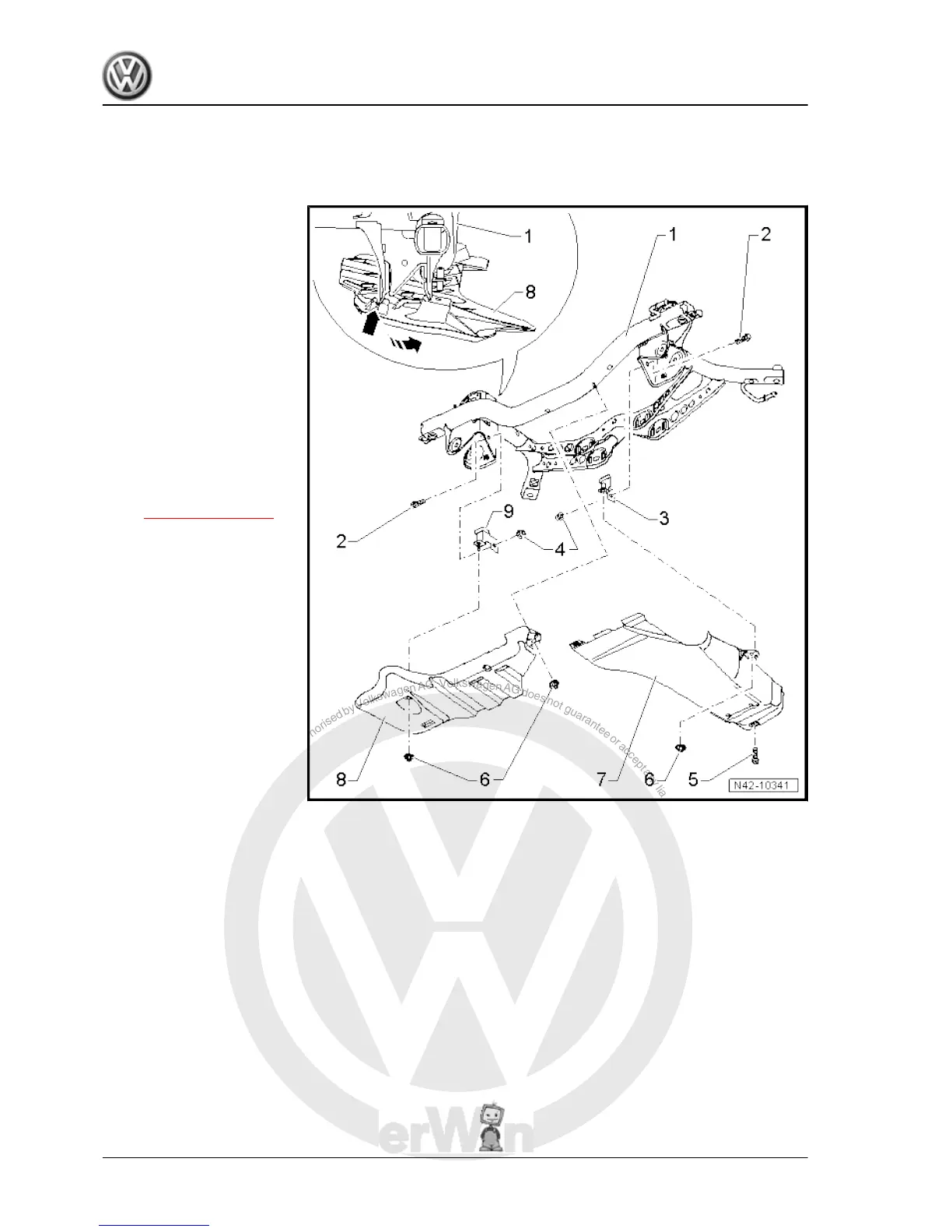

7 Assembly overview - attachment parts for subframe Golf BlueMotion,
Golf Plus BlueMotion (front-wheel drive)
1 - Subframe
2 - Bolt
3 - Angle piece
4 - Nut
❑ 20 Nm
5 - Bolt
6 - Nut
❑ 2 Nm
7 - Left shield
8 - Right shield
Installing
– Hook in shield on sub‐
frame
⇒ Item 1 (page 182)
-arrow-
– Pivot shield in
-direction of arrow- onto
rivet screws and tighten
nuts
9 - Angle piece
❑ With rivet screw
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
182 Rep. Gr.42 - Rear suspension
