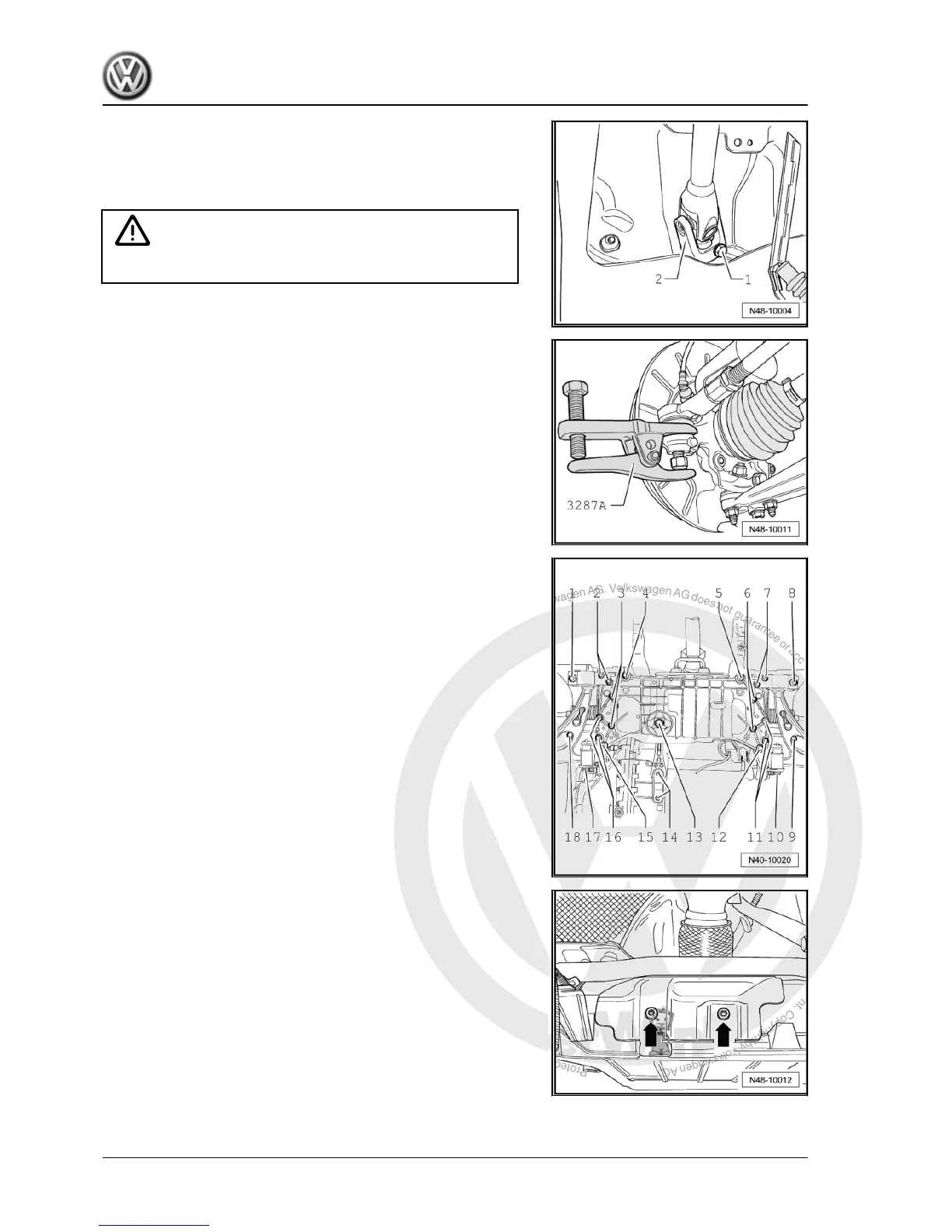

– Remove bolt -1- and pull universal joint -2- off steering box.
– Remove front wheels.
– Loosen nut on track rod ball joint but do not remove complete‐
ly.
Caution
Leave nut screwed a few turns onto pin to protect thread.
– Press track rod ball joint off wheel bearing housing with
-3287A-.
– Remove lower noise insulation ⇒ Rep. Gr. 50 ; Assembly
overview - noise insulation .
– Disconnect pendulum support from gearbox by removing bolts
-14-.
– Remove exhaust system retainer on subframe.
– Remove bolts -arrows- on heat shield.
– Remove heat shield from subframe.
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
386 Rep. Gr.48 - Steering
