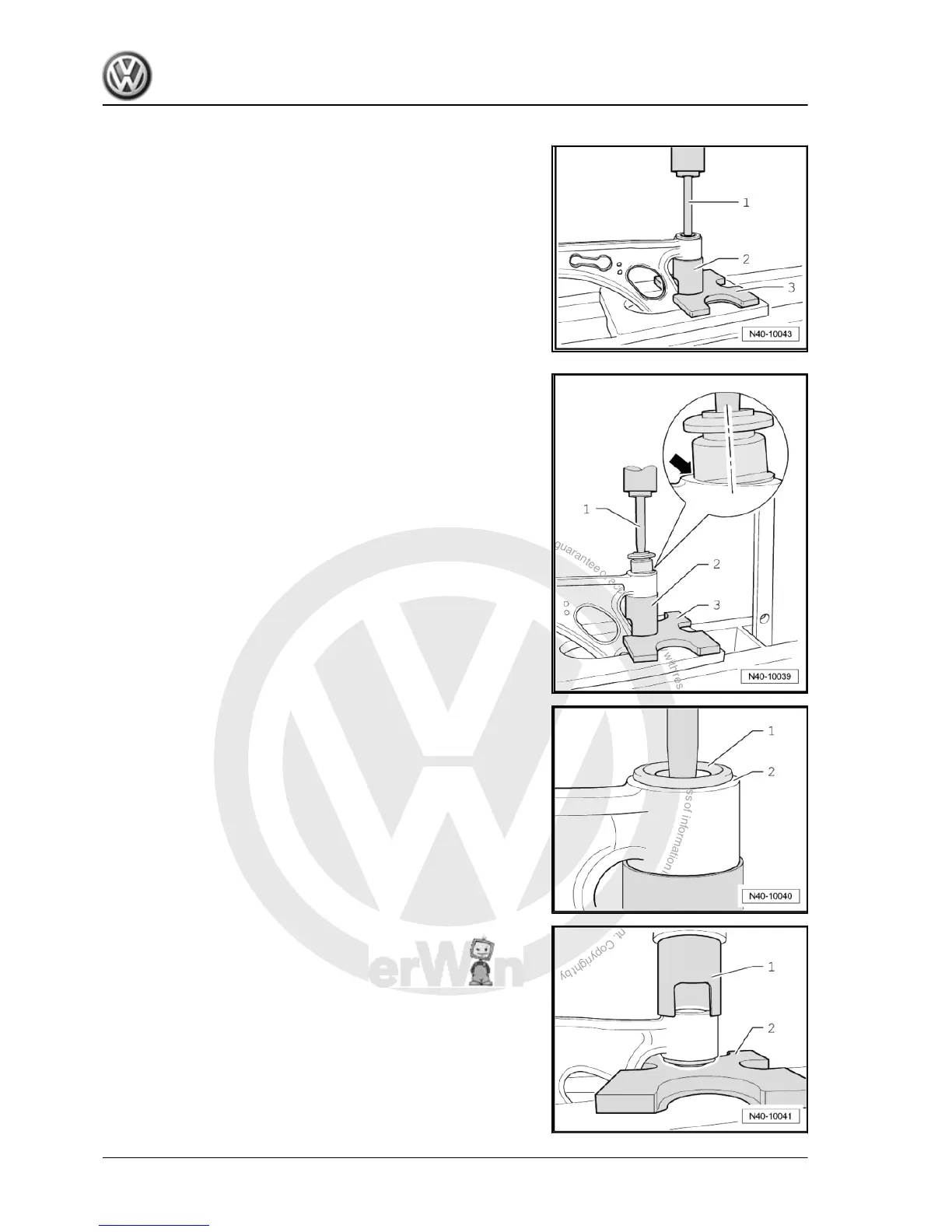

Pressing out bonded rubber bush
– Press out bonded rubber bush as illustrated.
1 - Press tool -VW 411-
2 - Tube -T10219/1-
3 - Thrust plate -VW 402-
Pressing in bonded rubber bush
Apply the bonded rubber bush at an angle to prevent damage
when pressing in. The bonded rubber bush will then straighten up
as it is pressed in.
– Moisten outer surface of bonded rubber bush with assembly
oil -G 294 421 A1- .
– Apply bonded rubber bush at an angle (towards suspension
link). Lip -arrow- must slide into hole as shown.
1 - Drift -T10219/2-
2 - Tube -T10219/1-
3 - Thrust plate -VW 402-
– Press in bonded rubber bush until core of bush -1- and hole in
suspension link -2- are flush.
– Press bush back slightly in the suspension link.
1 - Tube -T10219/1-
2 - Thrust plate -VW 402-
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
48 Rep. Gr.40 - Front suspension
