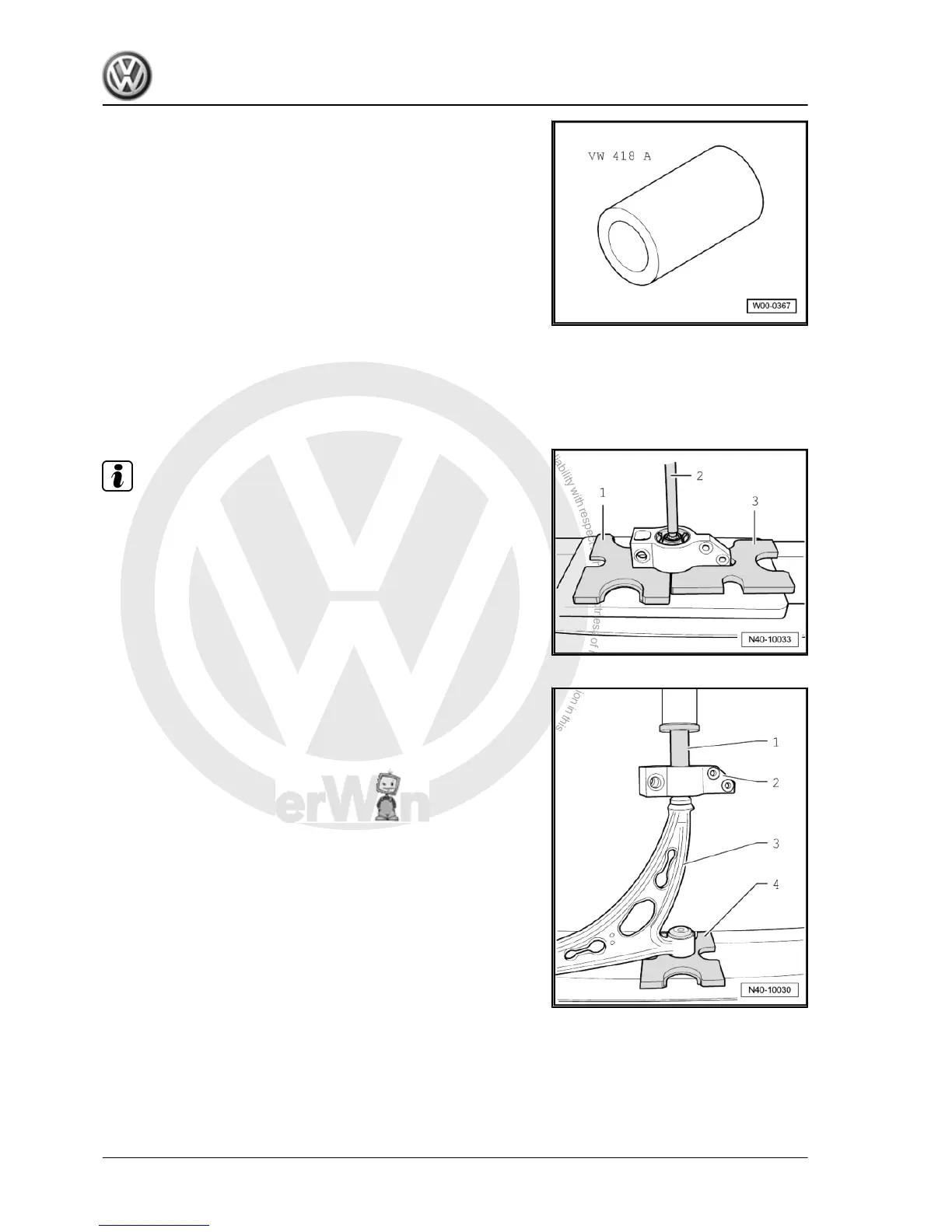

♦ Tube -VW 418 A-
Pressing mounting bracket with bush off suspension link
The bonded rubber bush is available as a replacement part only
in conjunction with the mounting bracket.
– Press mounting bracket with bonded rubber bush off suspen‐
sion link.
Note
Hold suspension link when pressing off.
1 - Thrust plate -VW 401-
2 - Guide -VW 439-
3 - Thrust plate -VW 402-
Pressing in mounting bracket with bush onto suspension link
– Moisten hexagon flats of suspension link with assembly lubri‐
cant -G 294 421 A1- diluted 1:20.
– Carefully press bush onto suspension link to stop.
1 - Tube -VW 418 A-
2 - Bearing bracket with bonded rubber bush.
3 - Suspension link
4 - Thrust plate -VW 401-
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
50 Rep. Gr.40 - Front suspension
