Volkswagen BEETLE-1977 User Manual

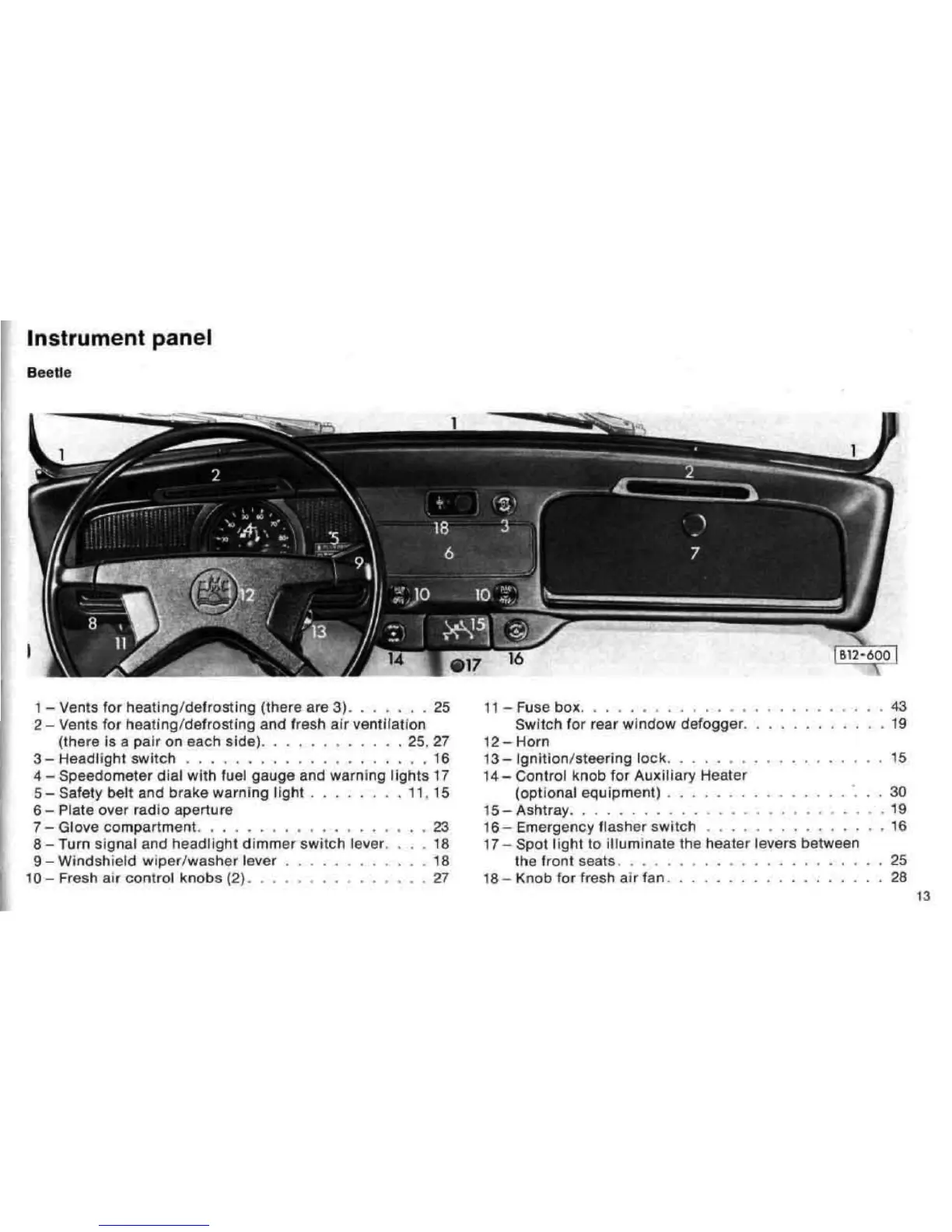

Instrument panel
Beetle
1 - Vents for heating/defrosting (there are 3) 25
2 - Vents for heating/defrosting and fresh air ventilation
(there is a pair on each side) 25. 27
3-Headlight switch 16
4 - Speedometer dial with fuel gauge and warning lights 17
5-Safety belt and brake warning light . ...... .11.15
6- Plate over radio aperture
7-Glove compartment 23
8-Turn signal and headlight dimmer switch lever. ... 18
9-Windshield wiper/washer lever 18
10-Fresh air control knobs (2) 27
11 - Fuse box 43
Switch for rear window defogger 19
12-Horn
13- Ignition/steering lock 15
14- Control knob for Auxiliary Heater
(optional equipment) "... 30
15-Ashtray 19
16-Emergency flasher switch 16
17- Spot light to illuminate the heater levers between
the front seats 25
18-Knob tor fresh air fan 28
13
