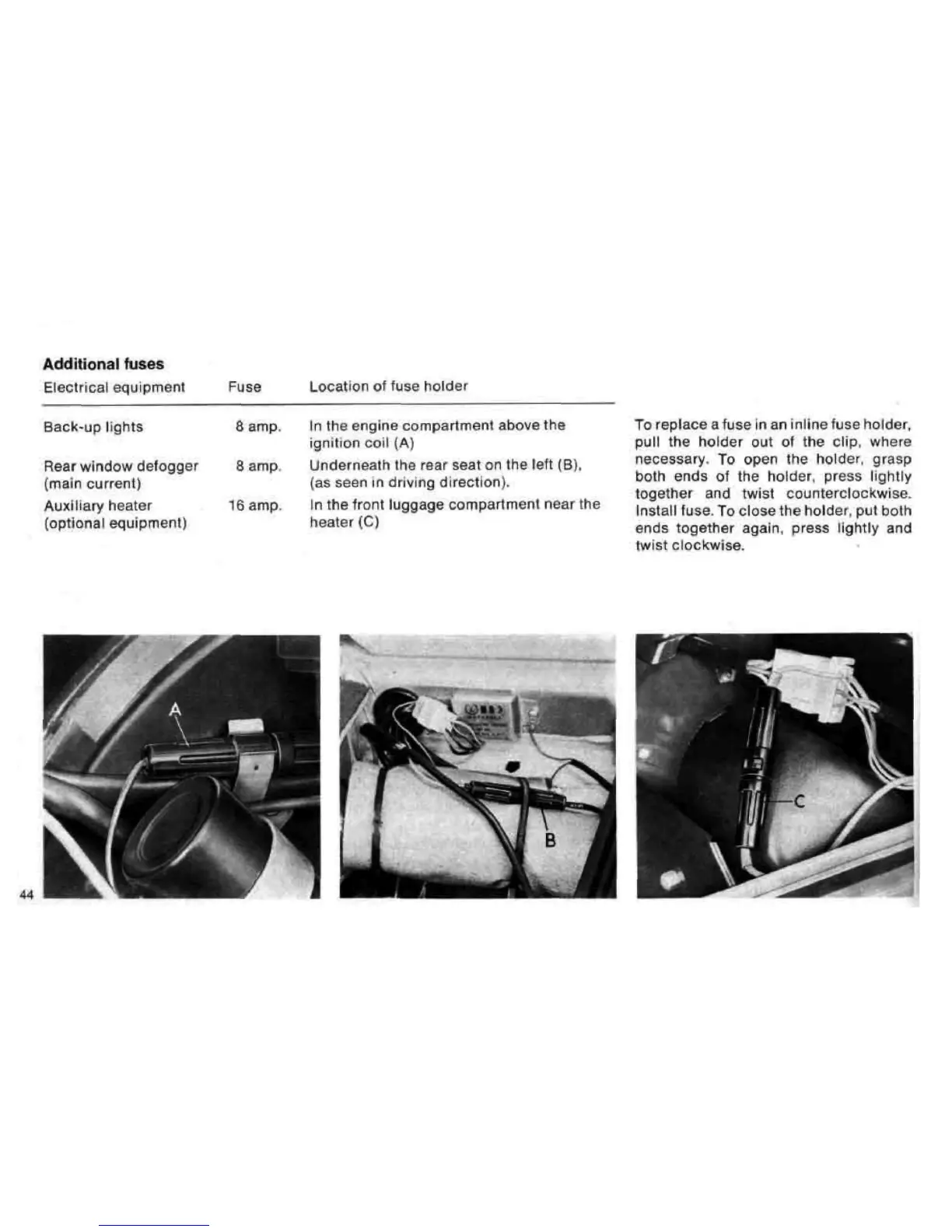

Additional fuses
Electrical equipment
Fuse
Location of fuse holder
Back-up lights 8 amp.
Rear window defogger 8
amp
(main current)
Auxiliary heater
16amp.
(optional equipment)
In the engine compartment above the
ignition coil (A)
Underneath the rear seat on the left (B),
(as seen
in
driving direction).
In the front luggage compartment near the
heater (C)
To replace a fuse in an inline fuse holder,
pull the holder out of the clip, where
necessary, To open the holder, grasp
both ends of the holder, press
lightly
together and twist counterclockwise.
Install
(use.
To close the holder, put both
ends together again, press lightly and
twist clockwise.
