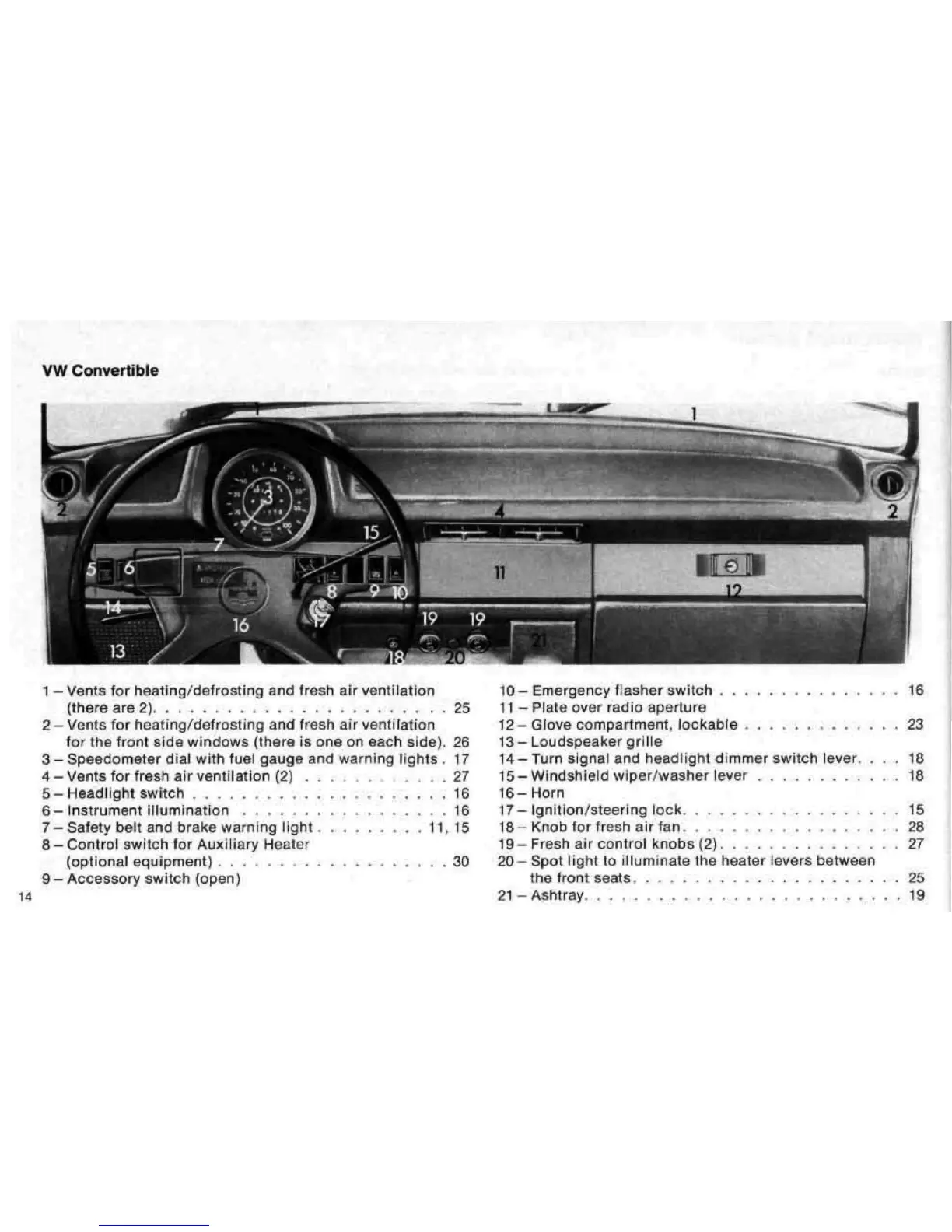

VW Convertible
1 - Vents for heating/defrosting and fresh air ventilation
(there are 2) 25
2 - Vents for heating/defrosting and fresh air ventilation
for the front side windows (there is one on each side). 26
3- Speedometer dial with fuel gauge and warning lights . 17
4-Vents
for fresh air ventilation (2) ............ 27
5- Headlight switch 16
6-Instrument
illumination 16
7-Safety
belt and brake warning light
11.15
8-Control
switch for Auxiliary Heater
(optional equipment) 30
9- Accessory switch (open)
!-•
10-Emergency
flasher switch 16
11
- Plate over radio aperture
12—Glove
compartment, lockable - 23
13-
Loudspeaker grille
14 —Turn
signal and headlight dimmer switch lever. ... 18
15-Windshield
wiper/washer lever 18
16-Horn
17-Ignition/steering
lock 15
18-Knob
for fresh air fan 28
19-Fresh
air control knobs (2) 27
20 - Spot light to illuminate the heater levers between
the
front
seats 25
