3.2.2 Lifting points for lifting platform and
trolley jack
NOTICE
If the support plates or lifting arms of the lifting platform are
improperly seated the surrounding parts of the vehicle may be
damaged.
Screw support plates of the lifting platform out far enough to
ensure sufficient clearance between lifting arm and side mem‐
ber. Use only the side member reinforcement as a support
point for the support plates of the lifting platform.
Ensure that side member reinforcement seats centrally on
support plate of hoist mounting.

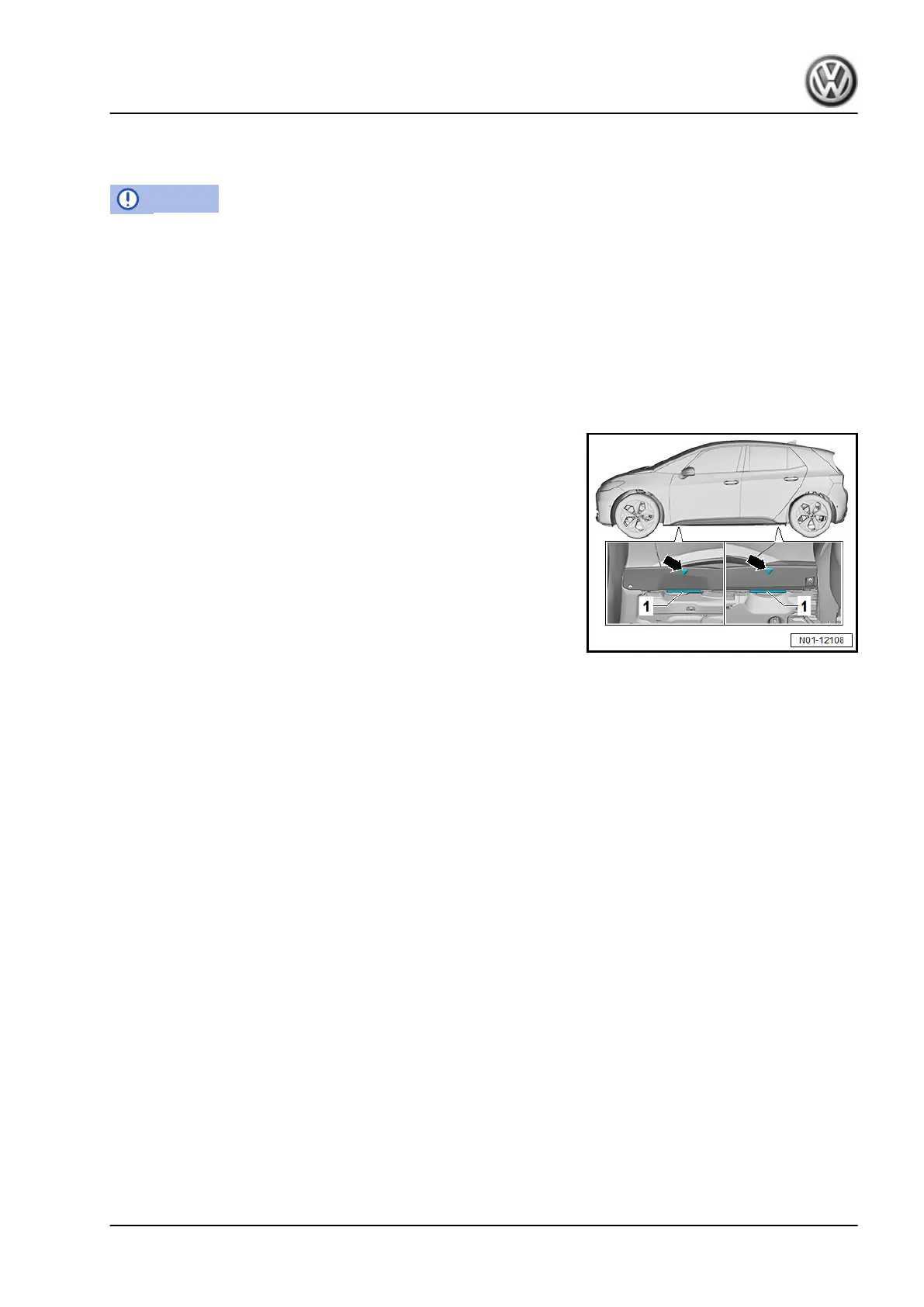

Front and rear mounting point
– Position mounting plate in area of side member marking
-arrow- at vertical reinforcement -1- of floor panel.
3.3 Entries in service schedule
If a component is changed which has a change interval prescri‐
bed by the manufacturer, e.g. the toothed belt, the new change
interval begins at the time the component is changed.
• Therefore it is very important, every time a component is
changed, to document this in the service schedule.
• This also applies to components which were changed before
the regular change interval.
3.4 Severe operating conditions
If the vehicle is used under severe operating conditions some
work will have to be performed before the next service is due or
at shorter service intervals.
• Vehicle is used in areas with winter temperatures over a
long period
• Vehicle is often driven at full throttle with high payload or
whilst towing a trailer
• Regular operation in areas with high levels of dust
• Countries with generally poor road conditions such as high
number of potholes, protrusions, high elevations in the road/
deep “tramlines”.
• High number of gravel roads with poor surface quality,
such as irregularities/bumps, elevations, protruding stones,
waves.
ID.4 2021 ➤
Maintenance - Edition 12.2020
3. General information 9
