7.1 Removing
Note
♦ Make parting cuts with pneumatic jig-saw -V.A.G 1523- only.
♦ Do not damage internal reinforcements.

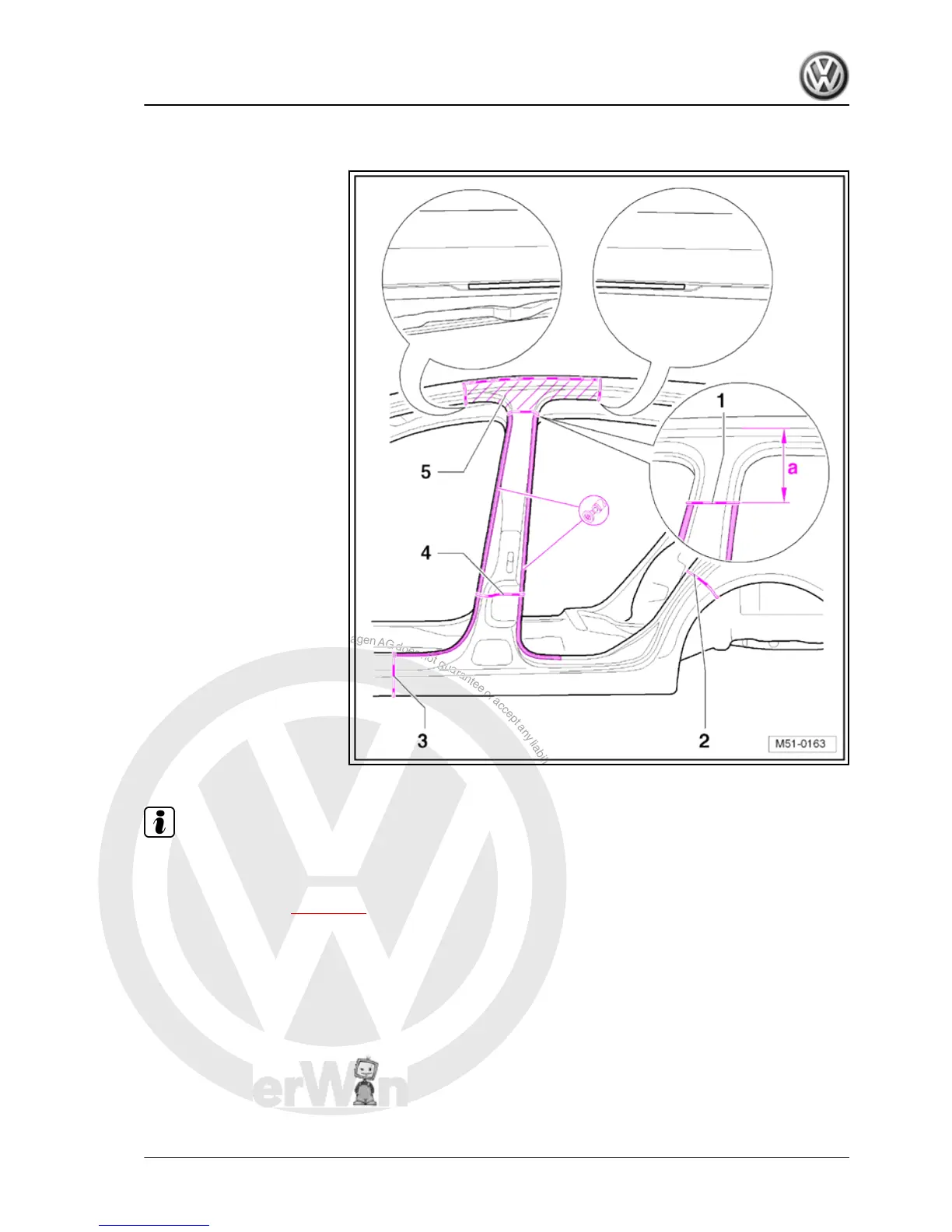

♦ Note cut line figure ⇒ page 123 .
♦ If the B-pillar reinforcement also needs to be replaced, the front part of the side member (parting cut -3-,
430 mm from the front edge of the side member) and the area -5- must be cut out at the same time.
♦ When doing this do not damage original joint to roof.
– Make parting cut -1- as shown.
Dimension -a- = 100 mm
– When making parting cut -2-, keep cutting/overlap of replace‐
ment part in mind.
– Make parting cut -3- on side member according to damage.
– Release original joint.
